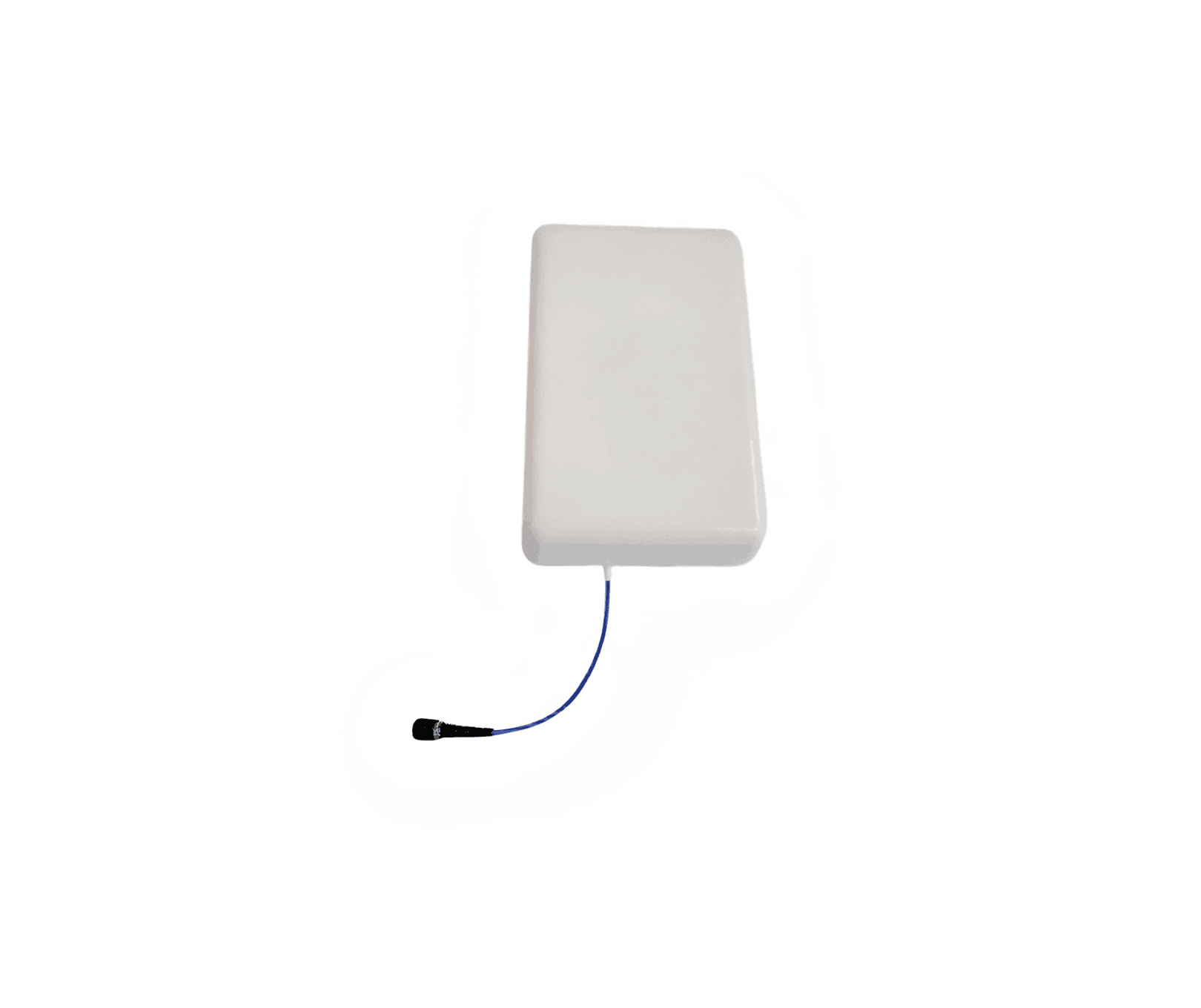

Ultra-wideband Indoor Panel SISO Antenna
Vertical Polarization
Cover 2G/3G/LTE band
High power handling
Compact, light-weight and easy to install
Indoor distributed antennas are mainly used in passive DAS systems or hybrid DAS systems to evenly radiate downlink signals in a certain area and simultaneously transmit uplink signals back to the receiver. Through different radiation designs such as omnidirectional, directional, and bidirectional, it can be applied to signal coverage applications in various scenarios.
| Frequency | 380 - 2700 MHz |
| Gain | 3 dBi for low band |
| 7 dBi for high band | |
| Vertical Beamwidth | 50° for low band |
| 60° for high band | |
| Horizontal Beamwidth | 150° for low band |
| 75° for high band | |
| Polarization | Vertical |
| VSWR | ≤2.5 |
| Power Handling | 50 W |
| Intermodulation (3rd order) | ≤-153 dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | 308 × 190 × 65 (mm) |
| Weight | 0.6 kg |
| Connectors Type | 4.3-10 female |
| Packing | 1Pcs in box |
