Excellent gain value for good coverage
Low VSWR
Low PIM, high reliability
High power handling
Compact design for easy installation
Customized connector is available

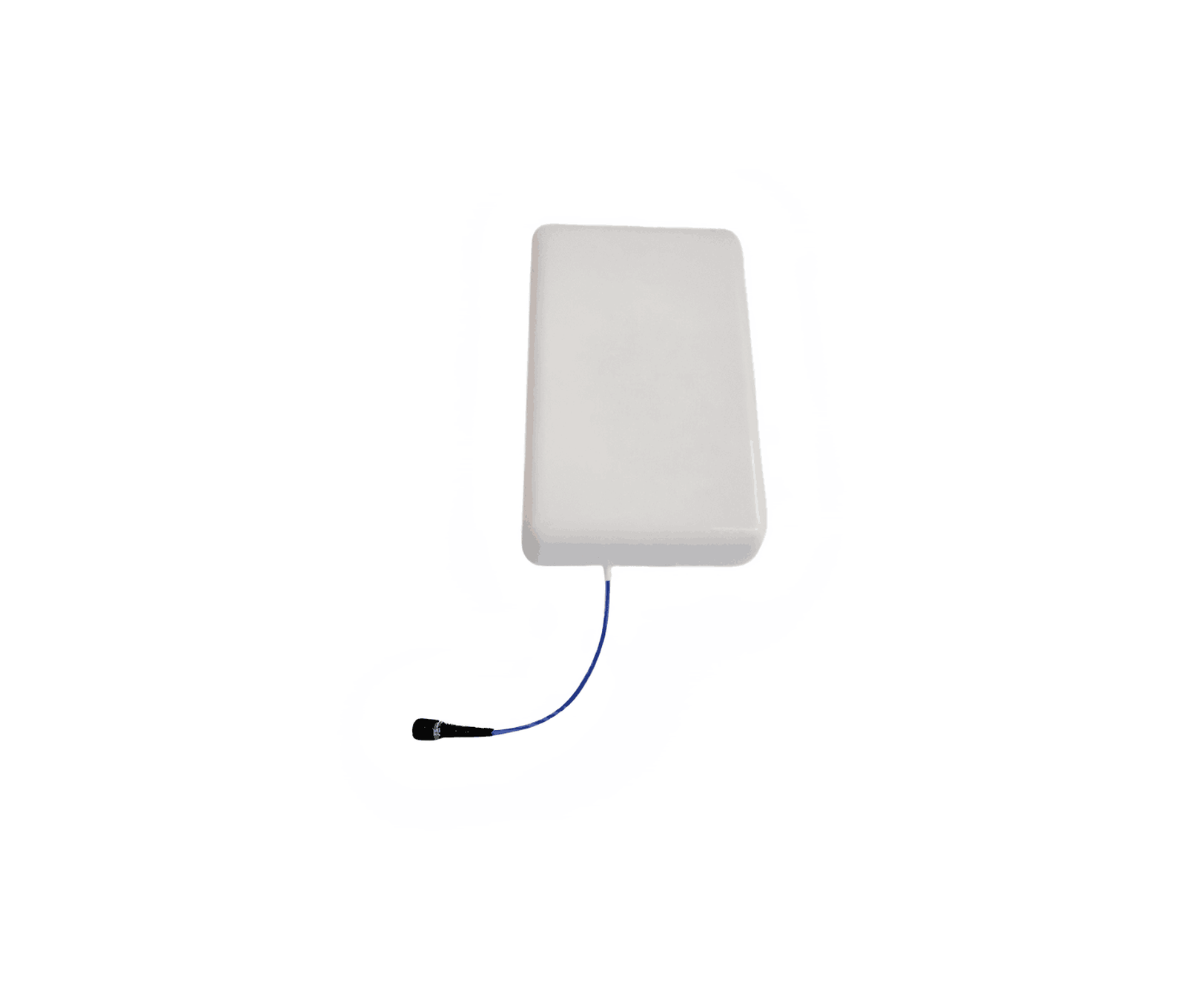

Indoor distributed antennas are mainly used in passive DAS systems or hybrid DAS systems to evenly radiate downlink signals in a certain area and simultaneously transmit uplink signals back to the receiver. Through different radiation designs such as omnidirectional, directional, and bidirectional, it can be applied to signal coverage applications in various scenarios.
| Frequency | 698 -4200 MHz |
| Gain | 5.5 dBi for low band |
| 7.0 dBi for middle band | |
| 6.0 dBi for high band | |
| Vertical Beamwidth | 65° for low band |
| 65° for middle band | |
| 35° for high band | |
| Horizontal Beamwidth | 90° for low band |
| 75° for middle band | |
| 55° for high band | |
| Polarization | Vertical |
| VSWR | ≤2.5 for low band |
| ≤2.0 for middle band | |
| ≤2.0 for high band | |
| Power Handling | 50 W |
| Intermodulation (3rd order) | ≤-153 dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | 308x190x65 (mm) |
| Weight | 0.6 kg |
| Connectors Type | 4.3-10 female |
| Packing | 1Pcs in box |
