Support 5G technology, 2x2 MIMO, 400MHz bandwidth
Modular design, hot swappable, easy installation
Independent gain control and filtering for each channel
Low-noise and high reliability
Broad frequency range
Natural heat dissipation
2 channels individual to support MIMO for same band

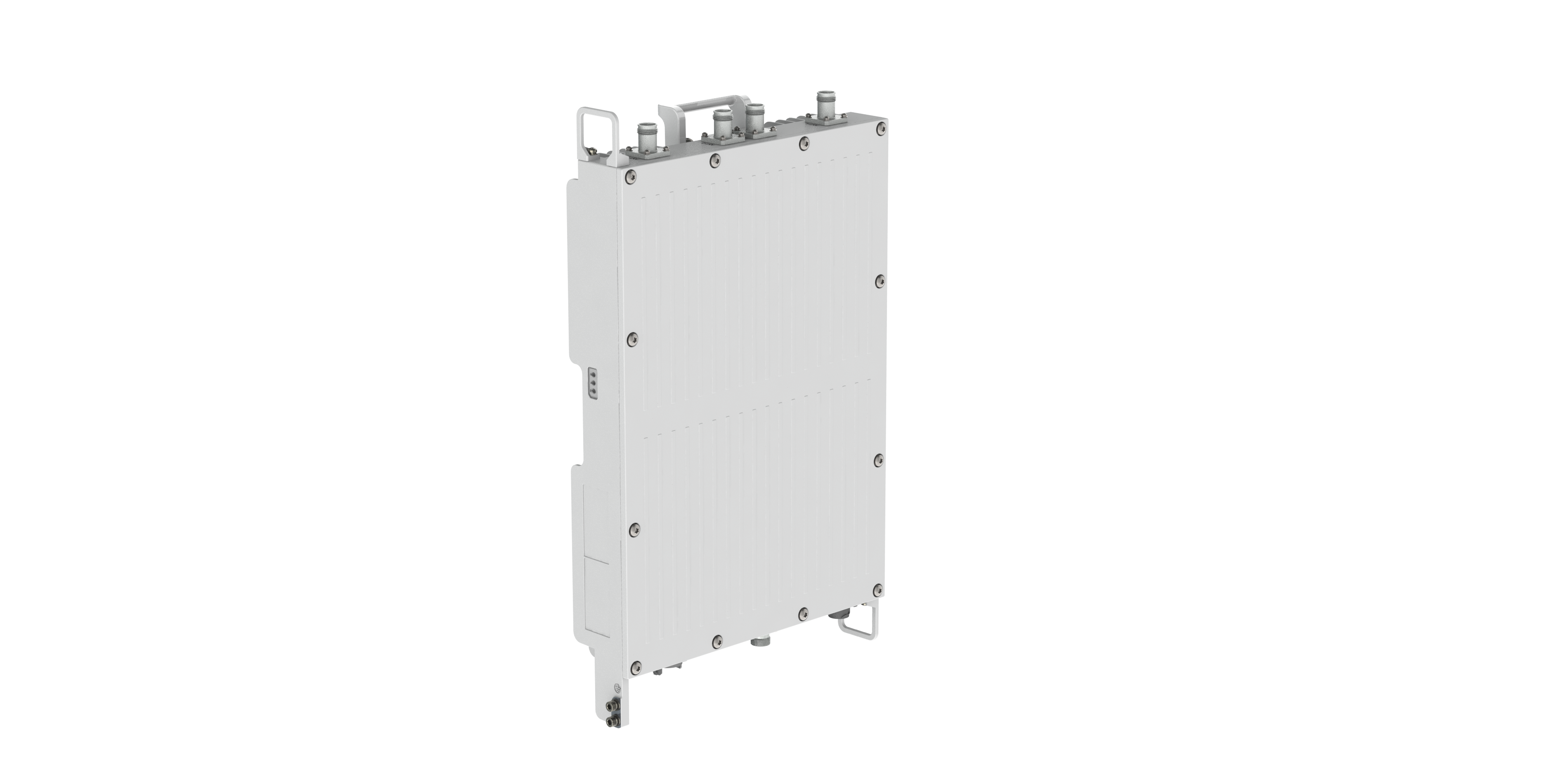

N78, 40W, 2T2R, 3400-3800MHz, modular design
| Uplink | Downlink | ||
| Frequency Range | n78 (2x2 MIMO) | 3400 - 3800 MHz | 3400 - 3800 MHz |
| Gain | 58 ± 2 dB | 58 ± 2 dB | |
| RF Output Power | -5 ± 2 dBm | 46 ± 1 dBm | |
| Operating Temperature Range | -40ºC to +55ºC |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 98% |
|
Ingress Protection |
IP67 |
| Monitoring and Control | PC via RS485 |
| Power Connector | 1 x integrated socket with power supply and communication pins | |
| RF Connectors Type (Output to ANT) |
4 x 4.3-10 female (ANT1: SISO_L; ANT2: MIMO_L; ANT3: SISO_H; ANT4: MIMO H)* |
|
| RF Connectors Type (Input from MCU) | 1 x L32 | |
| Installation | Wall/Pole | |
