Support LTE technology
Modular design, hot swappable, easy installation
Independent gain control and filtering for each channel
Low-noise and high reliability
Broad frequency range
Natural heat dissipation
2 channels individual to support MIMO for same band

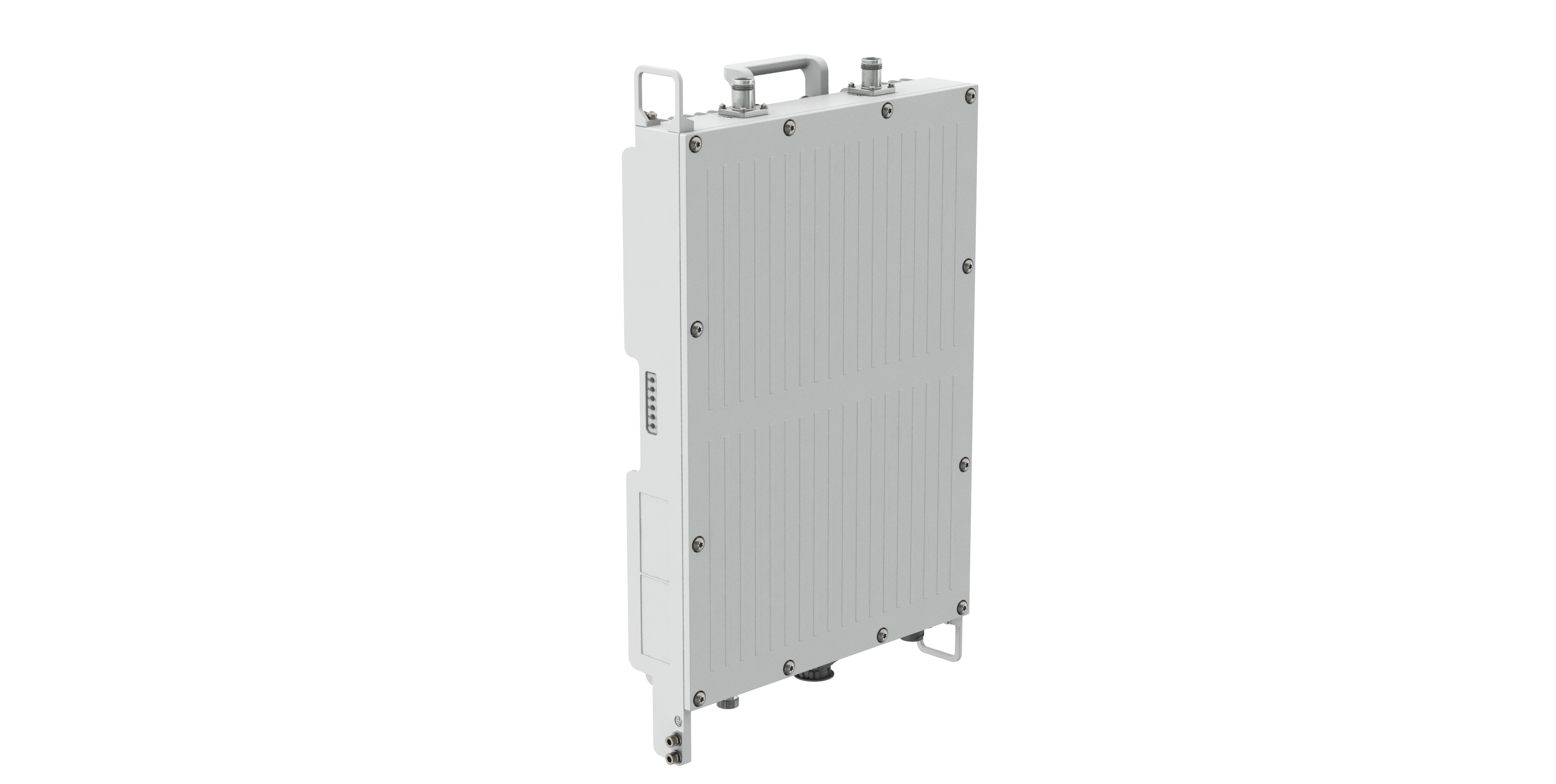

Band 7, 20W, 2T2R, modular design
| Uplink | Downlink | ||
| Frequency Range | Band 7 | 2500 - 2570MHz | 2620 - 2690 MHz |
| Gain | 55 ± 2 dB | 55 ± 2 dB | |
| RF Output Power | -5 ± 1 dBm | 43± 1 dBm | |
| Operating Temperature Range | -40ºC to +55ºC |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 98% |
| Applications | IP67 |
| Local Control | Type C |
| RF Connectors Type | 2 x 4.3-10 female (Output to antenna) 1 x L32 (Input from MCU4) |
|
| Power Connector | 1 x integrated socket with power supply and communication pins | |
| Debug Connectors | 2 x USB Type C | |
| Installation | Wall/Pole | |

Band 1/3, 20W, 2T2R, modular design
.png)
Low Noise and High-power Amplifier Unit
-OUTLINE-DRAWING-1_495x300.png)
Main Control Unit
.png)
Band 8, 20W, 2T2R, modular design
