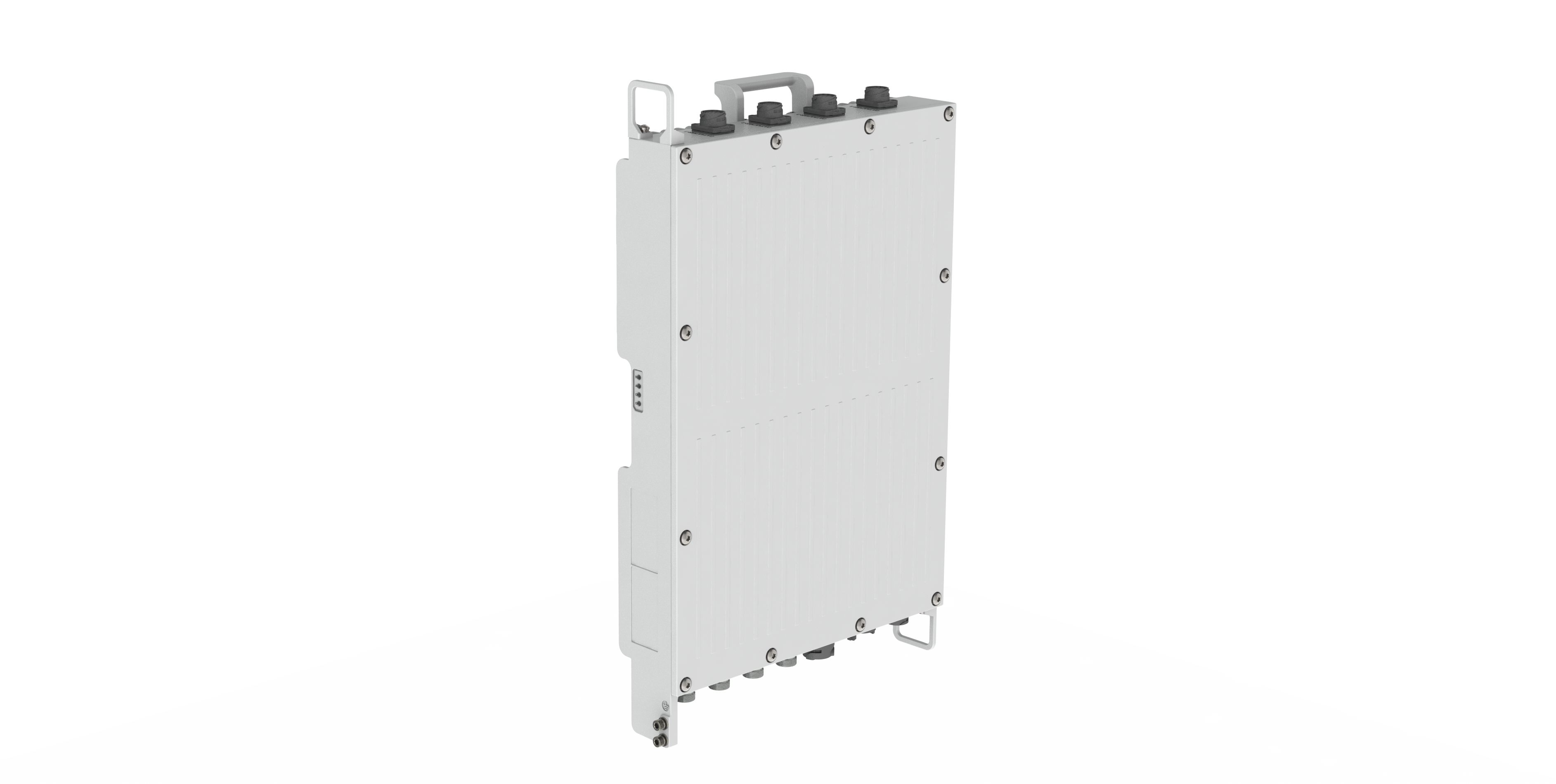

Support 2x2 MIMO and up to 4*4G LPAs connection
Full remote-control of fiber optical repeaters
Easy for cable connection with L32 connector
Support GUI for parameter setting, status monitoring, firmware downloading, alarm indicating and other management operation
2T2R, 698-2700MHz, Sub-3G only, support up to 4 LPAs
| Uplink | Downlink | ||
| Frequency Range | 698 - 2700 MHz | 698 - 2700 MHz | |
| Typical Gain | -5 ± 2 dB | -5 ± 2 dB | |
| Operating Temperature Range | -40°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 98% |
|
Ingress Protection |
IP67 |
| Local Control | PC via LAN |
| Optical Connectors | 2 x SC/APC | |
| RF Connectors | 4 x L32 (Output to LPA) | |
| Power Connector (Output Power Supply to LPA) | 4 x integrated socket with power supply and communication pins (4*28V) | |
| Installation | Wall/Pole | |

Band 1/3, 20W, 2T2R, modular design
.png)
Low Noise and High-power Amplifier Unit
.png)
Low Noise and High-power Amplifier Unit
.png)
Band 8, 20W, 2T2R, modular design
