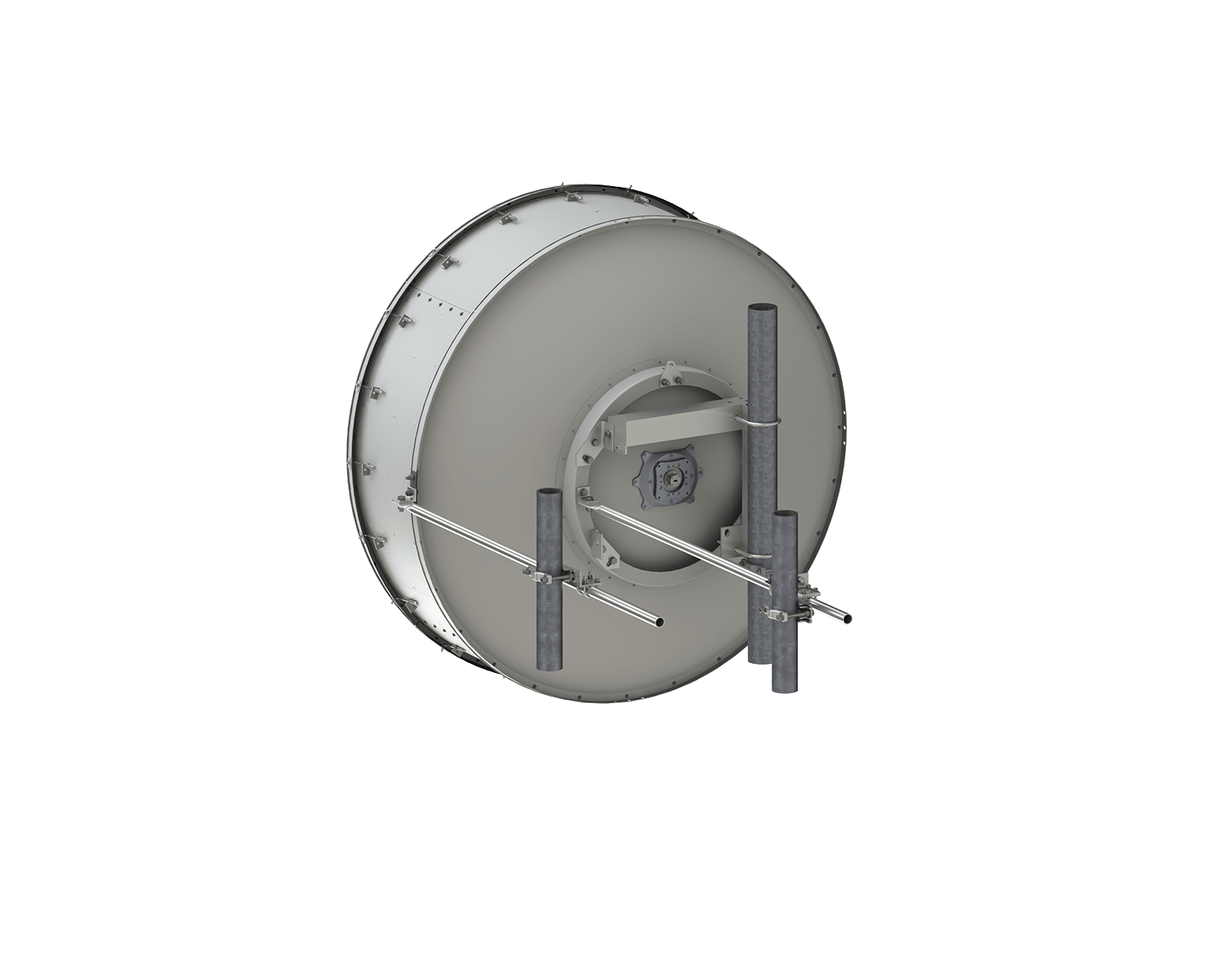

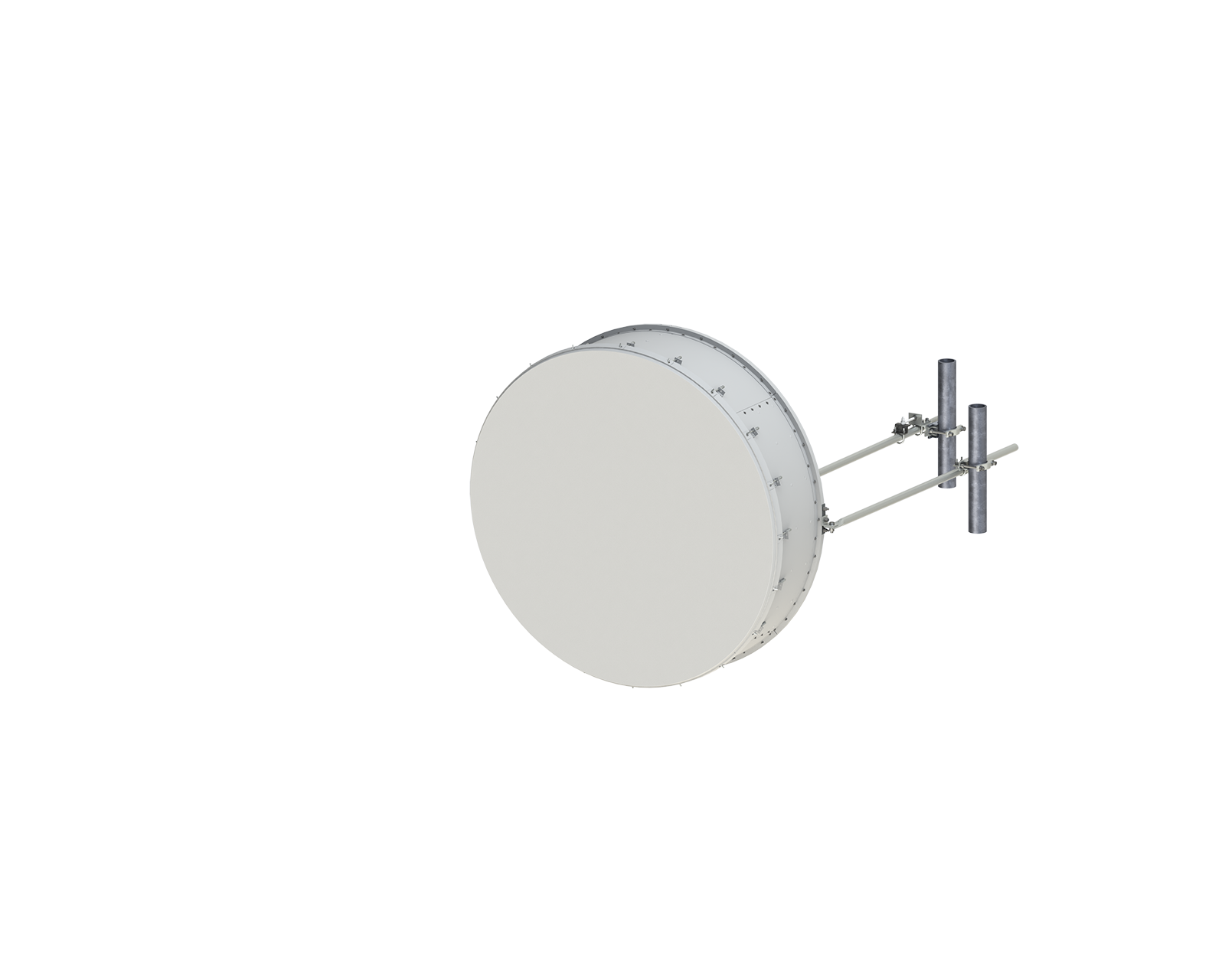

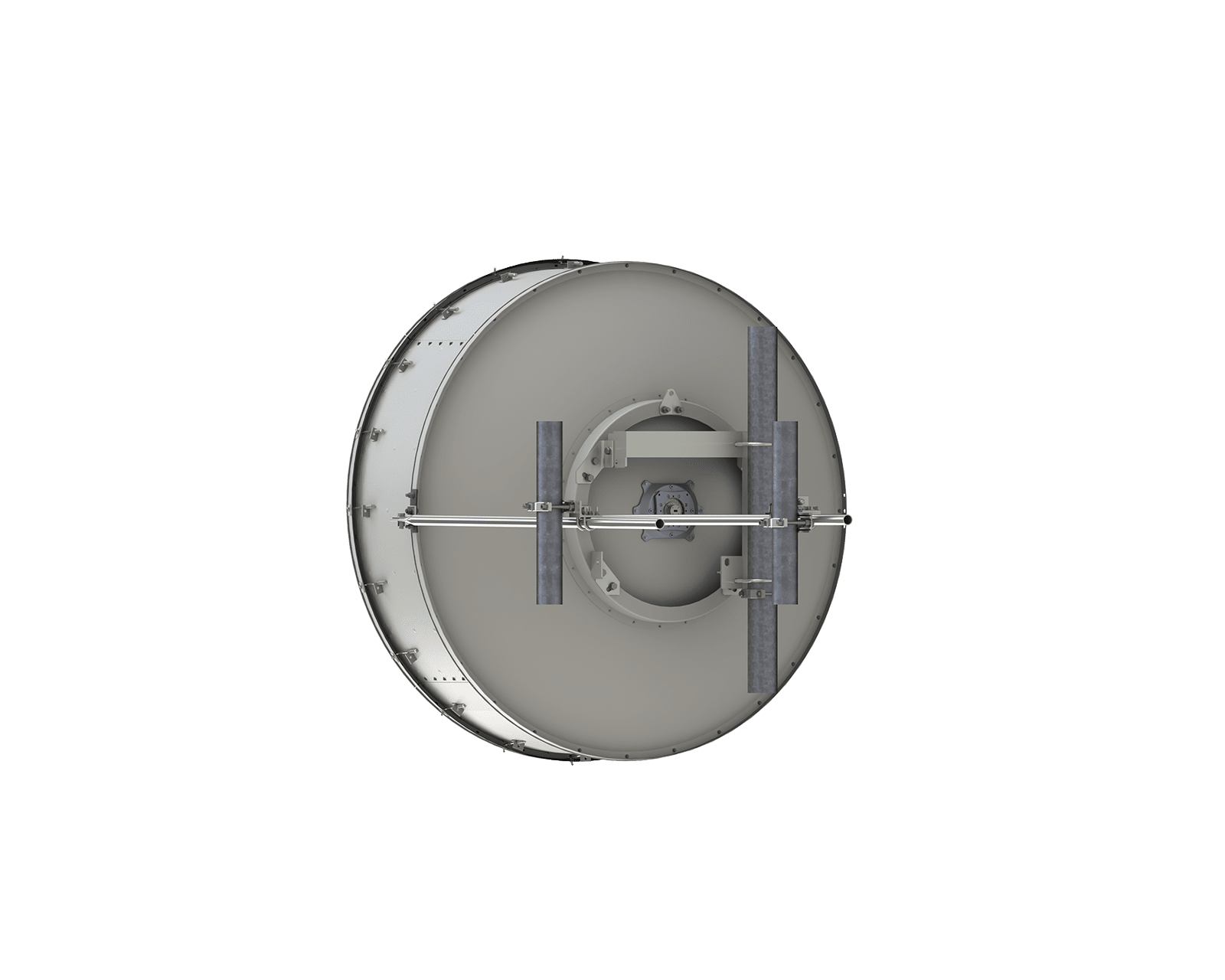

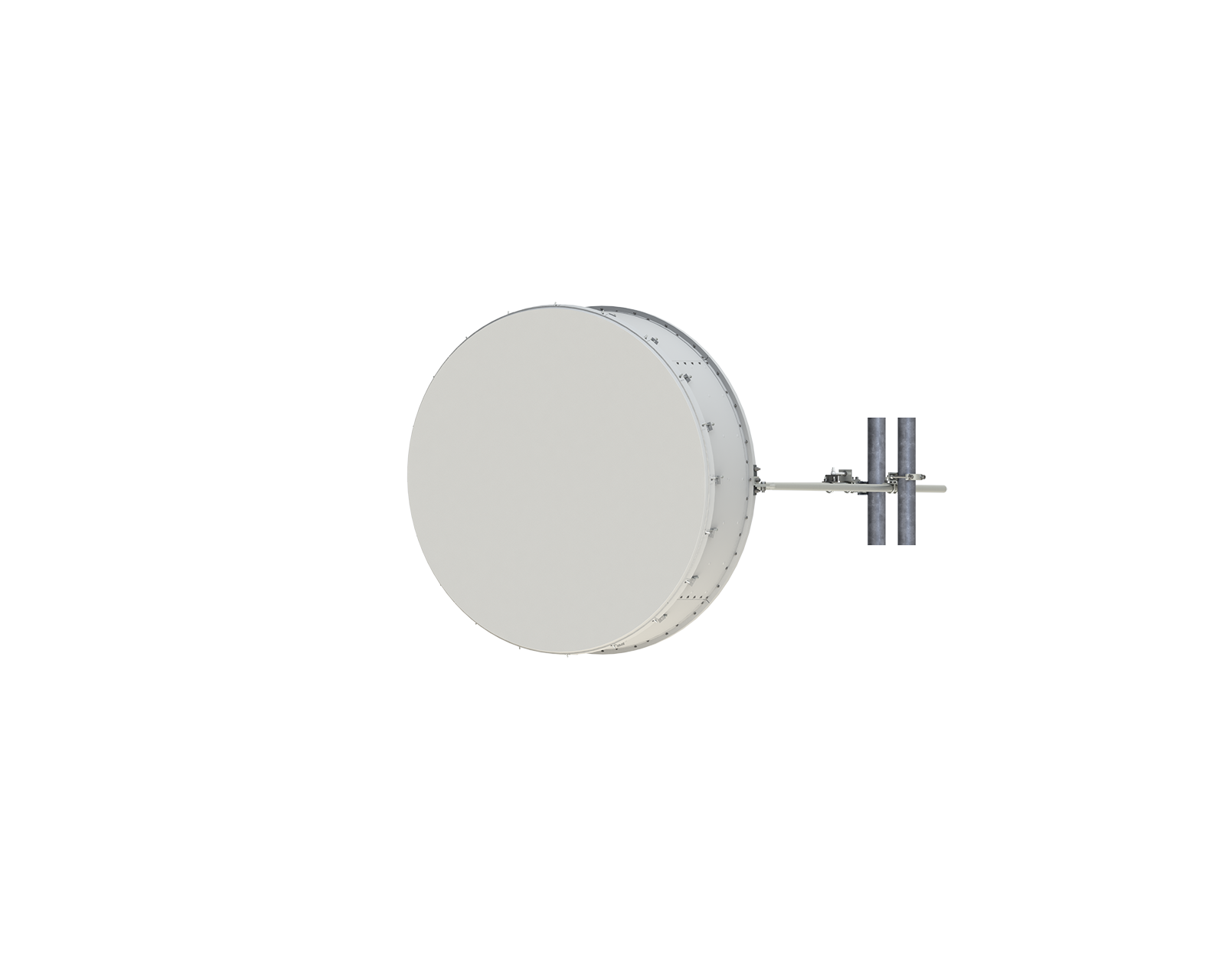

6ft | 1.8m High Performance Microwave Antenna
Single polarized
10.000 – 11.700 GHz
Custom/Standard flange
White antenna, grey radome
1.8m High Performance Microwave Antenna
| Operating Frequency | 10.00-11.70 GHz |
| Gain, Low Band | 42.9 dBi |
| Gain, Mid Band | 43.7 dBi |
| Gain, High Band | 44.5 dBi |
| 3dB BW (Azimuth & Elevation) | 1.0 deg |
| VSWR (Return Loss) | 1.30 (-17.7 dB) |
| F/B Ratio | 70 dB |
| XPD | 30 dB |
| Polarization | Single-polarized |
| Regulatory Compliance | ETSI 302 217 R1 Class3 US FCC Part 101A @ 10.55- 10.7GHz | US FCC Part 101A @ 10.7-11.7GHz |
| Radiation Pattern Envelope Number | RPE18-10W |
| Operating Temperature Range | -55°C to +70°C |
| Storage Temperature Range | -55°C to +70°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±5° |
| Elevation Adjustment Range | ±5° |
| Packed Dimension, Length | 2010mm | 79.13in |
| Packed Dimension, Width | 540mm | 21.26in |
| Packed Dimension, Height | 2160mm | 85.04in |
| Net Weight | 72 kg | 158.7 lb |
| Pole Diameter | 120 mm | 5 in |
| Side Struts, Included | 2 |
| Axial Force (FA) | 10810 N | 2430 lbf |
| Side Force (FS) | 3335 N | 750 lbf |
| Twisting Moment (MT) | 5804 N.M | 4281 lbft |
| Angle α for MT Max | -10° |
