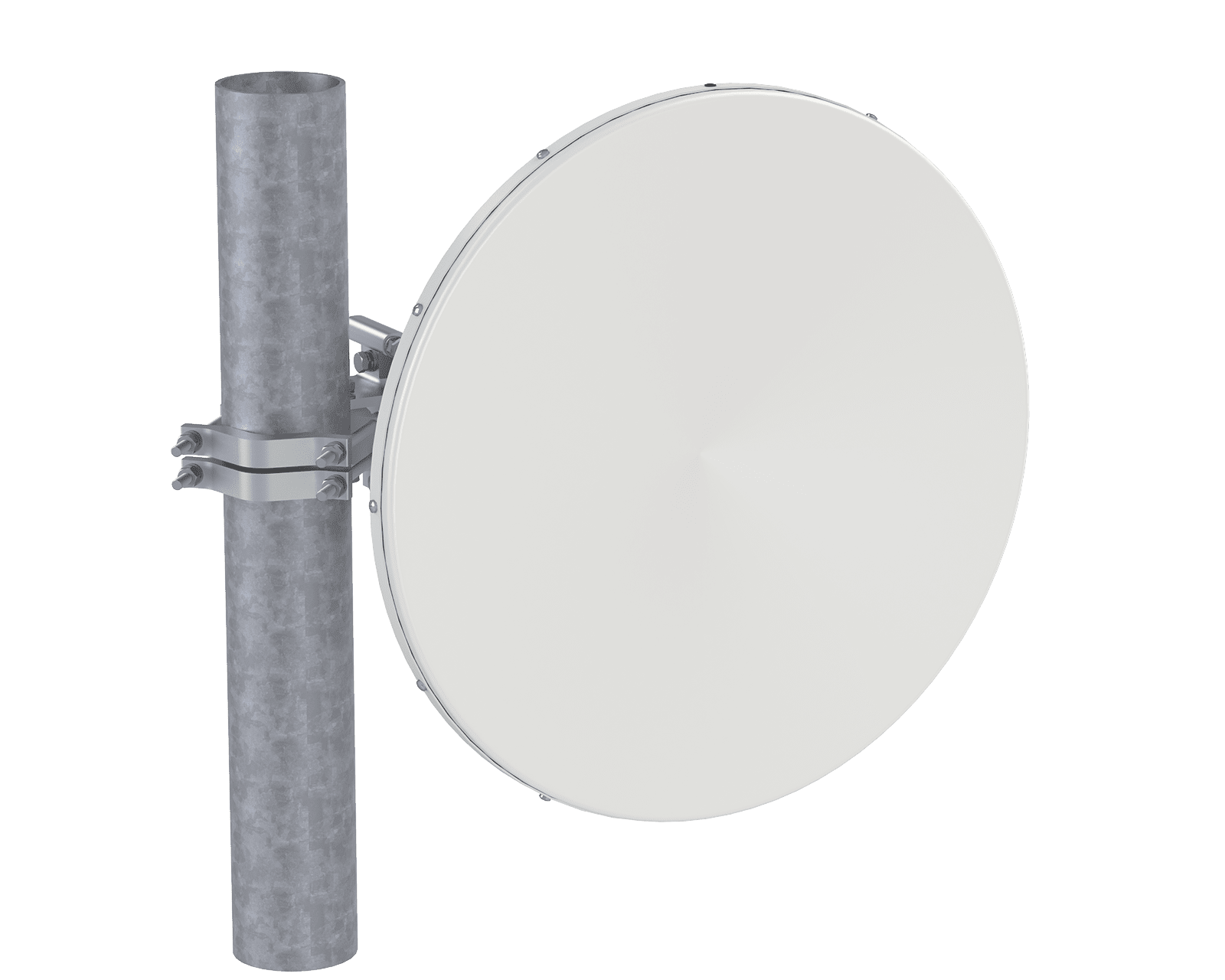

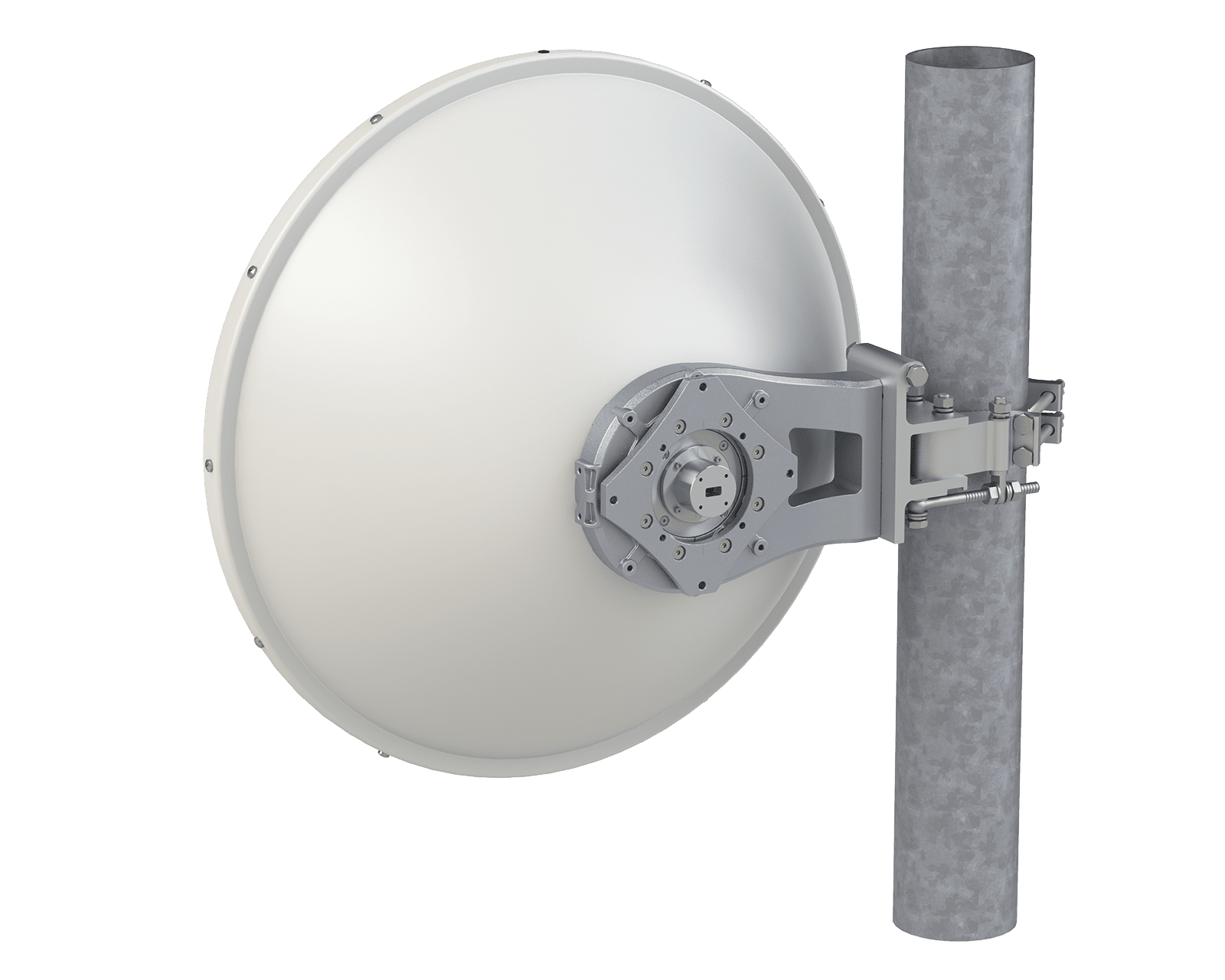

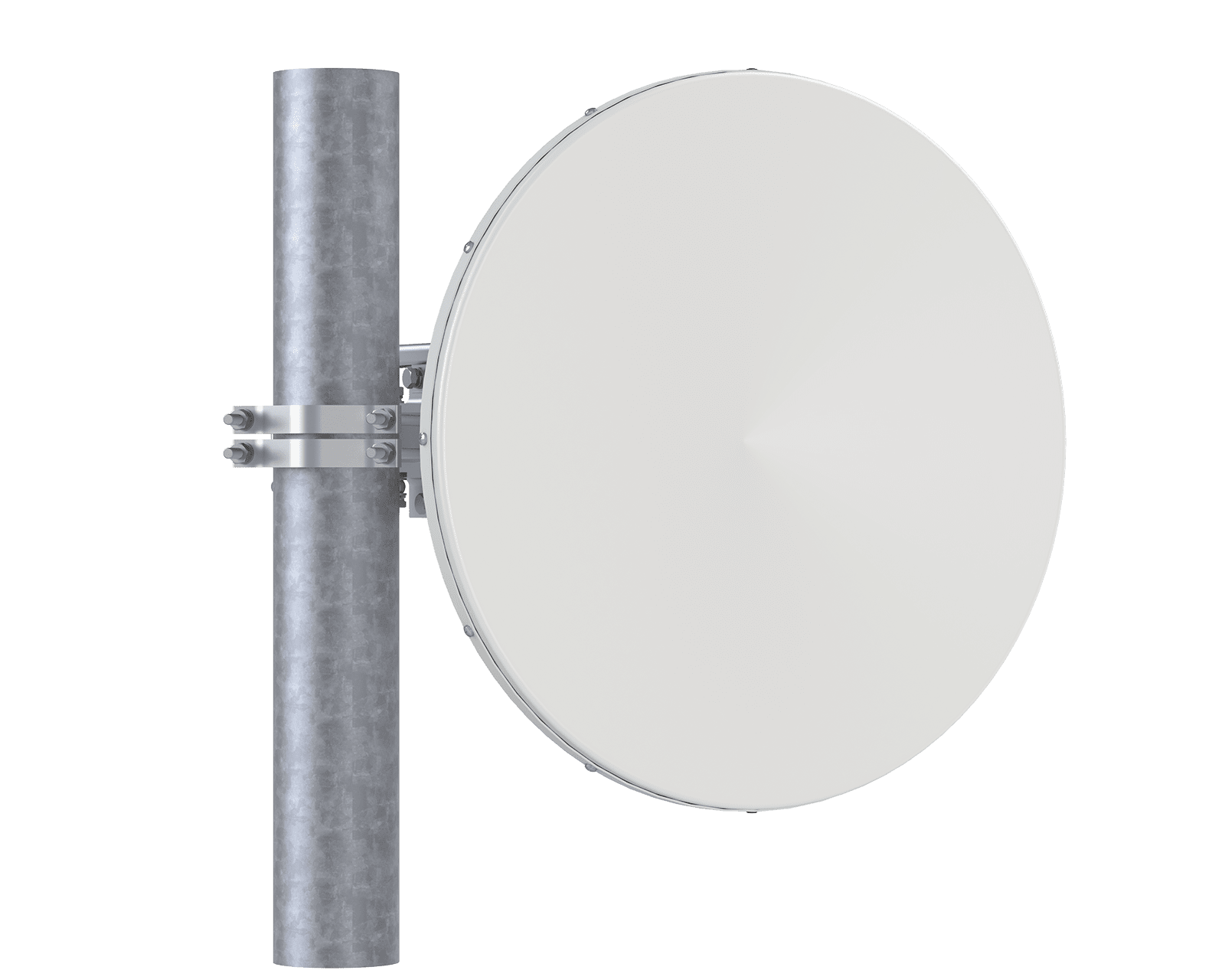

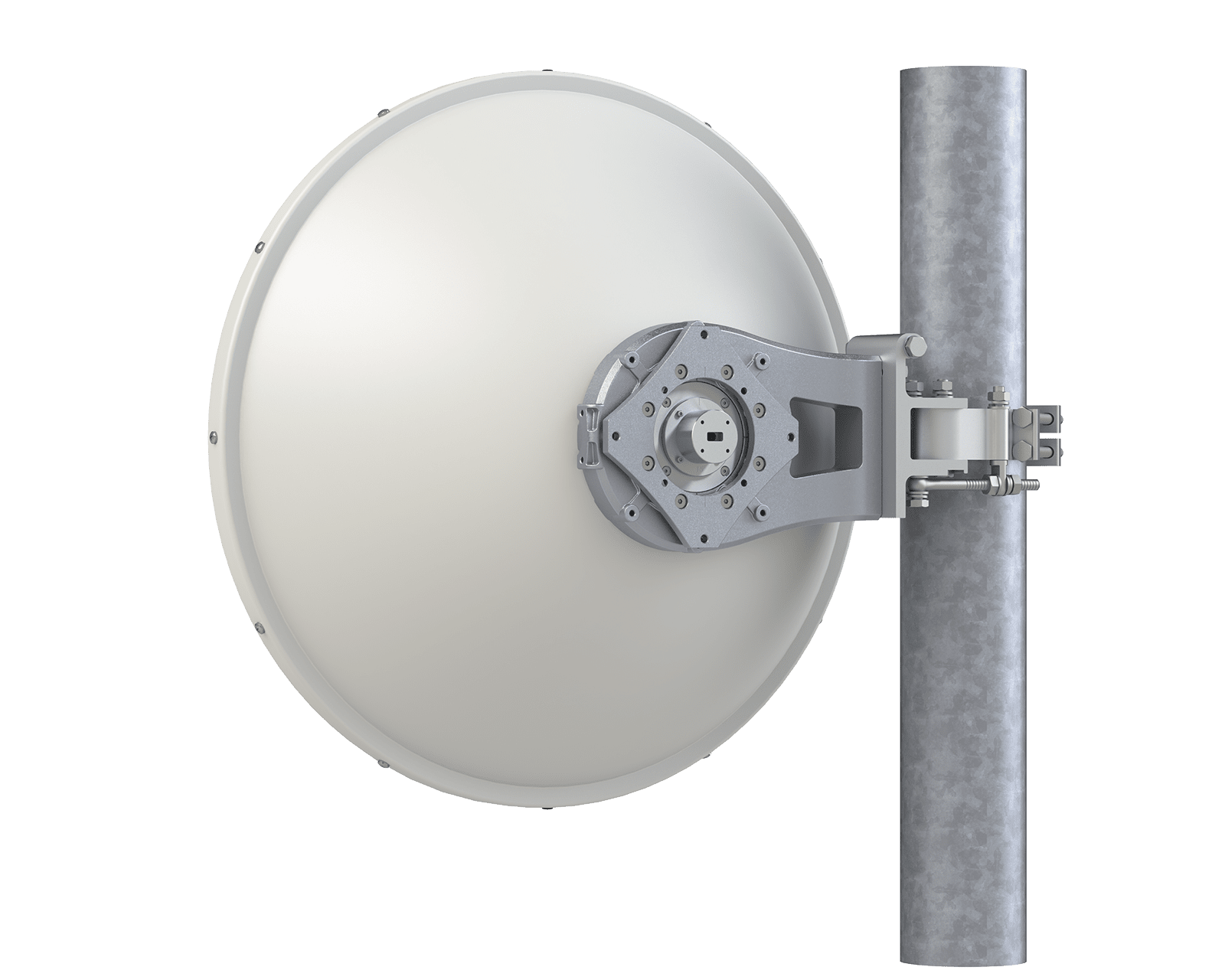

3ft | 0.9m High Performance Microwave Antenna
Dual polarized
37.000 - 40.000 GHz
Custom/Standard flange
White antenna, grey radome
0.9m High Performanace Microwave Antenna
| Operating Frequency | 37.00-40.00 GHz |
| Gain, Low Band | 47.1dBi |
| Gain, Mid Band | 47.5 dBi |
| Gain, High Band | 47.7 dBi |
| 3dB BW (Azimuth & Elevation) | 0.6 deg |
| VSWR (Return Loss) | 1.38 (-16.0 dB) |
| F/B Ratio | 76 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R2 Class3| Canada SRSP 314.5 Part C |
| Radiation Pattern Envelope Number | RPE09-38 |
| Operating Temperature Range | -55°C to +70°C |
| Storage Temperature Range | -55°C to +70°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±15° |
| Elevation Adjustment Range | ±15° |
| Packed Dimension, Length | 1065mm | 41.93in |
| Packed Dimension, Width | 1065mm | 41.93in |
| Packed Dimension, Height | 415mm | 16.34in |
| Net Weight | 22 kg | 48.5 lb |
| Pole Diameter | 90-120 mm | 4-5 in |
| Side Struts, Included | 0 |
| Axial Force (FA) | 2949 N | 663 lbf |
| Side Force (FS) | 1455 N | 327 lbf |
| Twisting Moment (MT) | 1180 N.M | 870 lbft |
| Angle α for MT Max | -10° |
