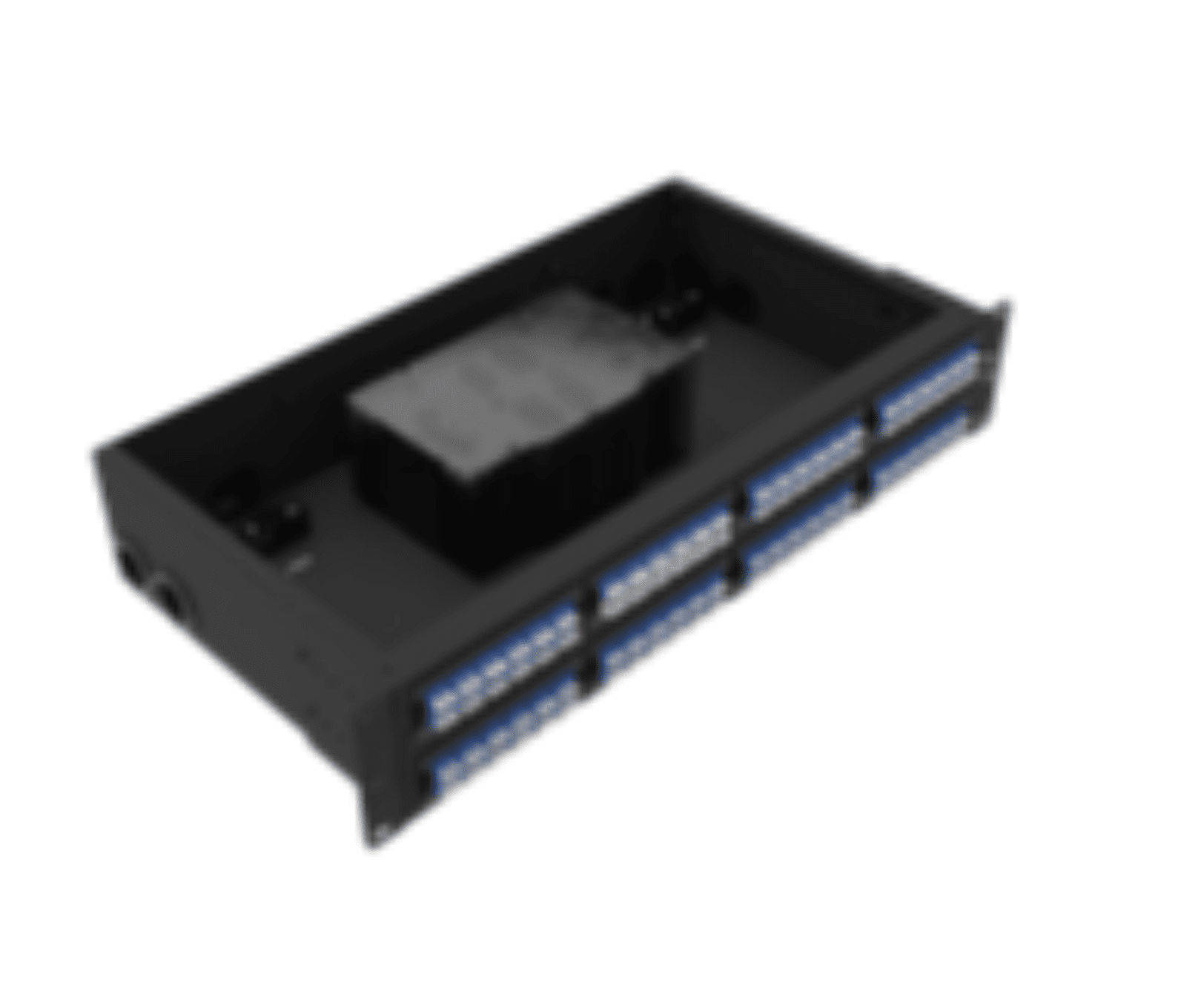

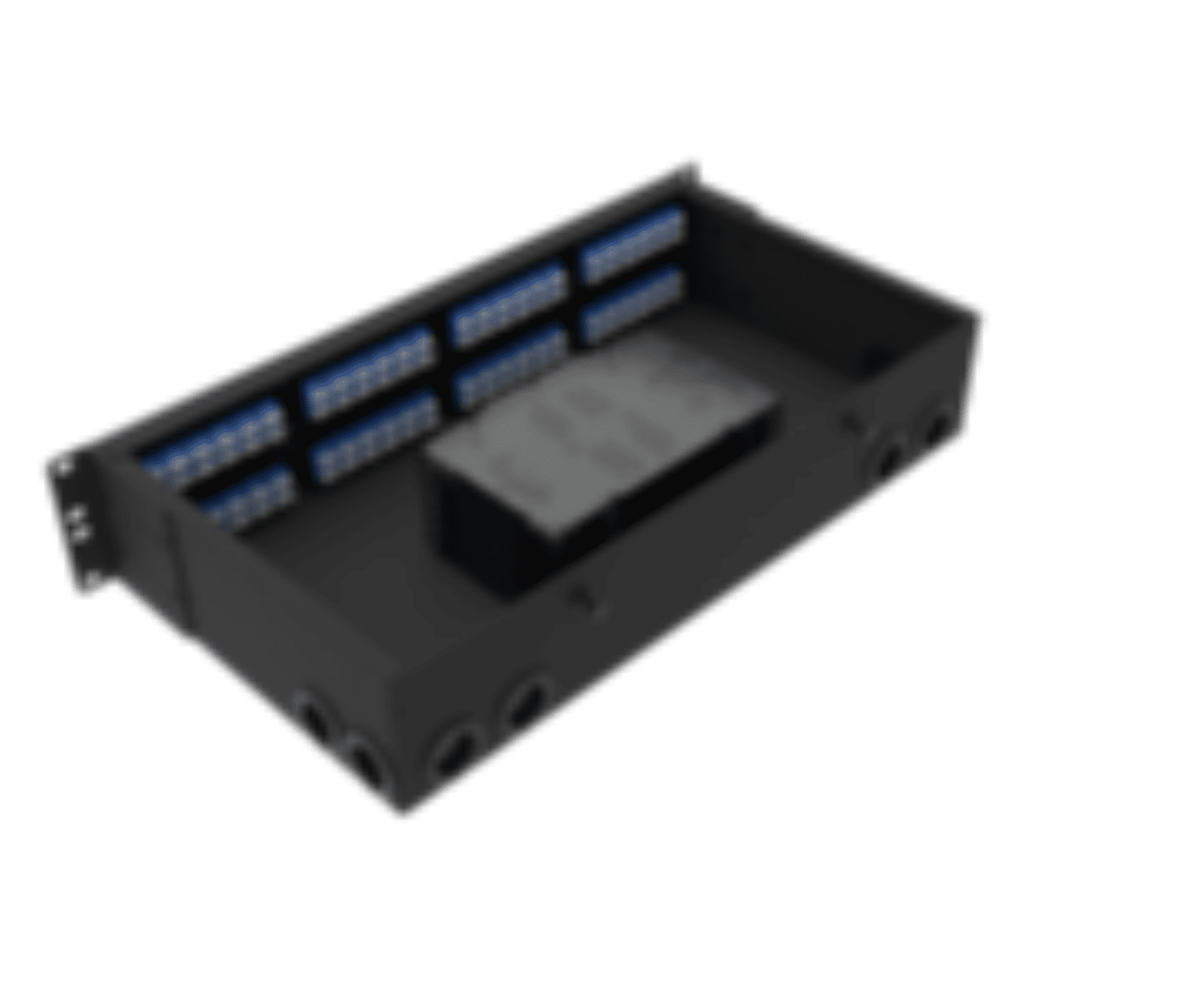

PROSE ODU (Optical distribution unit) are designed for application in high density cabling system.
It meets the requirements of ANSI/TIA-568.2-D and ISO/IEC 11801.
They are suitable for installation on 19" racks with excellent performance and easy installation, and meanwhile have extremely high flexibility, adaptability and maximally integration.
Standard 19 " width;
Simple design, fixed installation, bracket position can be adjusted;
Adapter model: LC/SC/FC/ST;
96-port / 2U; 144-port / 3U; 192-port / 4U can be selected.
Suitable for ribbon optical cable and bundle optical cable;
The bending radius of the optical fiber or cable is greater than 40mm.
Box surface electrostatic spraying, Standard RAL9005 black, other colors can be customized.
| Dimensions (2U) | 482.6*257*88mm |
| Dimensions (3U) | 482.6*426*130mm |
| Dimensions (4U) | 482.6*430.5*177mm |
| Structure | Fixed structure |
| Installation Temperature Range | 0℃ to +50℃ |
| Operating Temperature Range | -20℃ to +60℃ |
