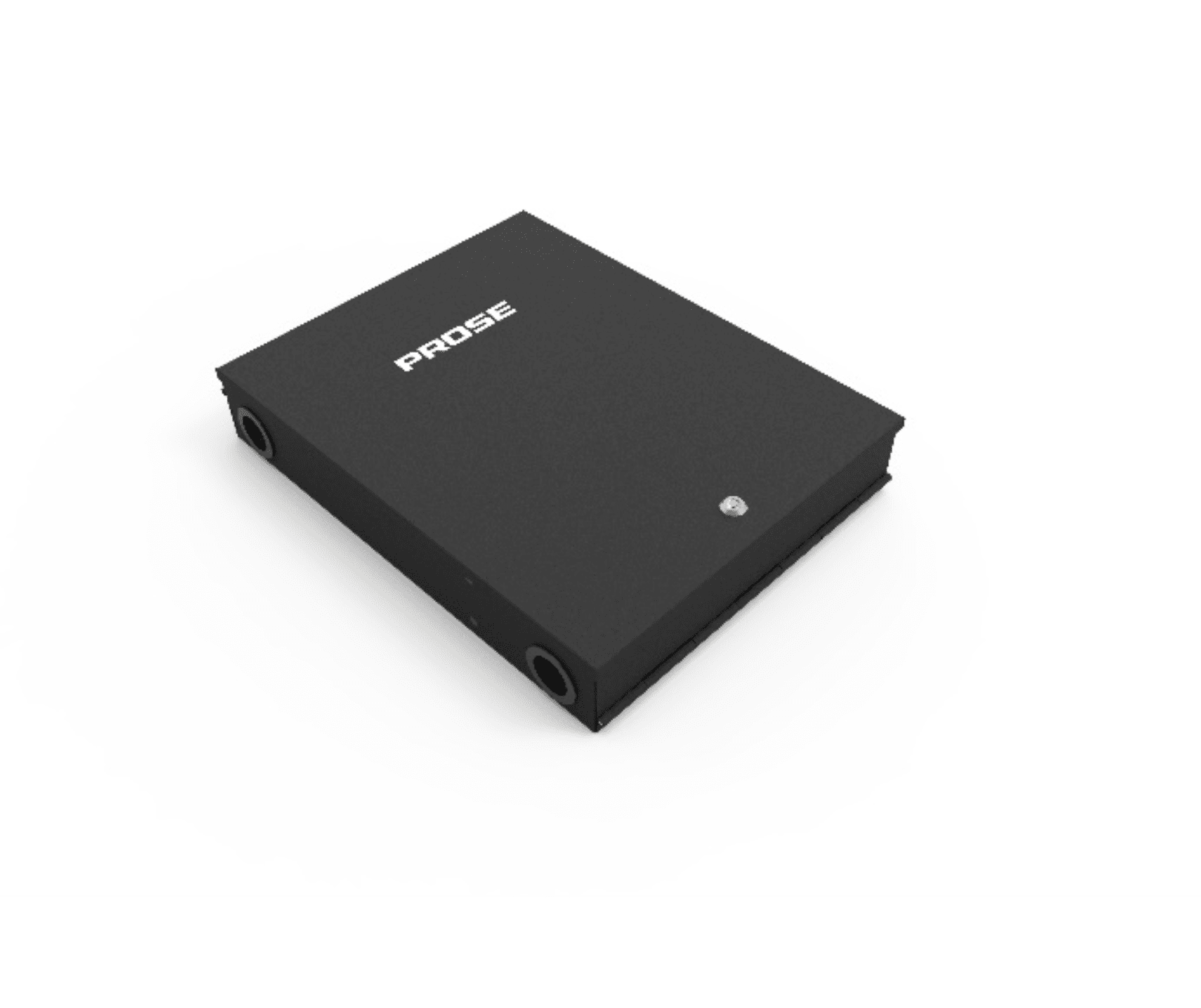

PROSE Splicing ODF (Optical distribution frame) are designed for application in high density cabling system.
It meets the requirements of ANSI/TIA-568.2-D and ISO/IEC 11801.
They are fixed to the wall with excellent performance and easy installation, and meanwhile have extremely high flexibility, adaptability and maximally integration.

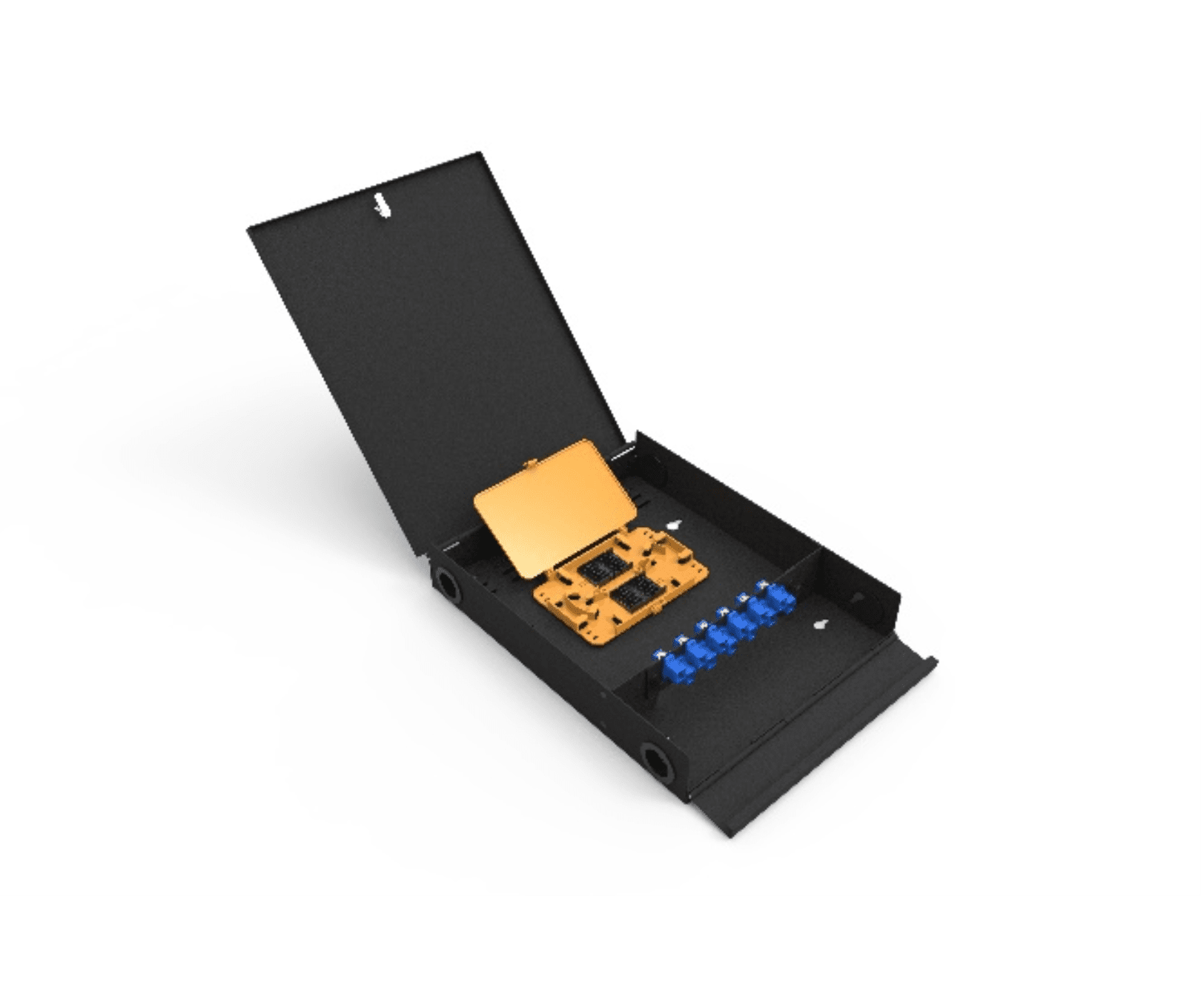

Equipped with integrated splice & patch tray, 12 / 24 port are optional.
Simple design, fixed installation, bracket position can be adjusted.
Suitable for ribbon optical cable and bundle optical cable.
The bending radius of the optical fiber or cable is greater than 40mm.
The front side is equipped with special keys to ensure safety.
There are four inlet ports for easy cable arrangement.
Adapter model: LC/SC/FC/ST.
| Dimensions (12Port) | 320x250x55mm |
| Dimensions (24Port) | 320x250x80mm |
| Lock Type | Flap type with round hole lock |
| Material | High quality aluminum metal |
| Surface Finish | Electrostatic spraying, RAL9005 black (custom colors available) |
| Installation Temperature Range | 0℃ to +50℃ |
| Operating Temperature Range | -20℃ to +60℃ |
