PROSE optical fiber patch cords are used to connect servers, switches and storage devices, etc., to achieve high-speed data transmission and exchange.
They have excellent transmission performance, good physical properties, and diverse interface types.
PVC,LSZH and other outer sheath materials can be selected.
OFNR,OFNP and other flame retardant grades can be selected.
Low insertion loss, high return loss.
Two types of end grinding mode: UPC, APC.
Available with simplex cable, duplex cable, mini-zip cord cable, ribbon cable, other types of cables on request.
Separately packed in plastic bag, including serial number and attenuation data.

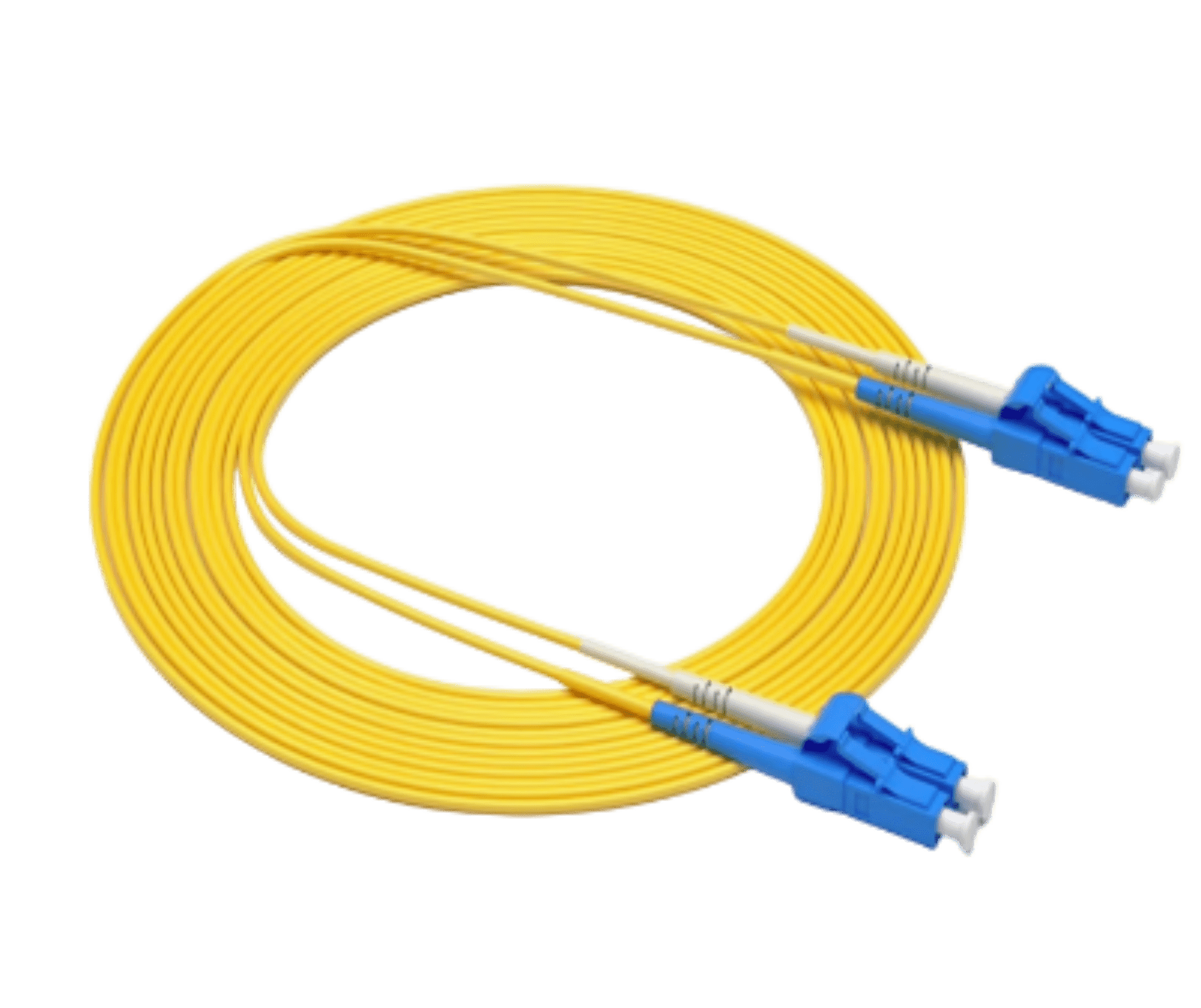

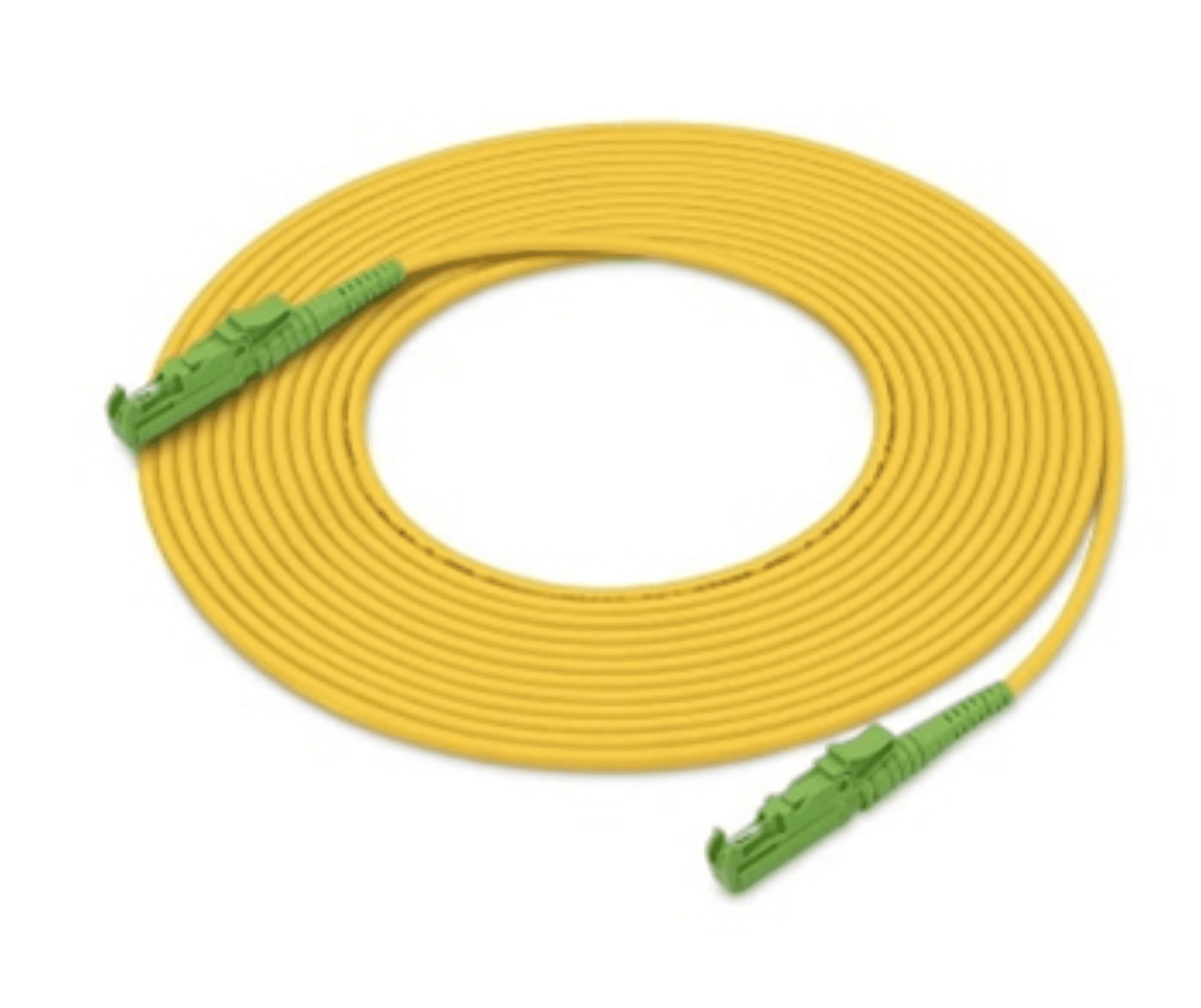

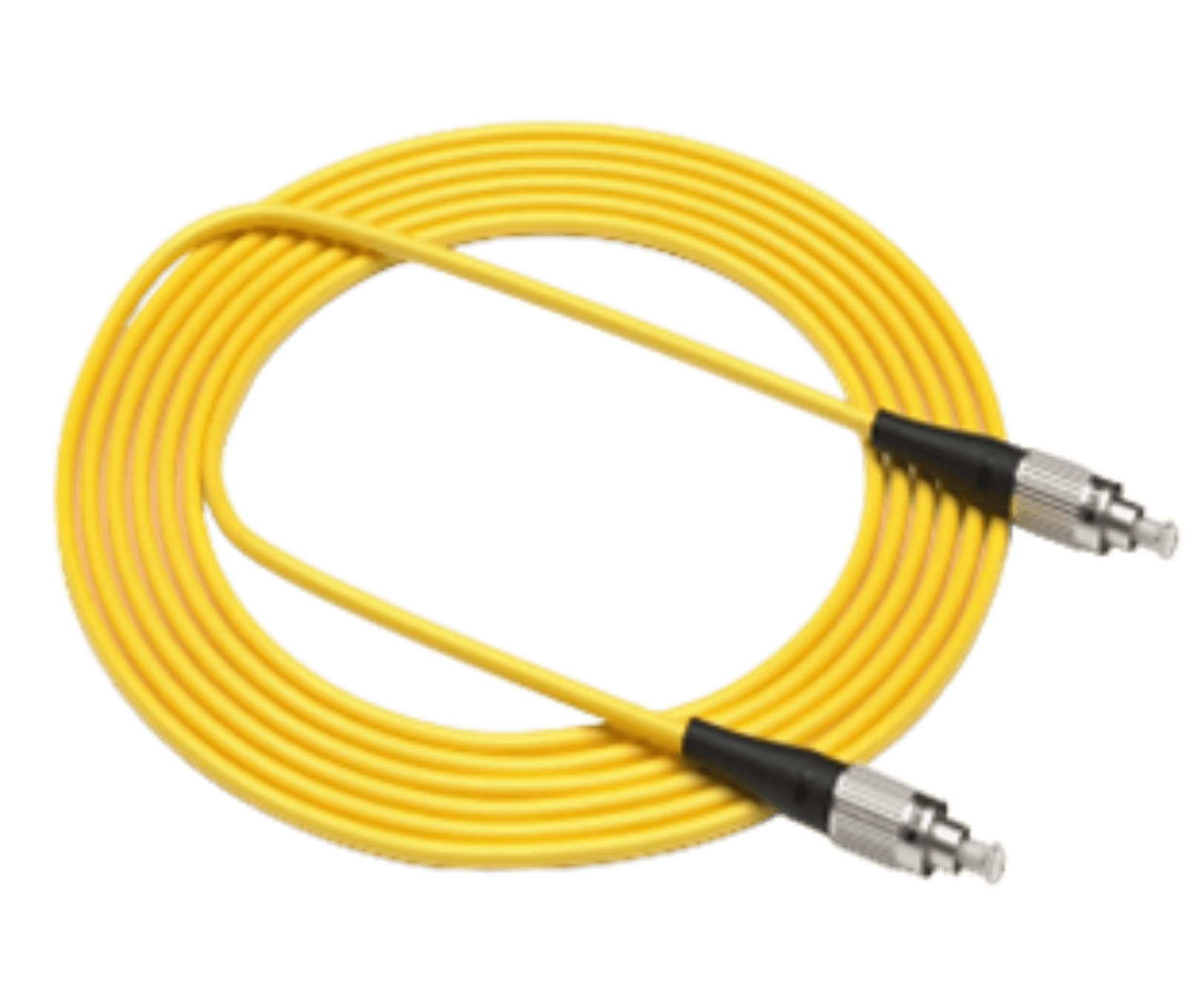

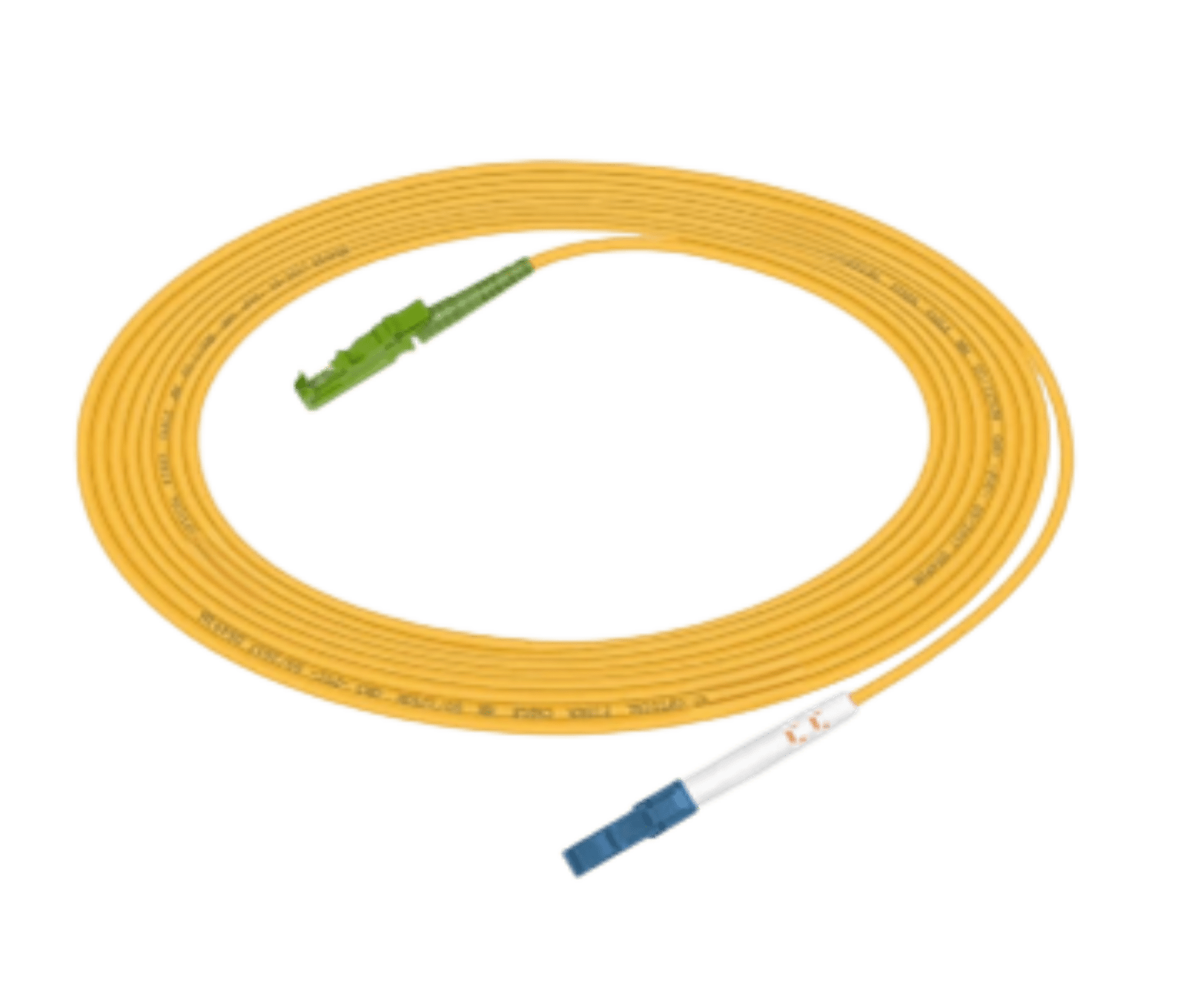

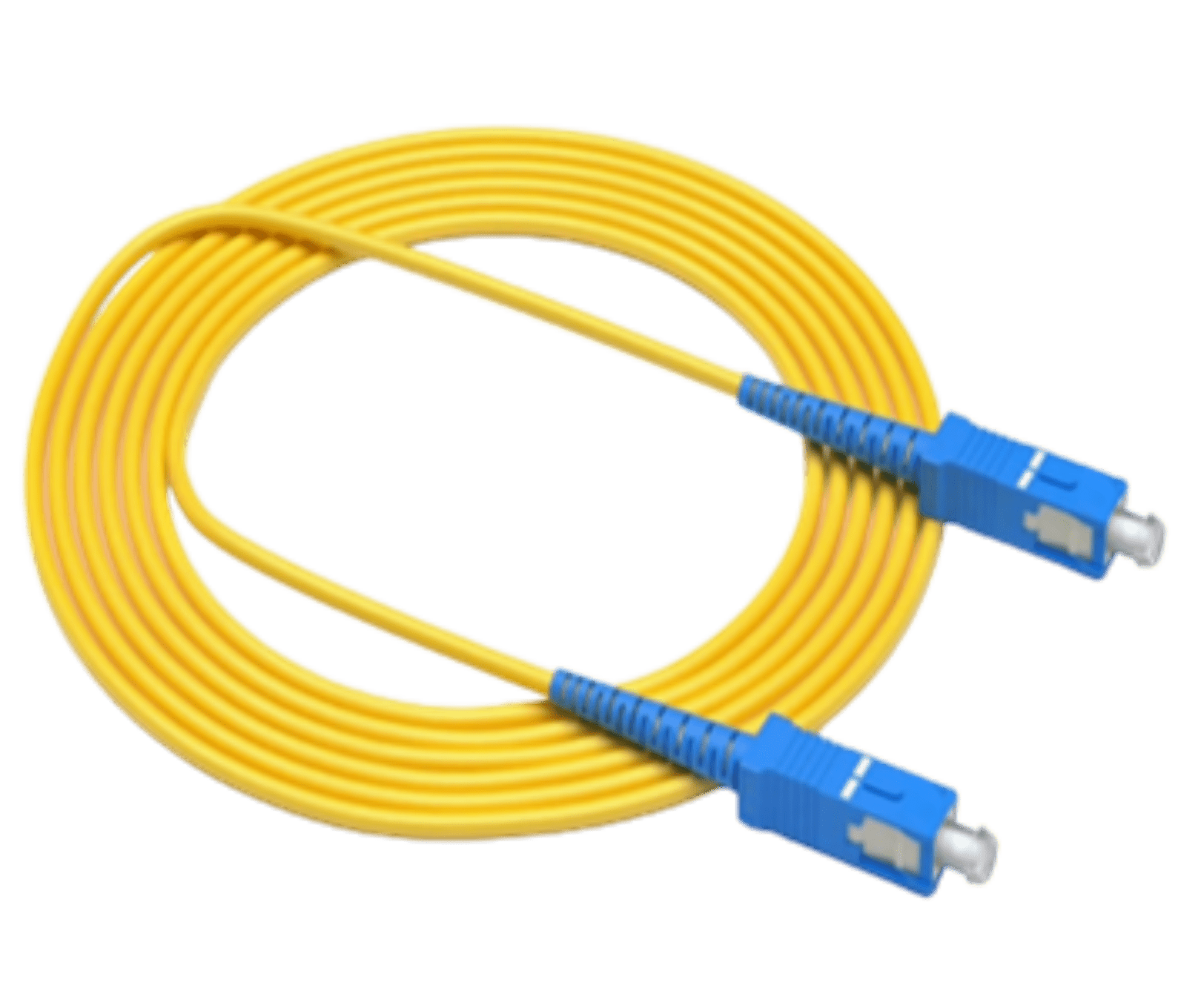

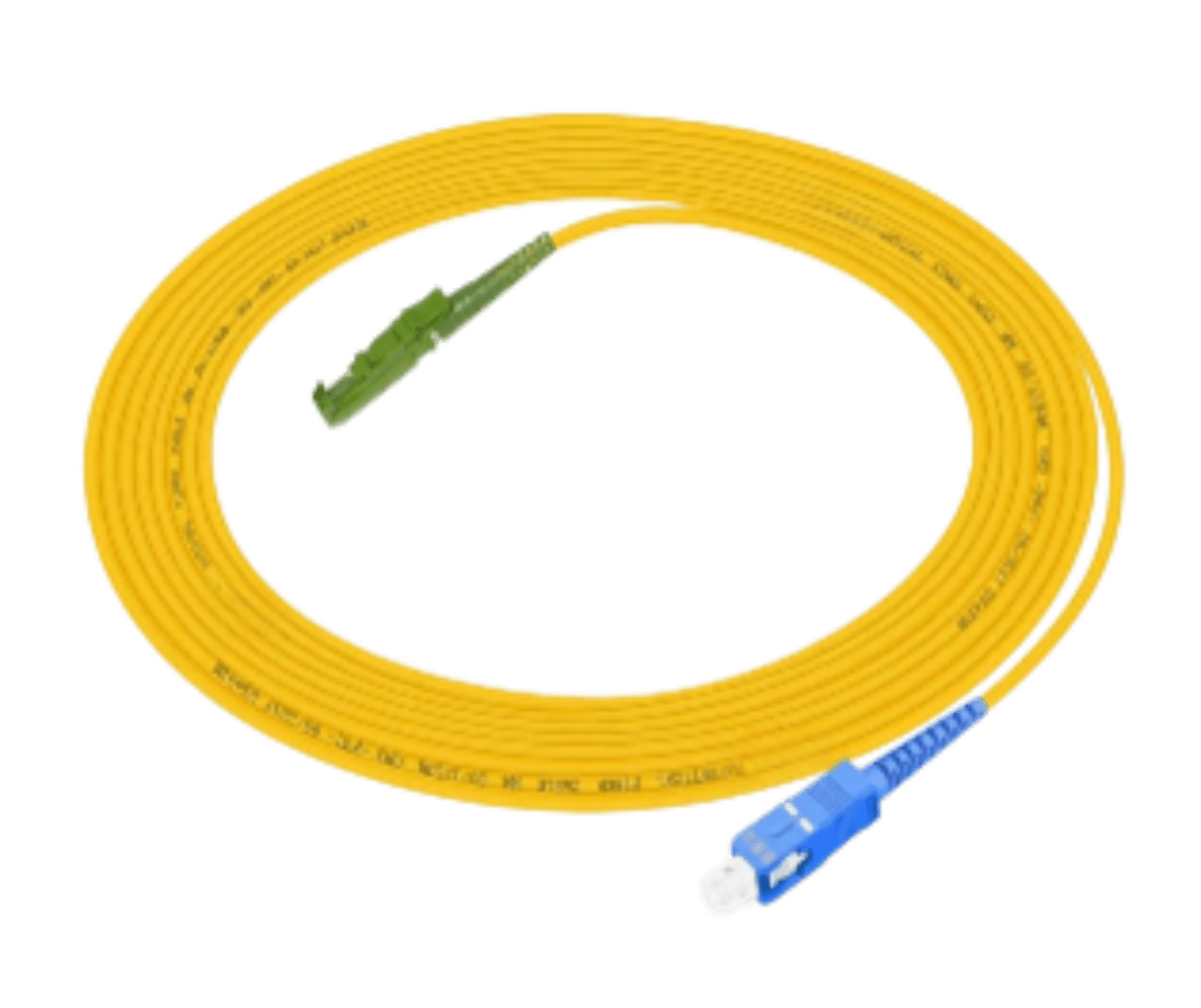

Connector types: LC, SC, FC, ST, E200.
| Fiber Types | Single-mode 9/125um (G652D,G657A/B, etc.) Multi-mode 50/125um (OM3/OM4/OM5) |
| Connecter Variants | Simplex and duplex |
| External Diameter | 0.9mm buffered fiber 2.0mm simplex/duplex cable 3.0mm simplex/duplex cable |
| Delivery Form | Single item in foil bag One product ID label with measurement values per patch cord Serial number label on patch cord |
| Ferrule Outside Diameter (mm) | 1.25mm (LC); 2.50mm (SC) |
| LC | Comply with IEC 61754-20 |
| SC | Comply with TIA 568, IEC 874-10 |
| FC | Comply with IEC 60874-7 |
| ST | Comply with TIA 568, IEC 874-14 |
| The Insertion Loss Test | Acc.to IEC 61300-3-4 |
| The Return Loss Test | Acc.to IEC 61300-3-6 |
| Type | Insertion loss(dB) | Return Loss(dB) | |
| SM:SC; FC; ST; LC,E2000 | Ultra (UPC) | <0.30 dB | >50 dB |
| Angle(APC) | <0.30 dB | >60 dB | |
| MM:SC; FC; ST; LC,E2000 | Ultra (UPC) | <0.30 dB | >25 dB |
| Type | Parameters | |
| Core | 1 | 2 |
| Tensile strength (N) | 150 | 300 |
| Compressive strength (N/cm) | 15 | 30 |
| Minimum Bending Radius for Installation(mm) | 20 times O.D | 20 times O.D |
| Minimum Bending Radius for Operation (mm) | 10 times O.D | 10 times O.D |
| Installation Temperature(℃) | 0-50℃ | 0-50℃ |
| Operating Temperature(℃) | -20 to +60℃ | -20 to +60℃ |
| Transportation and Storage Temperature(℃) | -25 to +70℃ | -25 to +70℃ |
