PROSE indoor fiber optic trunk cable is used for the rapid deployment of horizontal optical cables and trunk optical cables between intelligent building integrated wiring equipment and various data centers.
Standardized parts, de-engineering, to achieve data center optical link factory production.
It can be fast installed and save time for data center construction.
Using high grade low loss MPO, LC, SC and other connectors, it meets and exceeds IEC 61745 IEC61755 and other standards.
Without a single splicing point in the entire trunk cable, each fiber connector is tested in factory for transmission and connectivity performance to ensure minimal insertion loss.
Support fiber count ranging from 4 to 144 for high-density application.
G652D, OM3, OM4 and OM5 fiber type are available for different requirements.
OFN, OFNR, OFNP or LSZH rated outer sheath cables are available.
The length can be customized according to customer requirements, and branch length and type.
| Fiber Count | 4–144 |

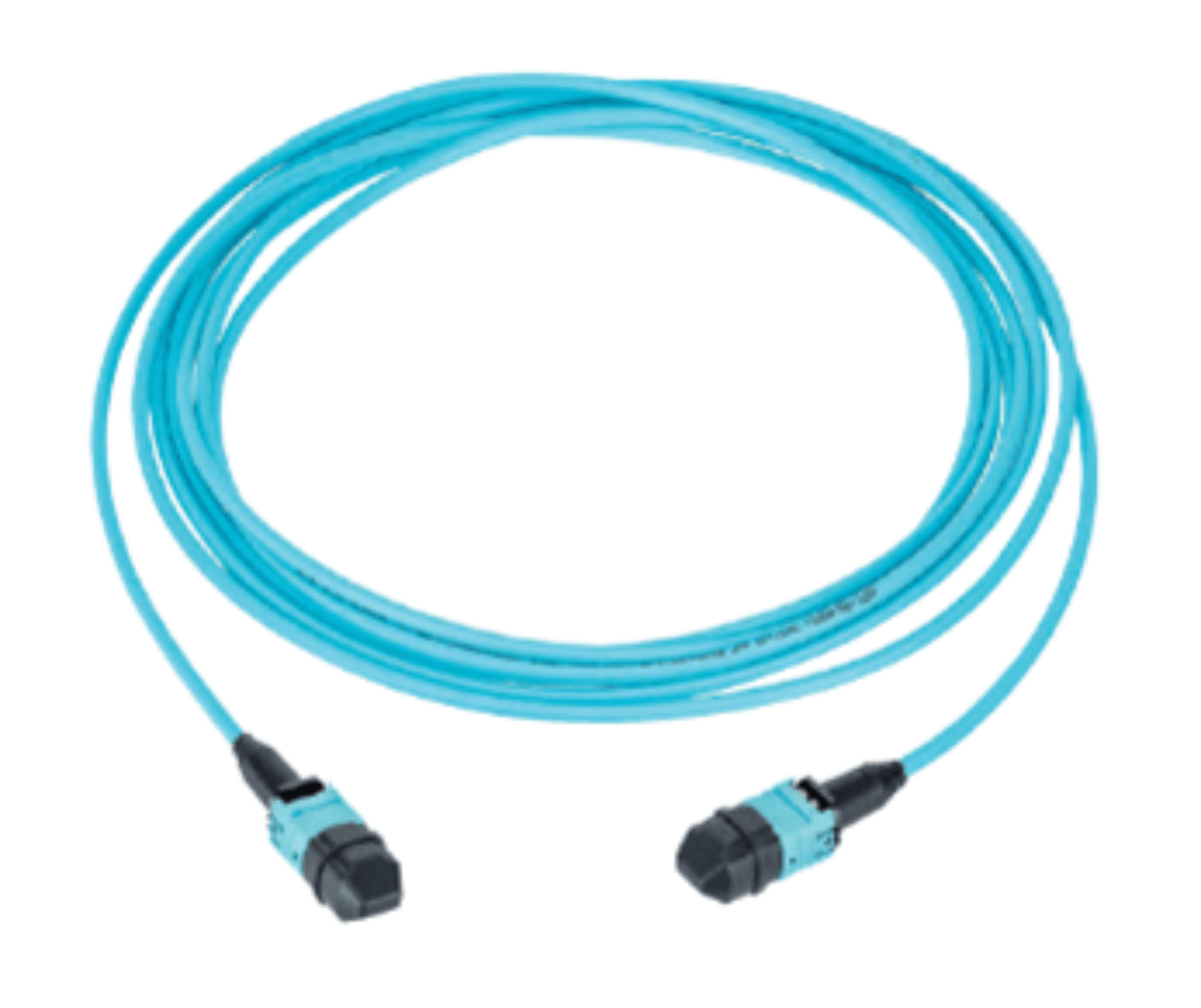

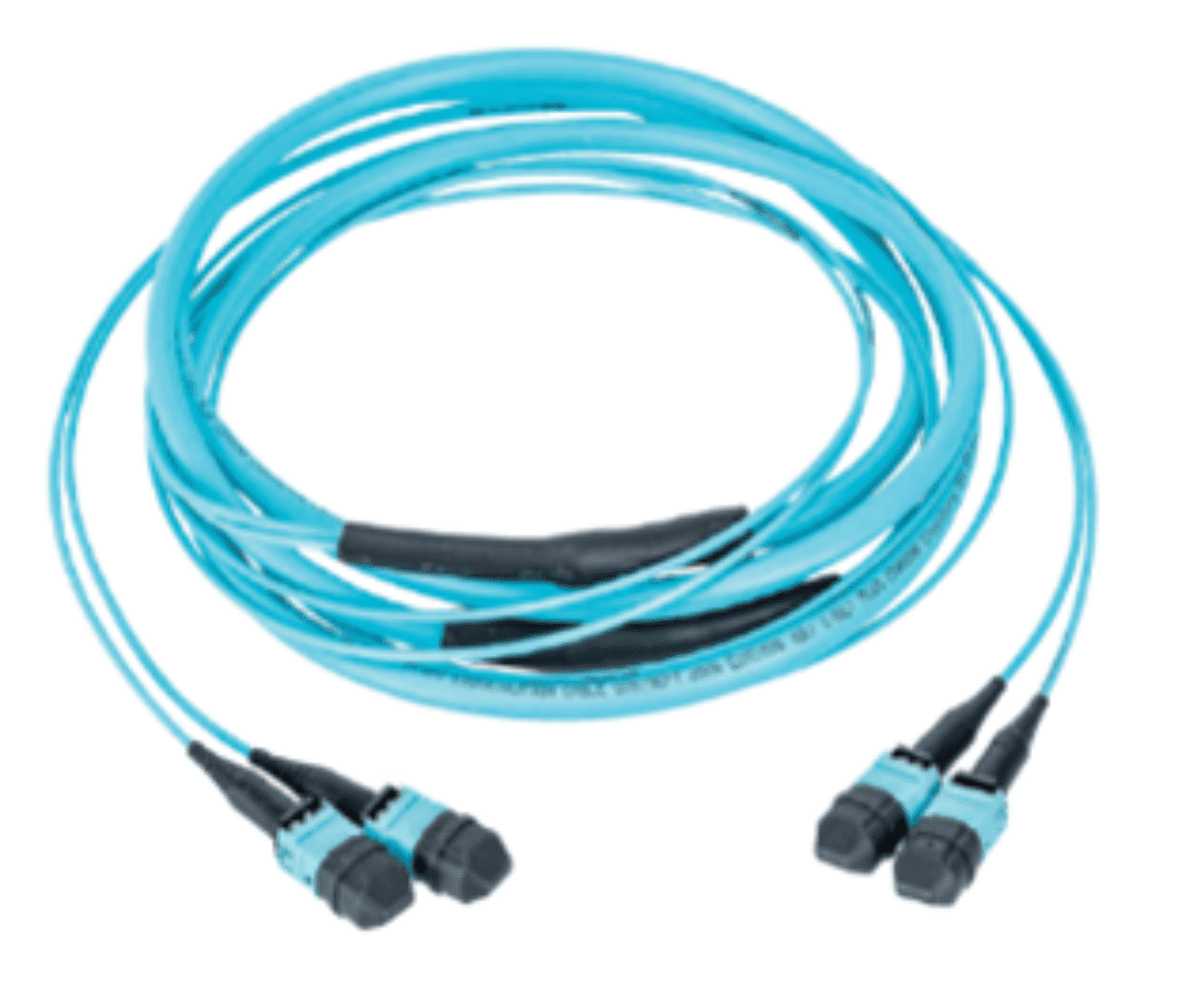

| Connector | MTP/MPO, LC Duplex or customer specified |
| MTP/MPO Polarity | Type A, Type B, Type C (per TIA-568.3-E) |

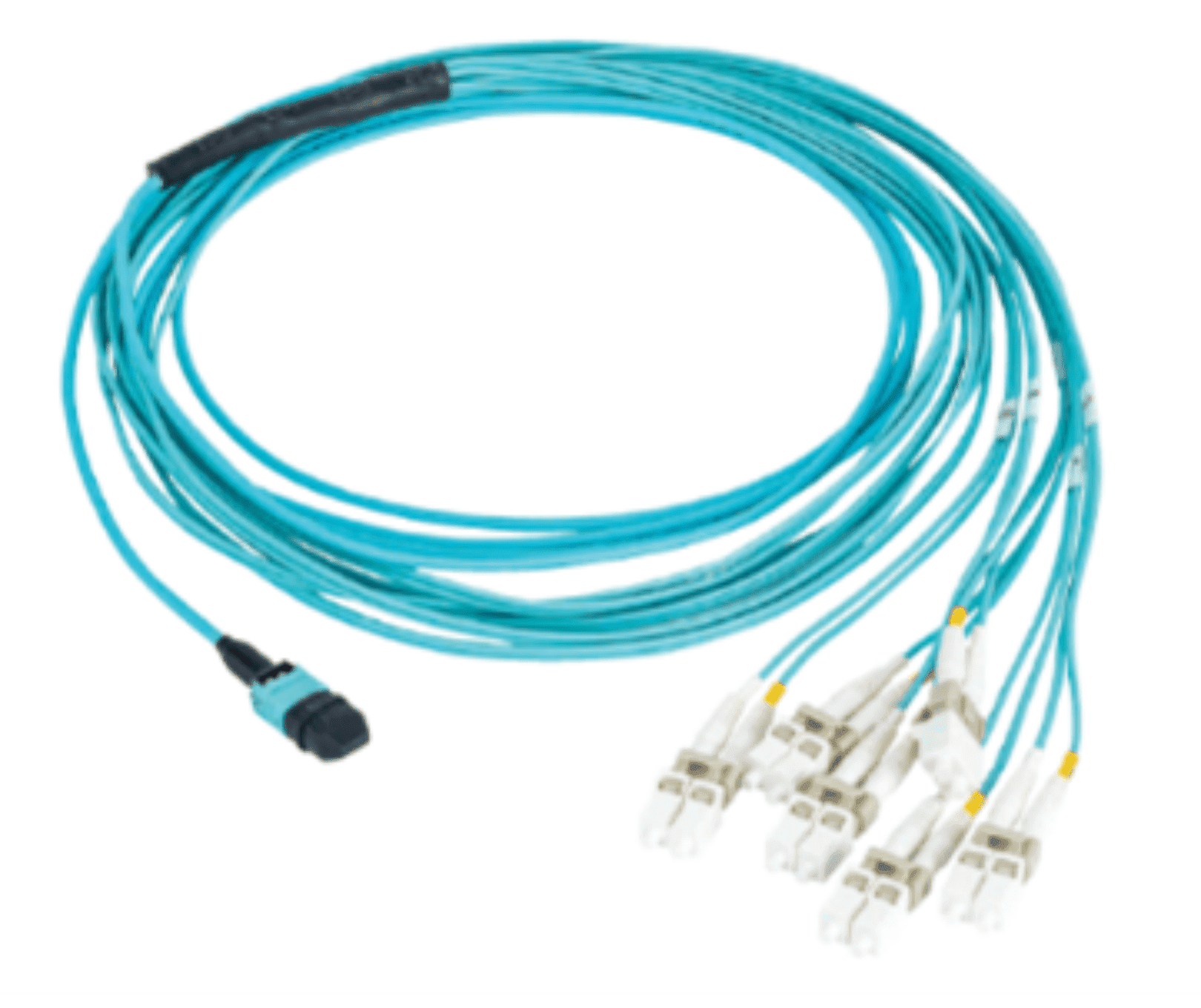

| MTP/MPO-LC, LC-LC | Crossover or straight optional |
| Serial Numbers | Printed on cable labels |
| Temperature Range (Installation) | 0°C – 50°C |
| Temperature Range (Operating) | –20°C – 60°C |
| LC | Comply with IEC 61754-20 |
| SC | Comply with TIA 568, IEC 874-10 |
| FC | Comply with IEC 60874-7 |
| ST | Comply with TIA 568, IEC 874-14 |
| Insertion Loss Test | According to IEC 61300-3-4 |
| Return Loss Test | According to IEC 61300-3-6 |
| Optical Fiber Core | 4 | 8 | 12 | 16 | 24 | 48 | 72 |
| Maximum Tensile Strength(N) | 1200 | 1200 | 1200 | 1200 | 1200 | 3000 | 3000 |
| Minimum Bending Radius(mm) | 160 | 160 | 160 | 164 | 164 | 240 | 250 |
| Minimum Installation Radius(mm) | 120 | 120 | 120 | 128 | 128 | 180 | 188 |
| Fiber Optic Fable Impact Resistance(N/cm) | 150 | 150 | 150 | 150 | 150 | 200 | 200 |
