Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Crush resistance and flexibility;
Single Fiber Reinforced Plastic as the central strength member;

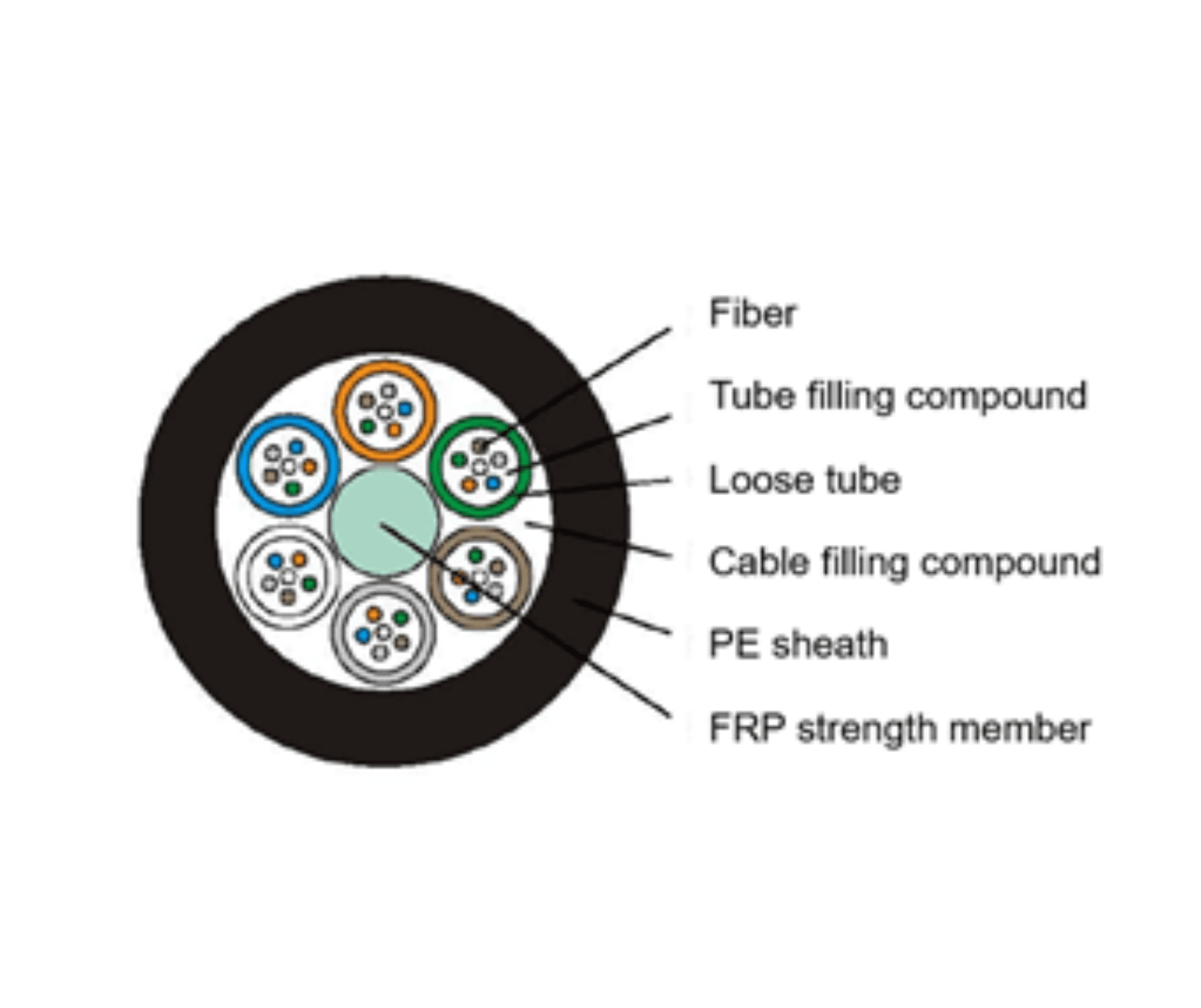

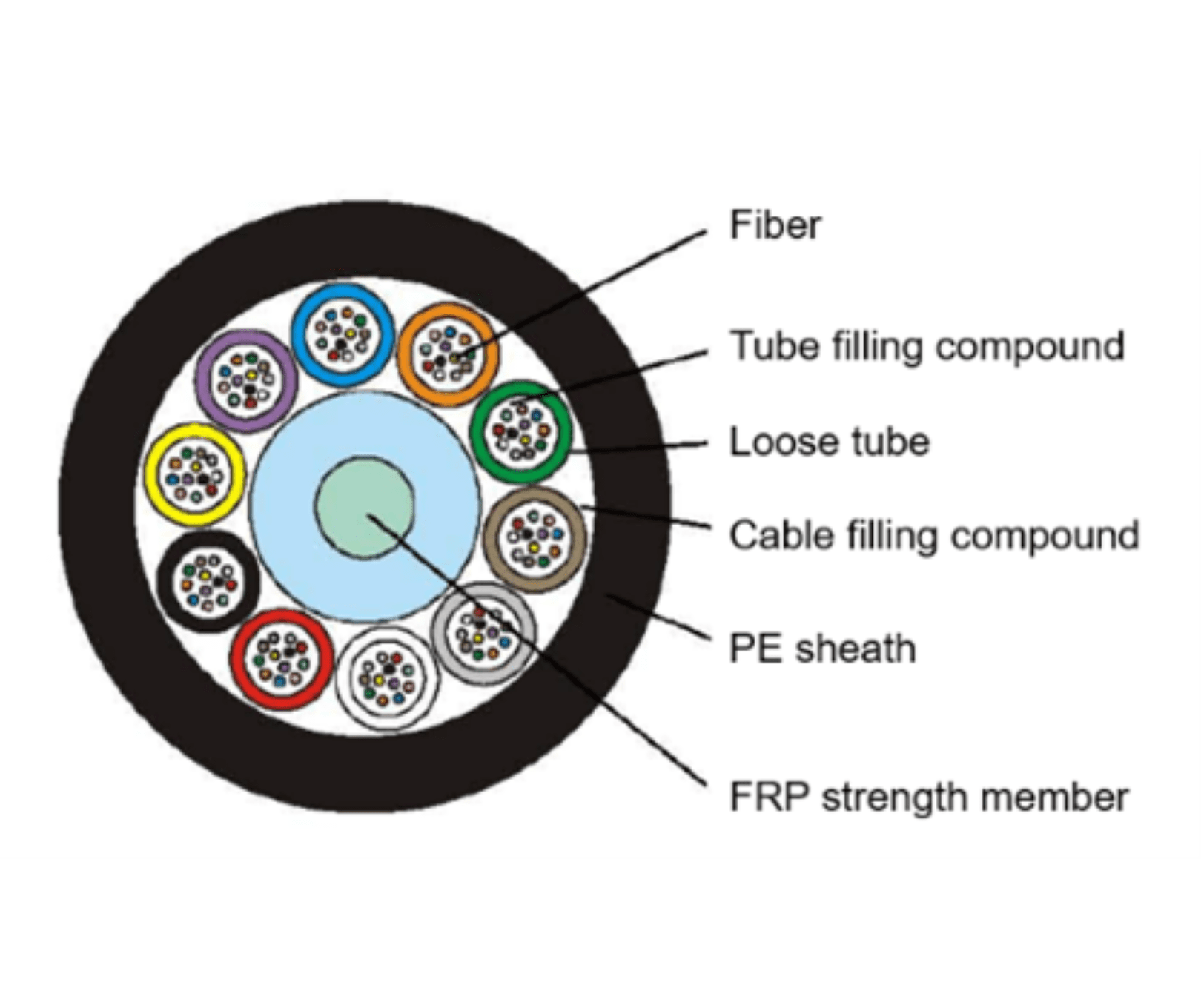

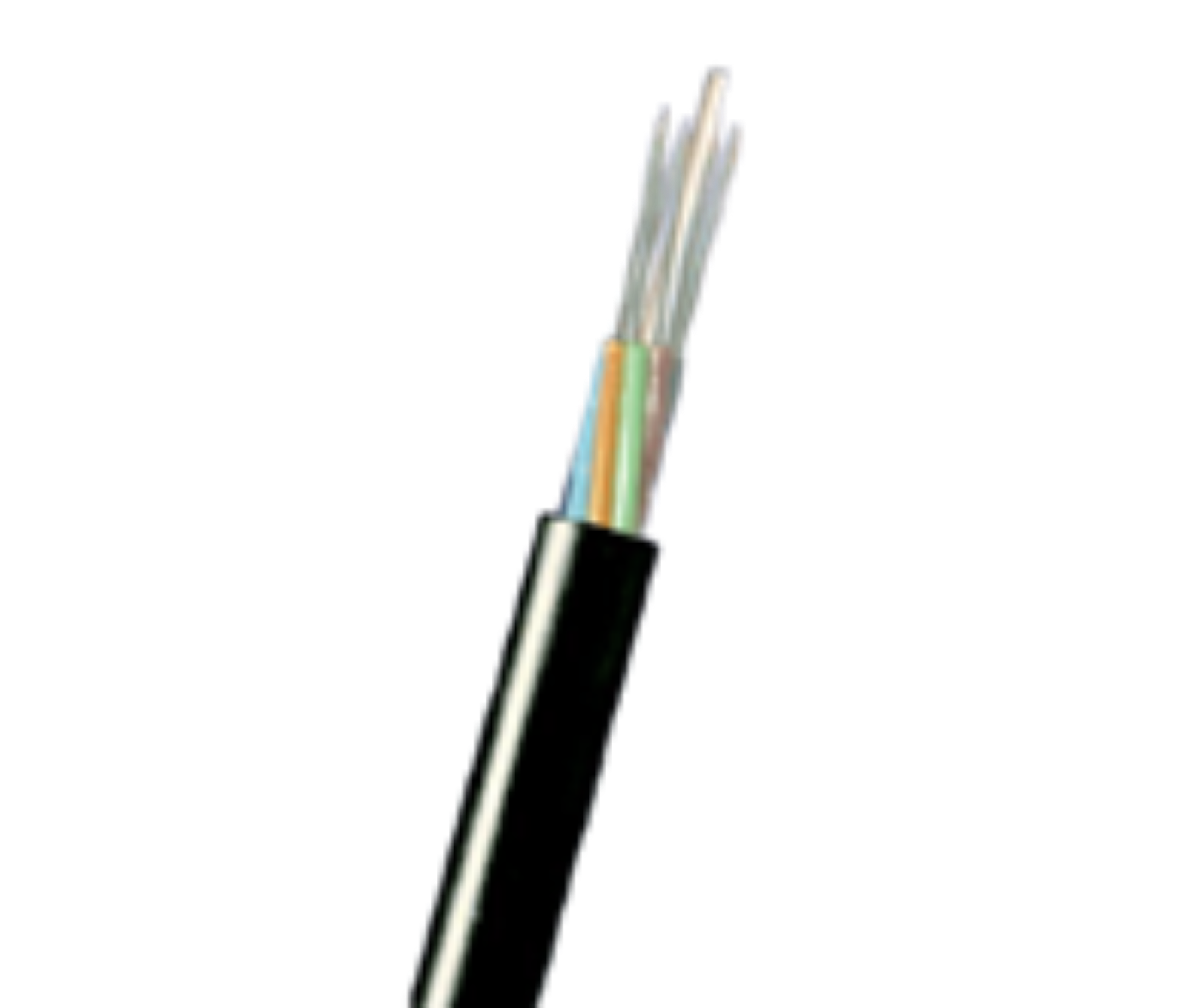

PROSE indoor/outdoor Non-Metal Armored fiber optic cable are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.
The tubes (and fillers) are stranded around the strength member into a compact and circular core.
After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE/LSZH sheath.
| Items | Specification | ||
| Fiber Count | 24 / 48 / 72 / 96 / 144 | ||
| Optical Fiber | Diameter | 250 µm | |
| Type | Single-mode: G652D, G657A1, G657A2 Multi‑mode: OM3 / OM4 / OM5 |
||
| Loose Tube | Material | High modulus plastic | |
| Tube Filling | Water‑blocking filling compound | ||
| Structure | Stranded around FRP central strength member | ||
| Cable | Central Strength Member | FRP (Fiber Reinforced Plastic) | |
| Armoring | Non-metallic, no metal components | ||
| Outer Sheath Material | PE or LSZH (IEC 60332‑1) | ||
| Water Blocking | Full-section filling for water ingress protection | ||
| Fiber Type | Single-mode G652D (1310/1550nm) |
Single-mode G657A1 (1310/1550nm) |
Single-mode G657A2 (1310/1550nm) |
|
| Attenuation(dB) | Typical | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 |
| Maximum | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 | |
| Zero Dispersion Slope | ≤0.091 ps/kmꞏnm2 | ≤0.092 ps/kmꞏnm2 | ≤0.092 ps/kmꞏnm2 | |
| Dispersion(1285~1340nm) | -3.5 – 3.5ps/(nmꞏkm) | -3.5 – 3.5ps/(nmꞏkm) | -3.5 – 3.5ps/(nmꞏkm) | |
| Mode field Diameter (@1310nm) | 9.1±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm | |
| Cutoff wavelength cable(nm) | ≤1260 nm | ≤1260 nm | ≤1260 nm | |
| Min bend radius(mm) | 16mm | 10mm | 7.5mm | |
| Cladding diameter(µm) | 125±1.0 | 125±1.0 | 125±1.0 | |
| Fiber Type | Multi-mode (62.5/125µm ) (850/1300nm) |
Multi-mode (50/125µm ) (850/1300nm) |
Multi-mode OM3 (850/1300nm) |
Multi-mode OM4 (850/1300nm) |
Multi -mode OM5 (850/953nm/1300nm) |
|
| Attenuation(dB) | Typical | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/-/1.0 |
| Maximum | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/-/1.5 | |
| Bandwidth (MHzꞏkm) | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | ≥3500/≥1850/≥500 | |
| Effective modal bandwidth | ----/---- | ----/---- | ≥2000/---- | ≥4700/---- | ≥4700/2470/---- | |
| 10 Gigabit Ethernet SX (MHzꞏkm) | ----/---- | ----/---- | ≤300/---- | ≤550/---- | ----/----/---- | |
| 40GBASE- SR4/100GBASE-SR10 | ----/---- | ----/---- | ----/---- | ----/---- | 200M @850nm | |
| Min bend radius(mm) | 30 | 30 | 7.5 | 7.5 | 7.5 | |
| Cladding diameter(µm) | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | |
| Items | Request | |
| Tensile Strength, N(Maximum Tubes 6) | Short-term | 1000 |
| Long-term | 400 | |
| Tensile Strength, N(Maximum Tubes 7) | Short-term | 1500 |
| Long-term | 600 | |
| Tensile Strength, N(Maximum Tubes 12) | Short-term | 3000 |
| Long-term | 1000 | |
| Crush Resistance, N/100mm | Short-term | 1000 |
| Long-term | 300 | |
| Bending Radius, mm | Static | 10D |
| Dynamic | 20D | |
| Operation temperature | -40℃ to +70℃ | |
| Storage temperature | -40℃ to +70℃ | |
