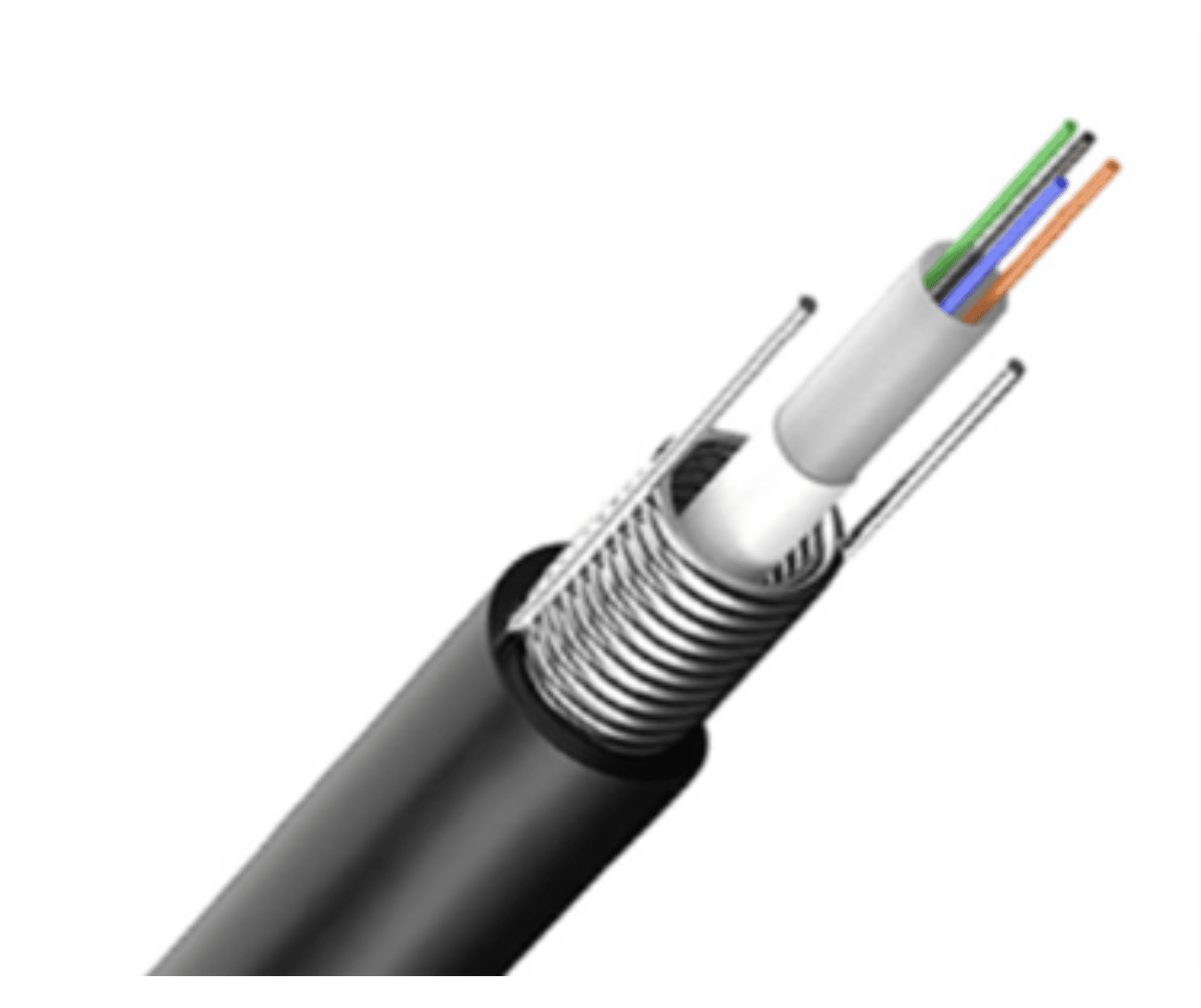

The center beam tube structure has good mechanical properties.
The double-sided coated plastic steel strip can improve the anti-moisture ability of optical cable.
Two parallel steel wires can ensure the tensile strength of the fiber cable;
Provide single mode, multi-mode, 2-24 core multiple models;
PROSE outdoor optical fiber FC03 series cables are designed for fiber solutions with excellent performance which exceed TIA / EIA 568.3-D, ISO / IEC 11801, EN50173 requirements.
Good EMI-resistant, easy installation, meanwhile having extremely high flexibility, adaptability and maximally integrated designing.
It is mainly used for optical fiber connection of outdoor areas, trunk pipelines or overhead pipelines between buildings.

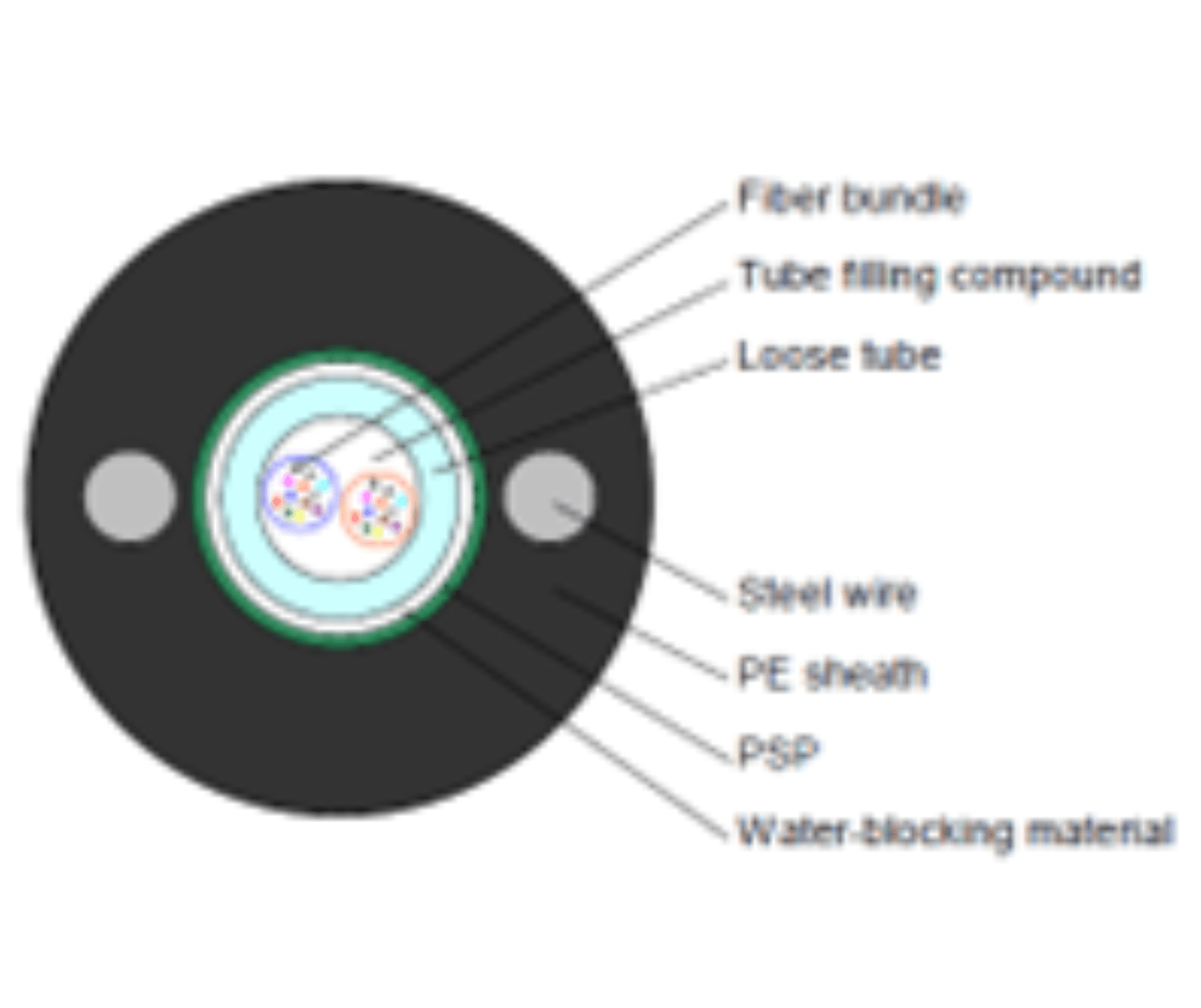

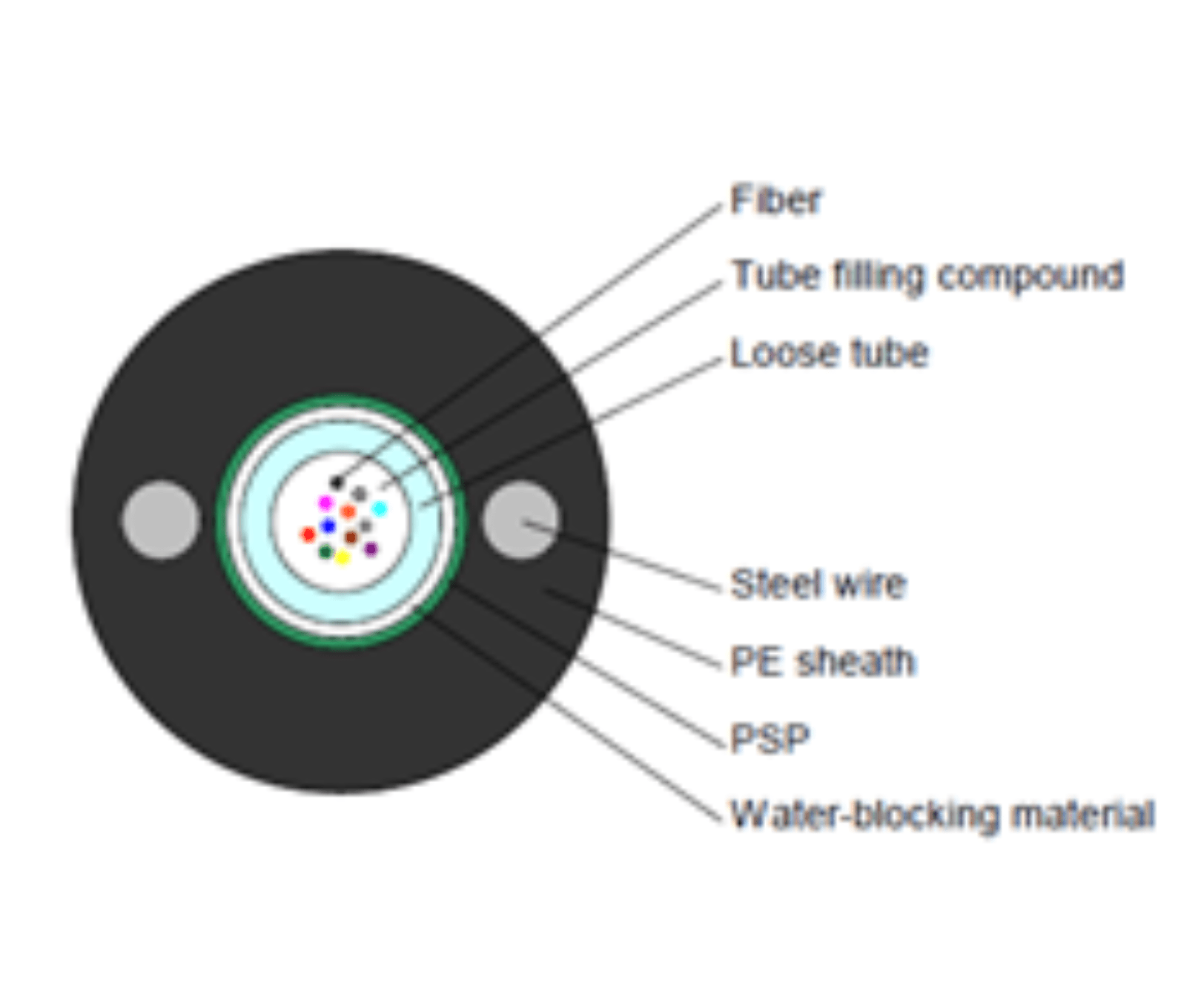

The optical cable is a 250um optical fiber inserted into the center beam tube, and the tube is filled with waterproof compound.
The tube is longitudinally wrapped with a double-sided chromium-coated plastic steel strip, and water blocking material is added between the steel strip and the tube to ensure the compact and longitudinal water blocking of the cable.
Two parallel steel wires are placed on both sides of the tube and the extruded PE sheath is formed.
| Fiber Count | 2-12F | 13-24F |
| Center tube outer diameter (mm) | 2.5±0.1 | 3.0±0.1 |
| Center tube thickness (mm) | 0.4±0.05 | 0.45±0.05 |
| Stiffener diameter (mm2) | 1mm2 | 1mm2 |
| Thickness of Steel-plastic composite tape (mm) | 0.205 | 0.205 |
| Minimum distance of steel wire outer sheath (mm) | ≥0.8 | ≥0.8 |
| Outer diameter of optical cable sheath (mm) | 7.3±0.3 | 7.8±0.3 |
| Properties | Unit | Single Mode | Multi Mode | |||
| G652D | OM2 | OM3 | OM4 | OM5 | ||
| Core Diameter | μm | 9.2±0.4 | 50±3.0 | 50±2.5 | 50±2.5 | 50±2.5 |
| Cladding Diameter | μm | 125±0.7 | 125±2.0 | 125±2.0 | 125±1.0 | 125±1.0 |
| Diameter Primary Coating | μm | 245±5 | 245±10 | 245±10 | 245±10 | 245±10 |
| Numerical Aperture | mm | 0.2±0.015 | 0.2±0.015 | 0.2±0.015 | 0.2±0.015 | 245±10 |
| Core-cladding Concentricity | μm | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Attenuation | 1310 nm [dB/km] | ≤0.36 | - | - | - | - |
| 1550 nm [dB/km] | ≤0.22 | - | - | - | - | |
| 850 nm [dB/km] | - | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300 nm [dB/km] | - | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Bandwidth | 850 nm [MHz/km] | ≥400 | ≥160 | ≥160 | ≥160 | ≥160 |
| 1300nm [MHz/km] | ≥800 | ≥500 | ≥500 | ≥500 | ≥500 | |
| Cladding Non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Fatigue Resistance Parameter (Typical) | % | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
| Item | 2-12F | 13-24F | |
| Tensile Strength | Long Term | 600 N | 1000 N |
| Short Term | 1500 N | 3000 N | |
| Crush Resistance | Long Term | 300 N/100mm | 1000 N/100mm |
| Short Term | 1500 N/100mm | 3000 N/100mm | |
| Bending Radius | Static | 10 times O.D | 10 times O.D |
| Dynamic | 20 times O.D | 20 times O.D | |
| Operating Temperature | -40℃ to +70℃ | -40℃ to +70℃ | |
| Storage Temperature | -40℃ to +70℃ | -40℃ to +70℃ | |
| Cable Diameter | approx. 8.7 mm | approx. 12.0 mm | |
| Sheath Thickness | average 2.2 mm | average 2.8 mm | |
| Cable Weight | approx. 82 kg/km | approx. 147 kg/km | |
