PVC coated, fire retardant
High tensile strength
Waterproof, corrosion resistant, UV resistant
Internal smooth, good cable through protection
RoHS compliant

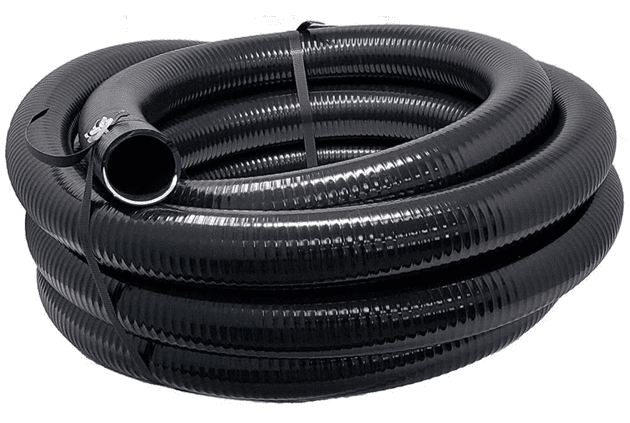

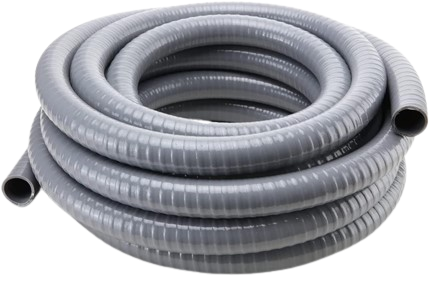

This conduit consists of a galvanized steel core that provides structural strength, which is then encased within a continuous, waterproof PVC jacket to create the liquid-tight seal.The inherent durability of the PVC jacket is also resistant to corrosion, impact, and weathering, with the inner flexible metal conduit resistance to damage by rodents makes this liquid tight flexible conduit a best choice for construciton applications, power station and power transformers wirings.
| Material | PVC and stainless steel |
| Available PN | Size (inch) | Ref. ID (mm) | Description |
| PR-FMPP02-012-XX | 1/2" | 16 | Galvanized steel liquid tight flexible conduit, 1/2" |
| PR-FMPP02-034-XX | 3/4" | 20 | Galvanized steel liquid tight flexible conduit, 3/4" |
| PR-FMPP02-100-XX | 1" | 25 | Galvanized steel liquid tight flexible conduit, 1" |
| PR-FMPP02-114-XX | 1 1/4" | 32 | Galvanized steel liquid tight flexible conduit, 1 1/4" |
| PR-FMPP02-112-XX | 1 1/2" | 38 | Galvanized steel liquid tight flexible conduit, 1 1/2" |
| PR-FMPP02-200-XX | 2" | 51 | Galvanized steel liquid tight flexible conduit, 2" |
| PR-FMPP02-212-XX | 2 1/2" | 64 | Galvanized steel liquid tight flexible conduit, 2 1/2" |
| PR-FMPP02-300-XX | 3" | 75 | Galvanized steel liquid tight flexible conduit, 3" |
| PR-FMPP02-400-XX | 4" | 100 | Galvanized steel liquid tight flexible conduit, 4" |
| PR-FMPP02-500-XX | 5" | 125 | Galvanized steel liquid tight flexible conduit, 5" |
| PR-FMPP02-600-XX | 6" | 150 | Galvanized steel liquid tight flexible conduit, 6" |
| Working Temperature | -20 to +90 ℃ |
| UV Resistance | Compliant |
| RoHS | Compliant |

A galvanized steel pipe designed to protect insulated electrical conductors and cables

A type of plastic pipe that houses and protects cable wiring

A products designed to protect and route cables in both indoor and outdoor

A new type of conduit that combines the properties of metal and plastic
