Long service life
High impact resistance
Superior stress crack resistance
High strength-to-weight ratio
Better chemical resistance

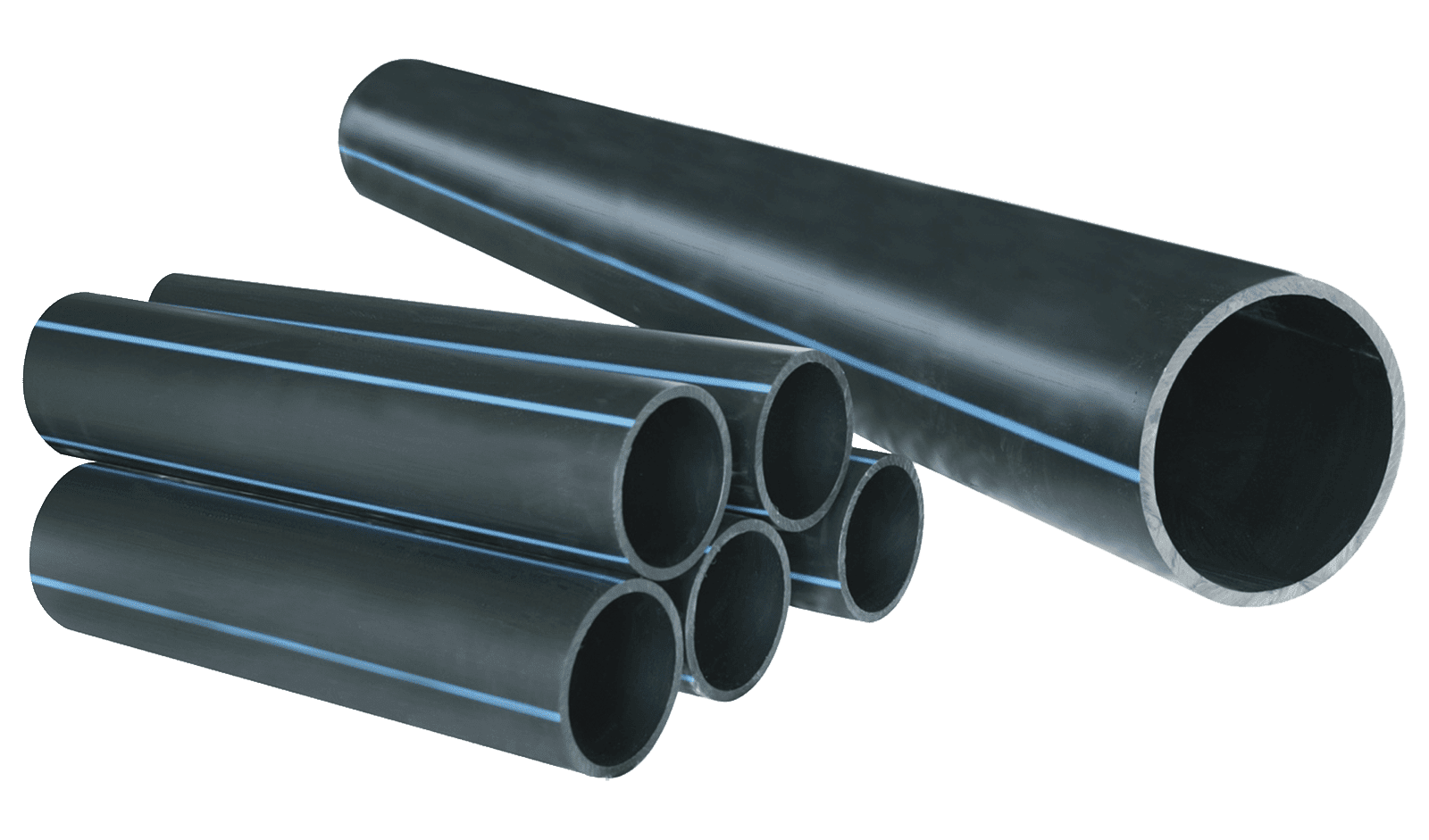

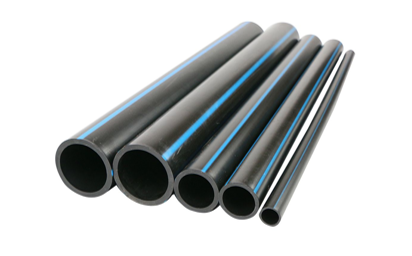

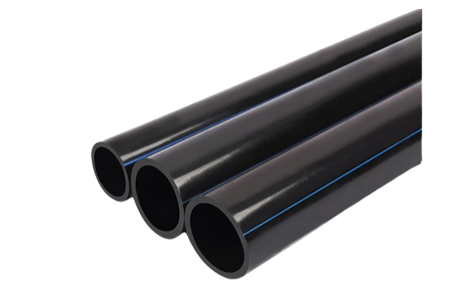

HDPE conduit is a type of plastic pipe that houses and protects cable wiring. It’s made from high-density polyethylene, a material known for its high strength-to-density ratio, making it a good choice for conduit applications. They can withstand higher pressure applications and are resistant to many types of chemical exposures. It has features in durability, corrosion resistance and longevity lifespan of up to 50 years.
Common Uses:
| Material | HDPE |
| Available PN | Ref. OD (mm) | Ref. ID (mm) | Ref. Thickness (mm) |
| PR-HSP-20-XX/XX | 20 | 16 | 2 |
| PR-HSP-32-XX/XX | 32 | 26 | 3 |
| PR-HSP-34-XX/XX | 34 | 28 | 3 |
| PR-HSP-40-XX/XX | 40 | 33 | 3.5 |
| PR-HSP-46-XX/XX | 46 | 38 | 4 |
| PR-HSP-50-XX/XX | 50 | 41 | 4.5 |
| PR-HSP-63-XX/XX | 63 | 53 | 5 |
| PR-HSP-80-XX/XX | 80 | 70 | 5 |
| PR-HSP-90-XX/XX | 90 | 80 | 6.5 |
| PR-HSP-110-XX/XX | 110 | 100 | 8 |
| PR-HSP-125-XX/XX | 125 | 115 | 9 |
| PR-HSP-140-XX/XX | 140 | 131 | 10 |
| PR-HSP-160-XX/XX | 160 | 150 | 11 |
| PR-HSP-180-XX/XX | 180 | 169 | 13 |
| PR-HSP-225-XX/XX | 225 | 211 | 16 |
| PR-HSP-250-XX/XX | 250 | 235 | 18 |
| PR-HSP-280-XX/XX | 280 | 263 | 20 |
*XX indicate the color
| Working Temperature | -40 to +80 ℃ |
| RoHS | Compliant |
