10× cycle life & 5× float life vs lead-acid, lowering replacement and total costs
40% weight, perfect drop-in replacement for lead-acid batteries
Double power output, high capacity sustained at high discharge rate
LFP design avoids explosion/combustion from impact, overcharge and short circuit
Supports UPSOC unstable charge and discharge utilization

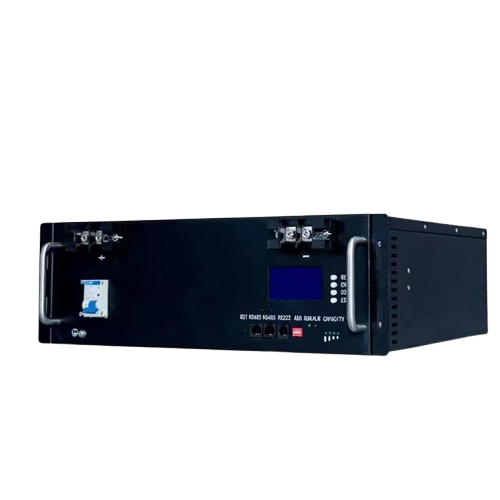

Lithium chargeable battery 48V 100A, 3U, cycle Life≥4000cycles, 442*430*133mm.
| Nominal Voltage | 48 V |
| Nominal Capacity | 100 Ah |
| Minimum Capacity | 97 Ah |
| Energy | 4800 Wh |
| Internal Resistance (ACR) | ≤ 30 mΩ |
| Cycle Life | ≥ 4000 cycles |
| Design Life | ≥ 10 years @ 25 ℃ |
| Self-Discharge (30 days) | ≤ 5 % @ 25 ℃ |
| Efficiency of Charge | ≥ 98 % |
| Efficiency of Discharge | ≥ 100 % @ 0.2 C |
| ≥ 96 % @ 0.5 C | |
| Charge Mode | 0.2 C to 54 V, then 54 V charge current to 0.02 C (CC/CV) |
| Max. Continuous Charge Current | 100 A |
| Max. Continuous Discharge Current | 100 A |
| Discharge Cut-off Voltage | ≤ 43.5 V |
| Water Dust Resistance | IP21 |
| Case | Iron (Insulation painting) |
| Dimensions(W*D*H) (excluding hanger and handle bar) | 442 * 430 * 133 mm |
| Max. Weight | ≤ 43 kg |
| Min. Gravimetric Specific energy | ≥ 112 Wh/kg |
| Parallel in maximum | 15 pcs |
| Charge Temperature Range | 0 to 45 ℃ |
| Discharge Temperature Range | -10 to 55 ℃ |
| Optimum Operation Temperature | 10 to 35 ℃ |
| Storage Temperature | -10 to 35 ℃,≤ 85 % Relative Humidity |
| Parallel Communication | RS485 |
| Battery with Equipment | RS485 |
| Battery Debugging Communication | RS232 |
| SOC Light | 4 * LED |
| Charge Current limit |
When the charging current exceeds the set value, turn on the current limit and limit the current to 20 A |
| SNMP | Yes |
| Dry Contact |
PIN1 to PIN2:Normally open, closed during low power PIN3 to PIN4:Normally open, closed during fault protection |
| Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3 | ||||||
| Battery cell cost advantage |

Lithium chargeable battery 48V 100A, 3U with gyroscope anti-theft function and GPS location support

Lithium chargeable battery 48V 100A, 3U with gyroscope anti-theft function
_495x300.png)
Lithium chargeable battery 48V 150A, 3U with gyroscope anti-theft function
