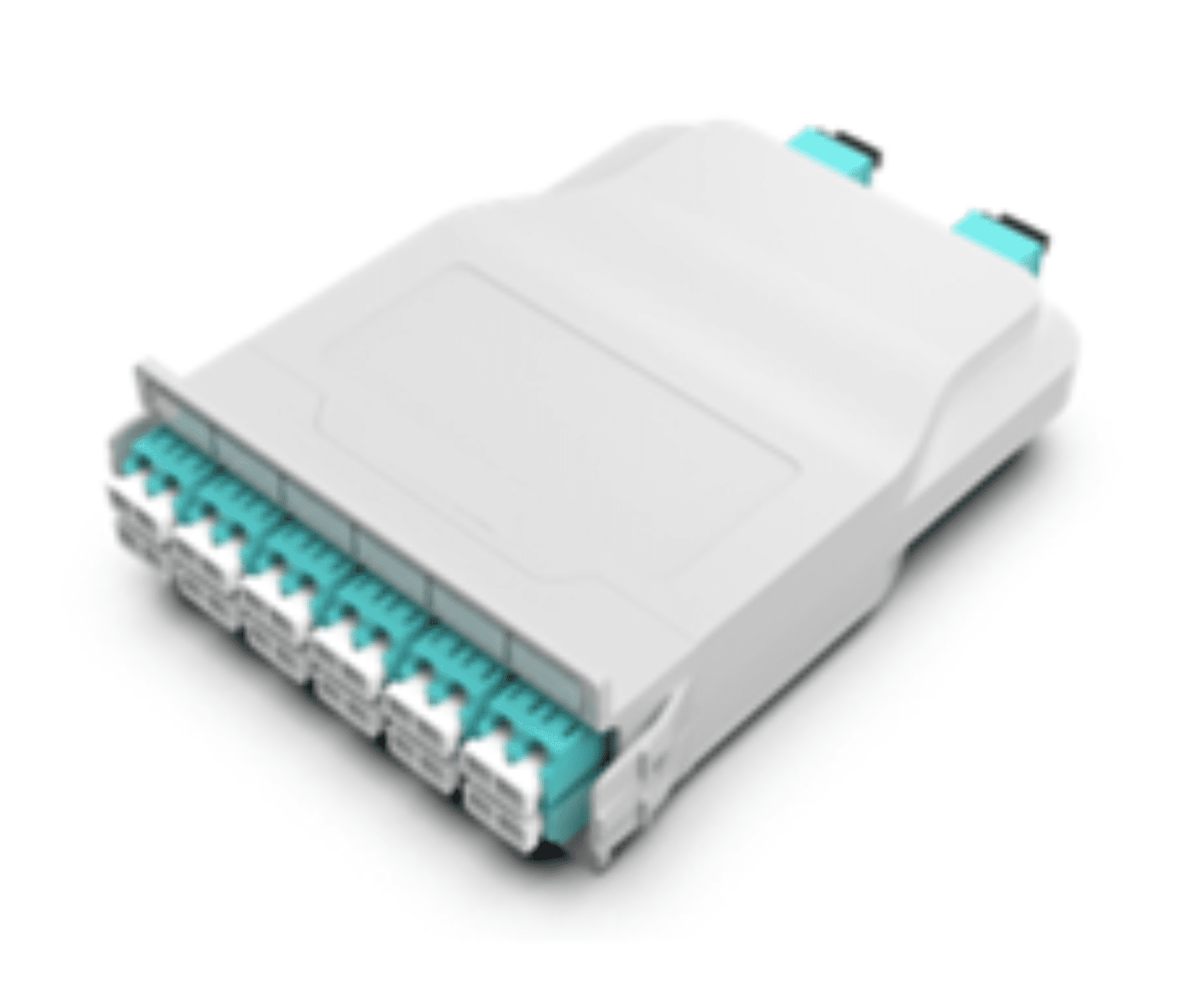

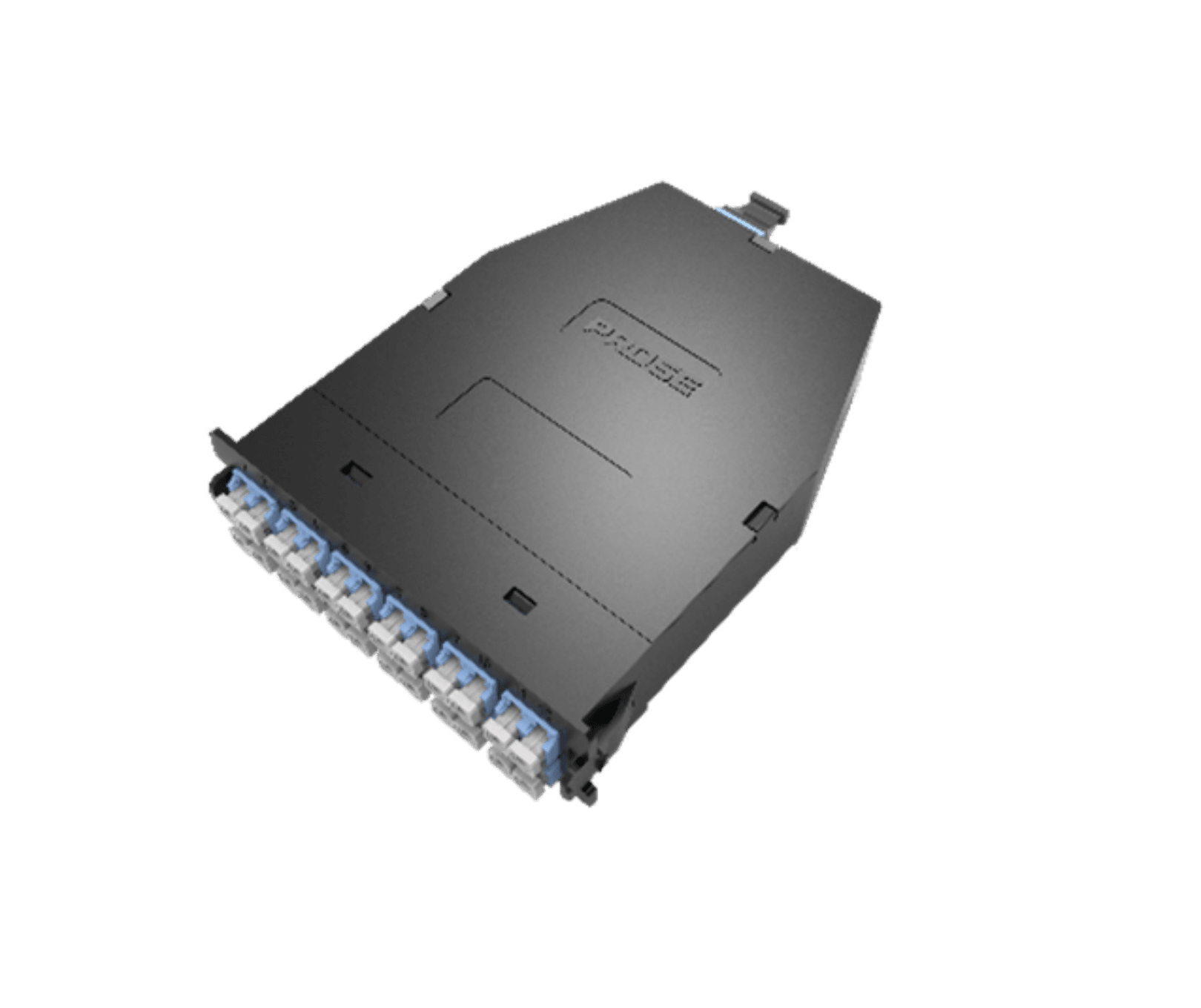

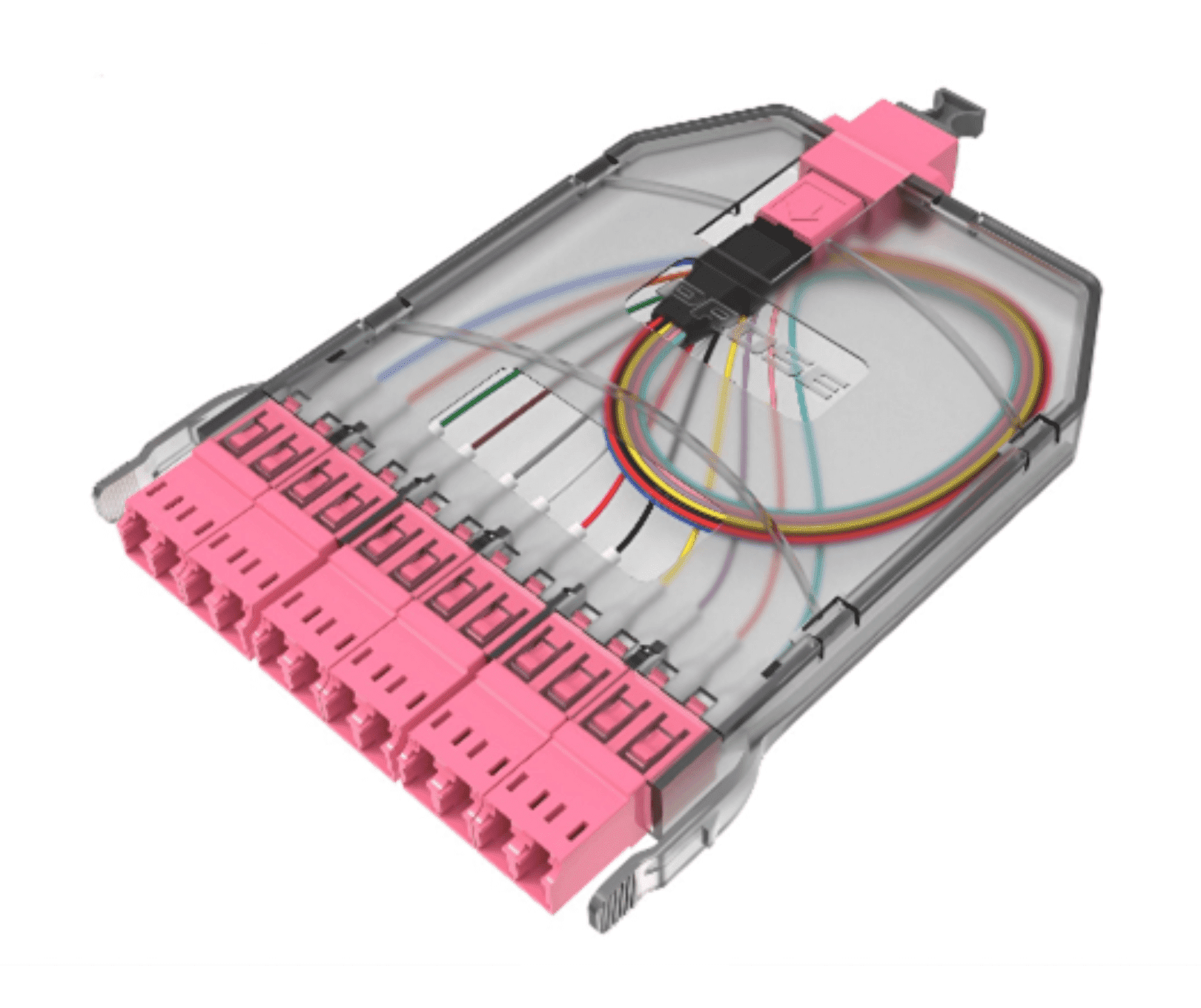

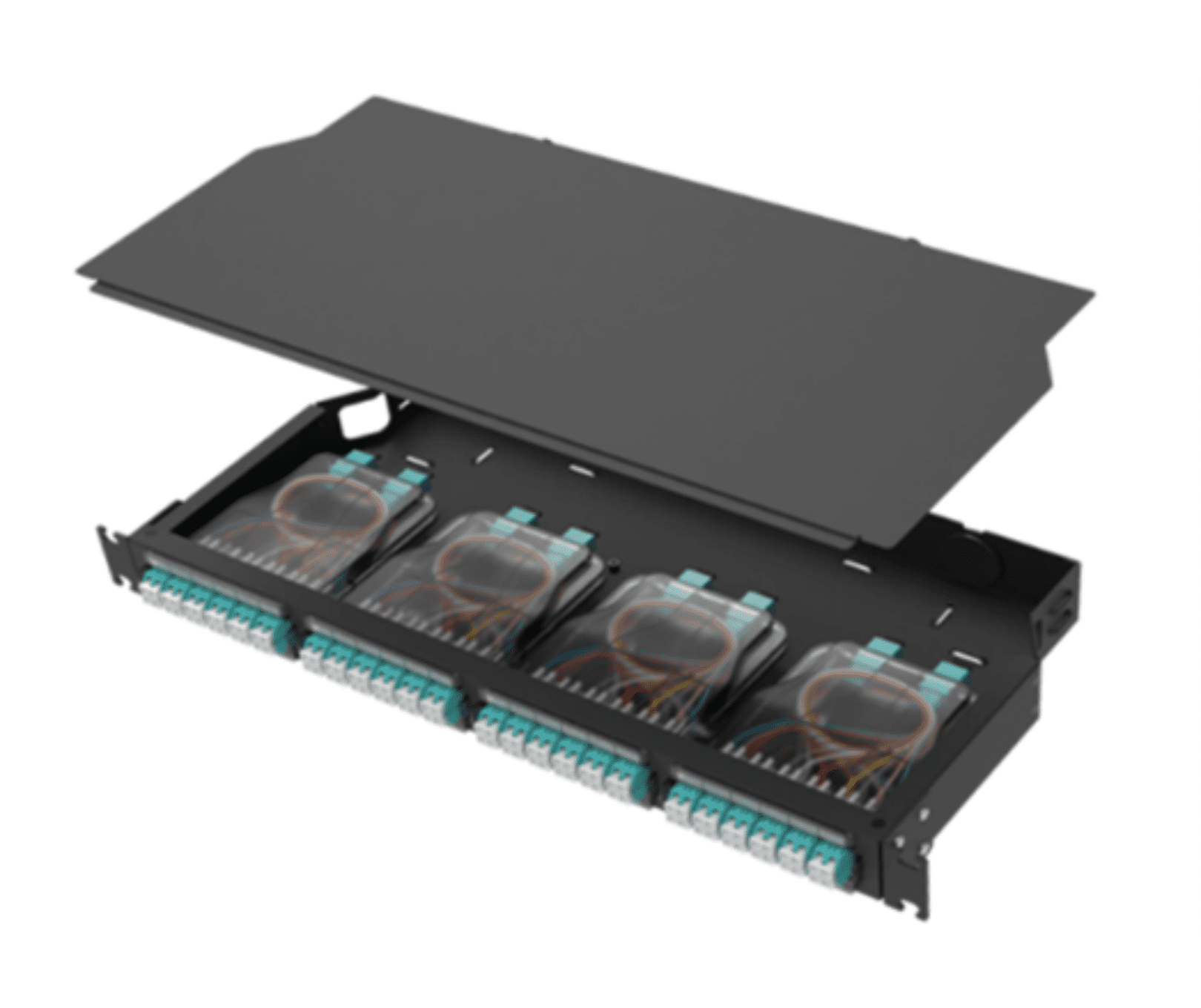

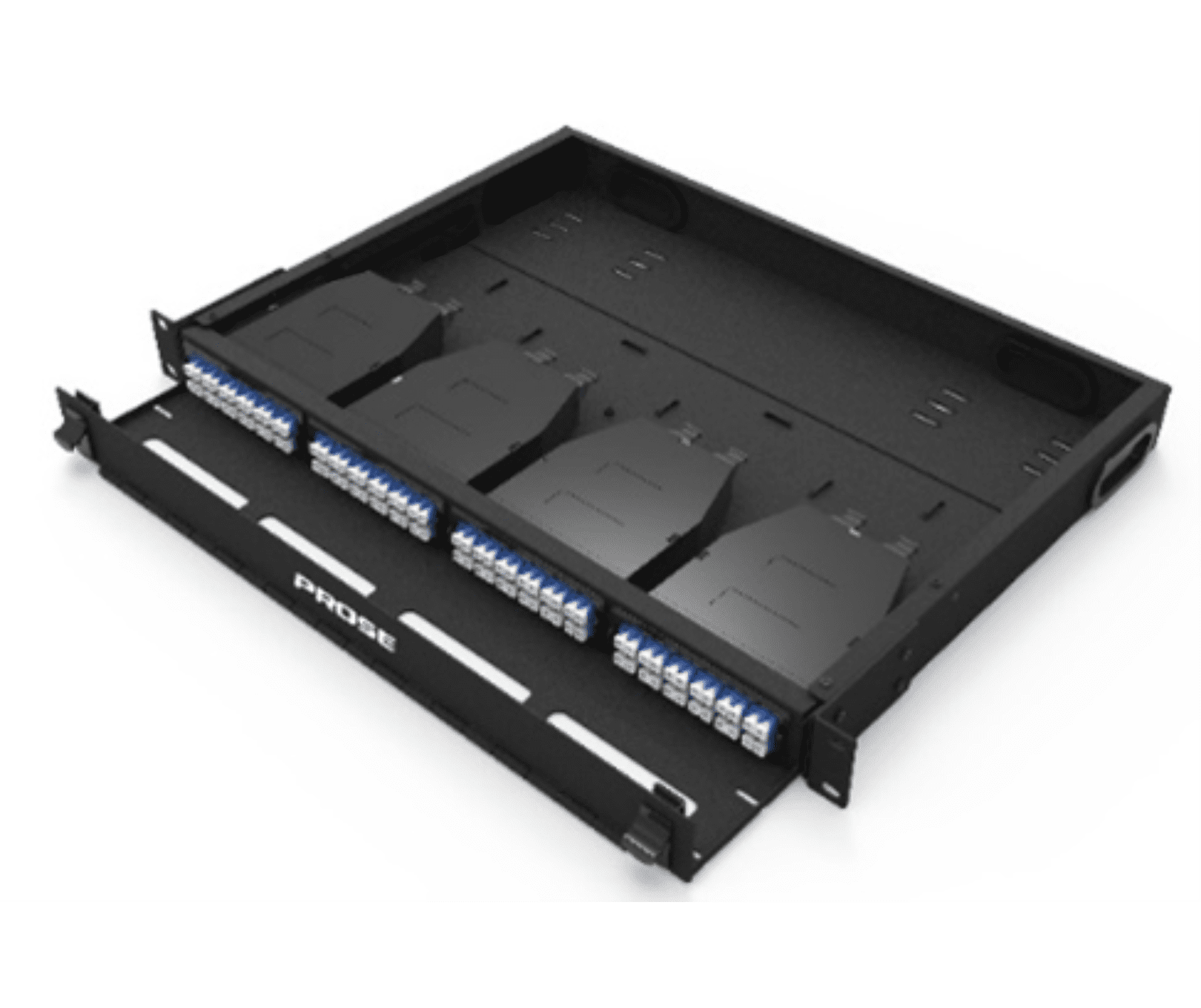

PROSE cassette supports a variety of optic fiber types including OS2, OM3, OM4 and OM5. PROSE provides 24 core MPO-LC general cassette matched with High Density Patch Panel of 96F/1HU,12 core MPO-LC thin cassette matched with Extra High Density Patch Panel of 144F/1HU.
It is designed for high density cabling, especially in Data Center.
12F and 24F cassettes are optional.
High quality MTP/MPO connectors for stable performance and low loss.
Polarity A, B, C and G are optional.
Pin-type installation, easy to plug, install and maintain.
| Fiber Type | OM3 | OM4 | G652D | |
| Rear Side A | Connector | MTP/MPO | MTP/MPO | MTP/MPO |
| IL (maximum) | ≤0.35dB | ≤0.35dB | ≤0.35dB | |
| RL (minimum) | ≥30dB | ≥30dB | ≥65dB | |
| Front Side B | Connector | LC | LC | LC |
| IL (maximum) | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| RL (minimum) | ≥35dB | ≥35dB | ≥35dB | |
| Housing Color | Aqua | Violet | Blue | |
| Installation Temperature Range | 0℃ to +50℃ | |||
| Operating Temperature Range | -20℃ to +60℃ | |||
