Excellent gain value for good coverage
Low VSWR
High reliability
High power handling
Compact design for easy installation
Customized connector is available

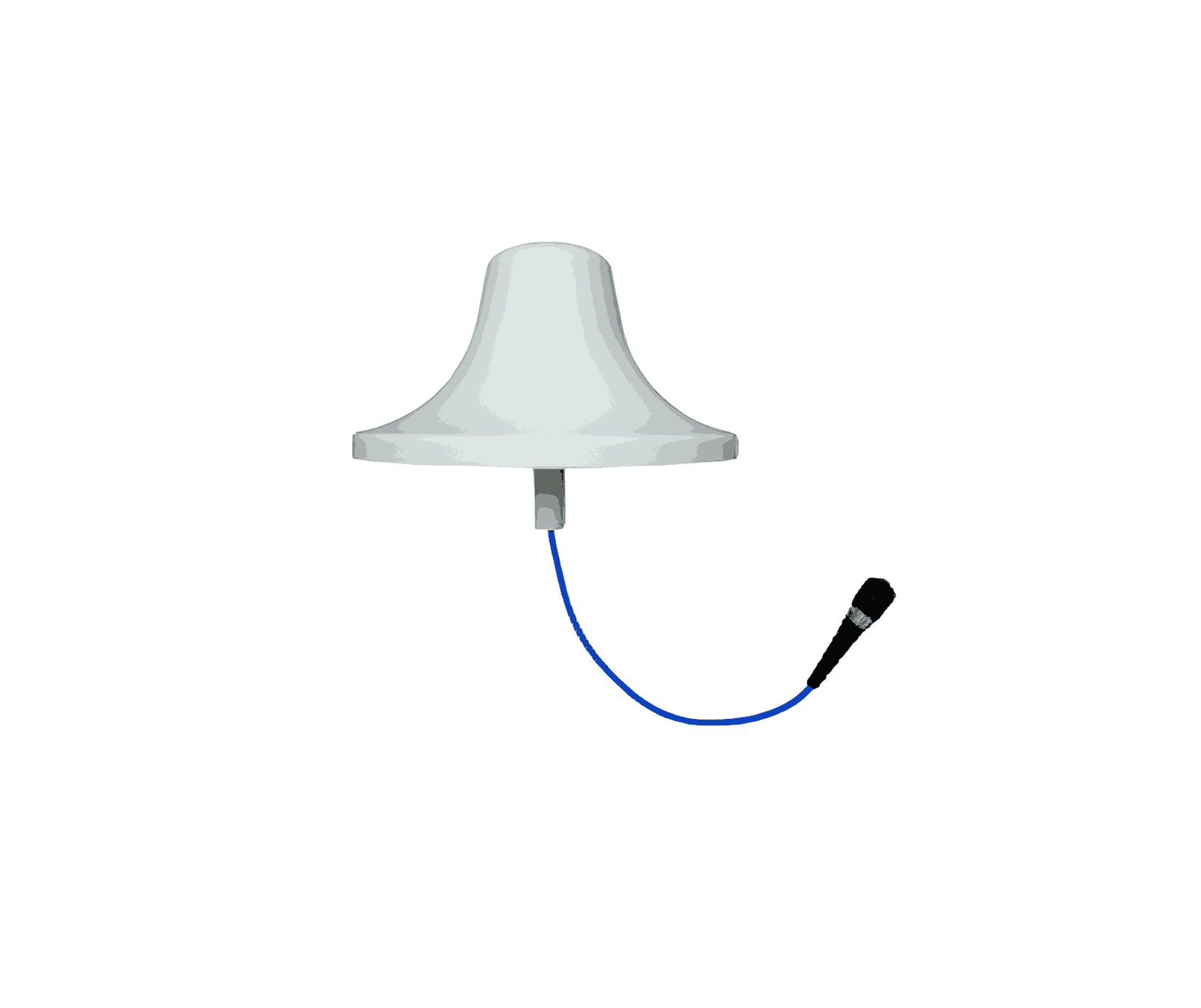

Indoor distributed antennas are mainly used in passive DAS systems or hybrid DAS systems to evenly radiate downlink signals in a certain area and simultaneously transmit uplink signals back to the receiver. Through different radiation designs such as omnidirectional, directional, and bidirectional, it can be applied to signal coverage applications in various scenarios.
| Frequency | 380-470 MHz |
| Gain | 2.0 dBi for low band |
| Vertical Beamwidth | 90° |
| Horizontal Beamwidth | 360° |
| Polarization | Vertical |
| VSWR | ≤2.5 |
| Power Handling | 50 W |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | Φ298×152 (mm) |
| Weight | 0.82 kg |
| Connectors Type | 4.3-10 female |
| Packing | 1Pcs in box |
