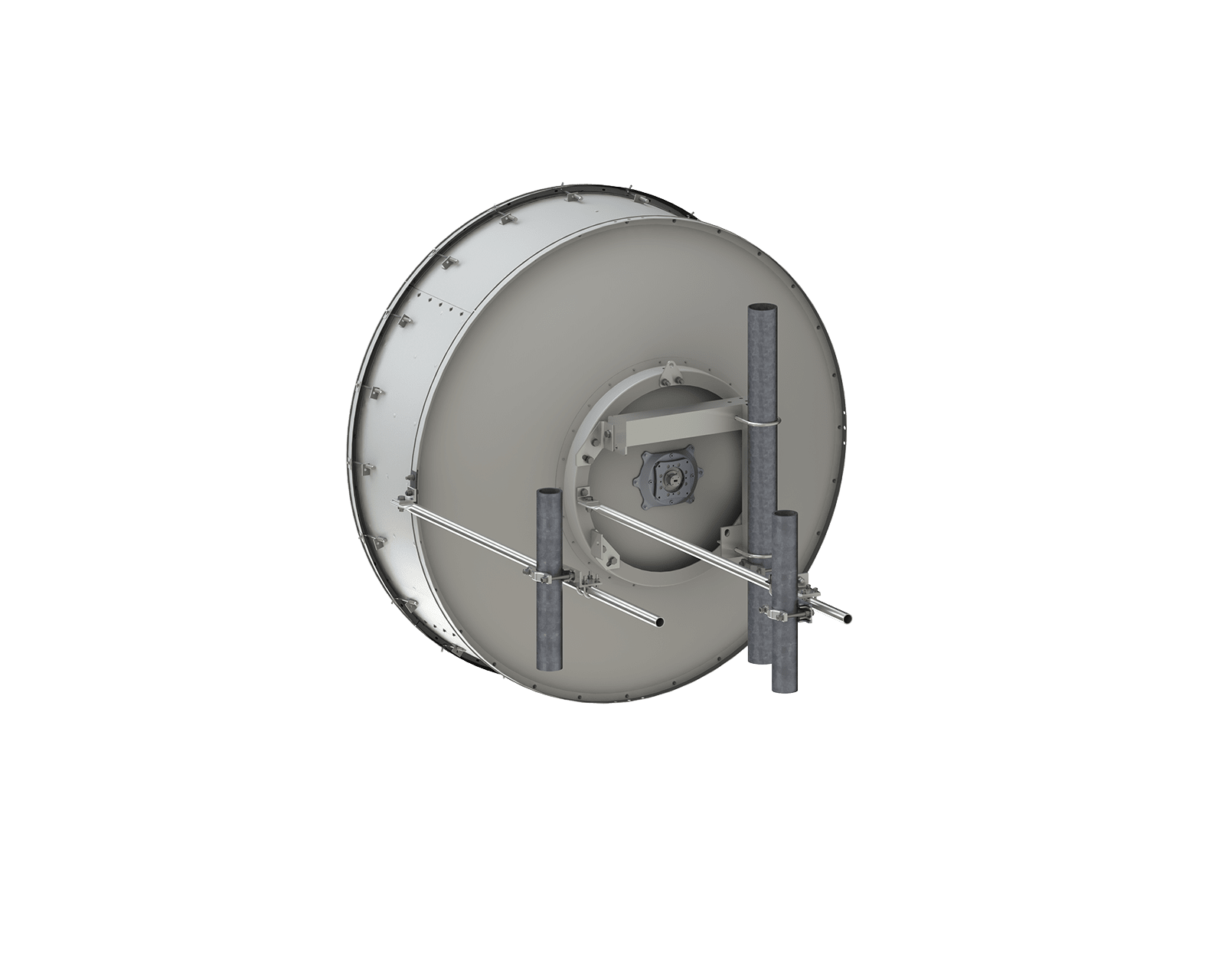

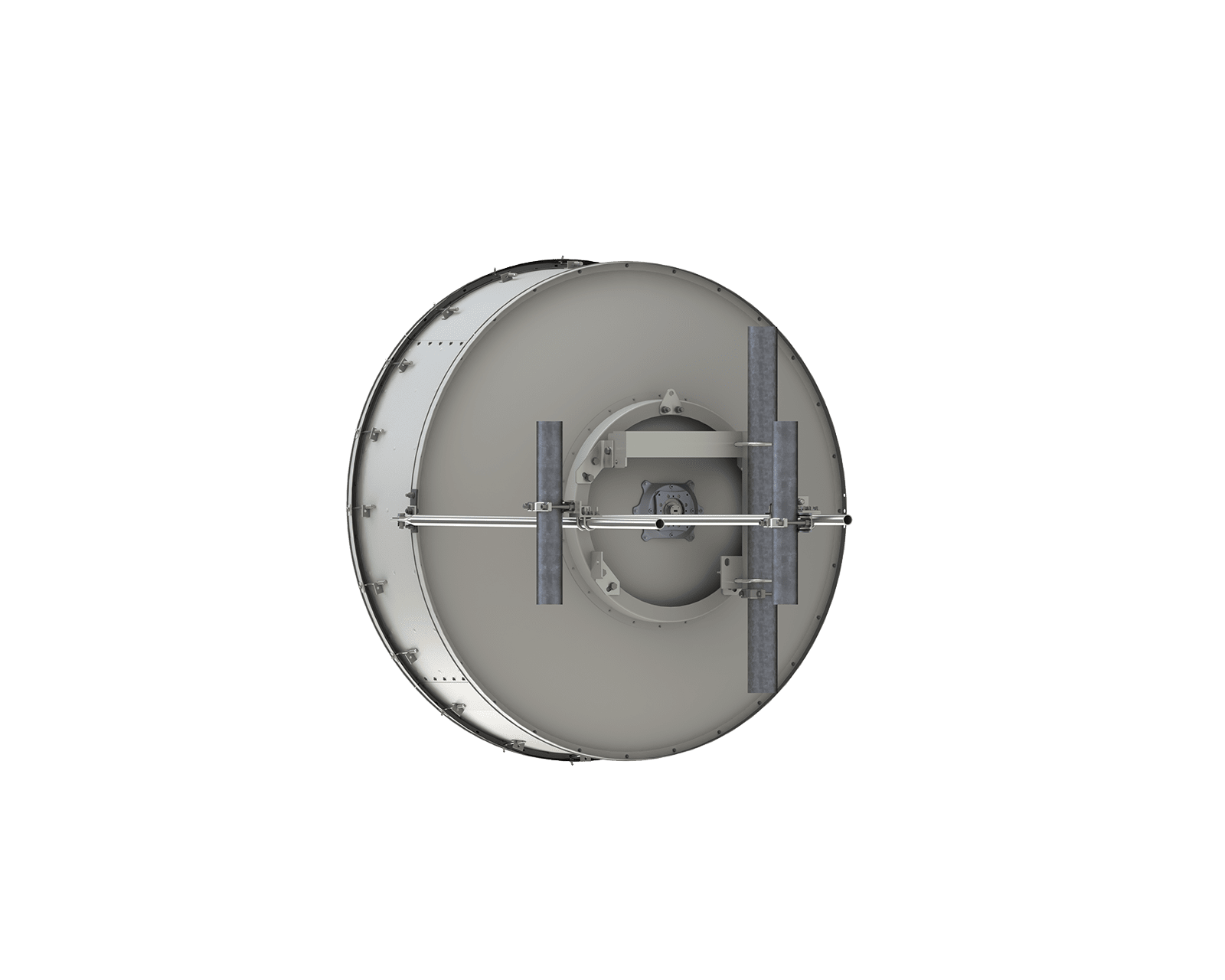

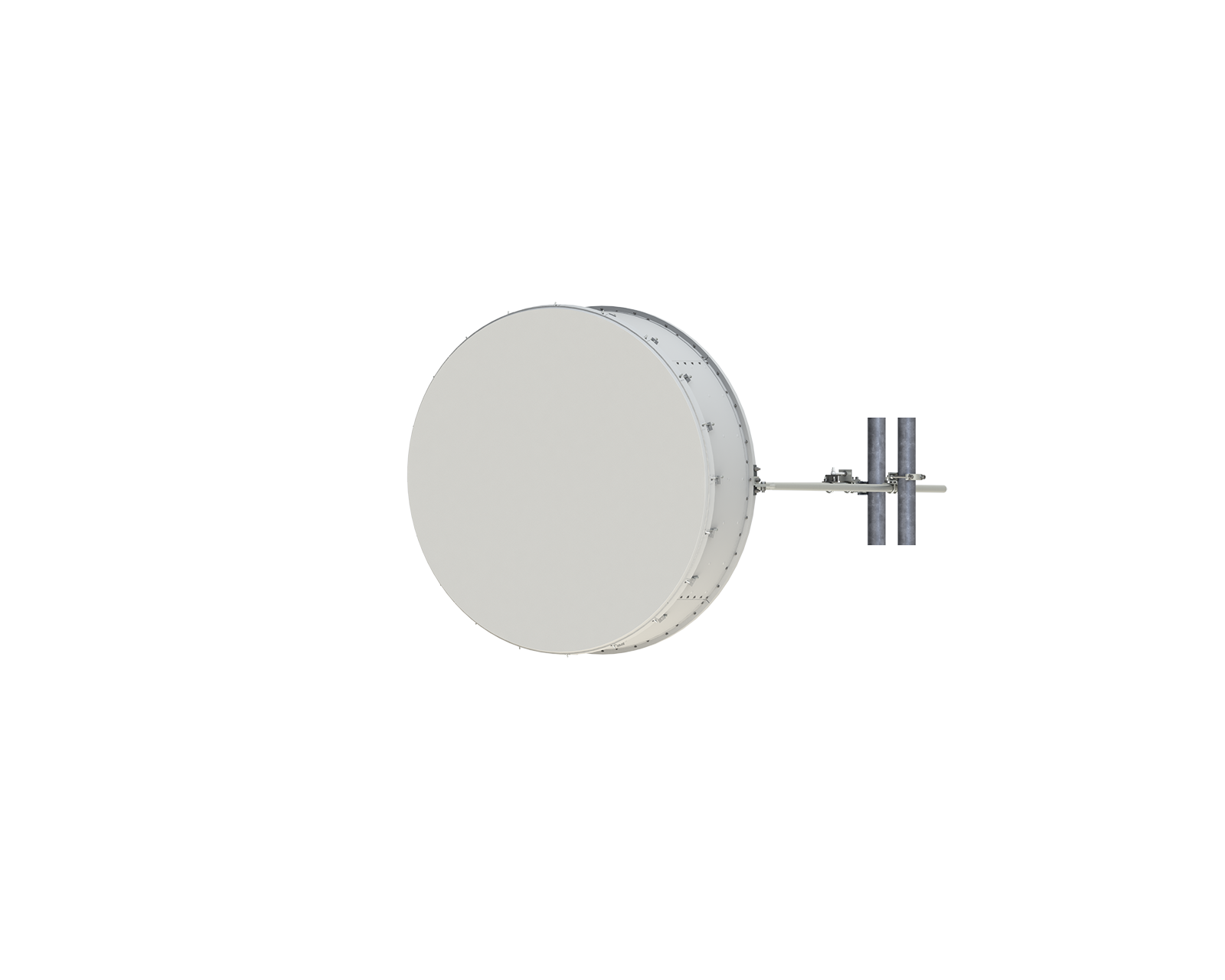

10ft | 3.0m High Performance Microwave Antenna
Dual polarized
10.000 - 11.700 GHz
Custom/Standard flange
White antenna, grey radome
3.0m High Performance Microwave Antenna
| Operating Frequency | 10.00-11.70 GHz |
| Gain, Low Band | 47.3 dBi |
| Gain, Mid Band | 48.1 dBi |
| Gain, High Band | 48.7 dBi |
| 3dB BW (Azimuth & Elevation) | 0.7 deg |
| VSWR (Return Loss) | 1.30 (-17.7 dB) |
| F/B Ratio | 74 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R1 Class3 | US FCC Part 101A @ 10.55- 10.7GHz | US FCC Part 101A @ 10.7-11.7GHz| Canada SRSP310.7 Part A |
| Radiation Pattern Envelope Number | RPE30-10W |
| Operating Temperature Range | -45°C to +65°C |
| Storage Temperature Range | -45°C to +65°C |
| Wind Speed, Operational | 108 km/h | 67 mph |
| Wind Speed, Survival | 198 km/h | 123 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±5° |
| Elevation Adjustment Range | ±5° |
| Packed Dimension, Length | 3260mm |128.35in |
| Packed Dimension, Width | 2250mm | 88.58in |
| Packed Dimension, Height | 2550mm | 100.39in |
| Net Weight | 236 kg | 520.3 lb |
| Pole diameter | 120 mm | 5 in |
| Side struts, included | 3 |
