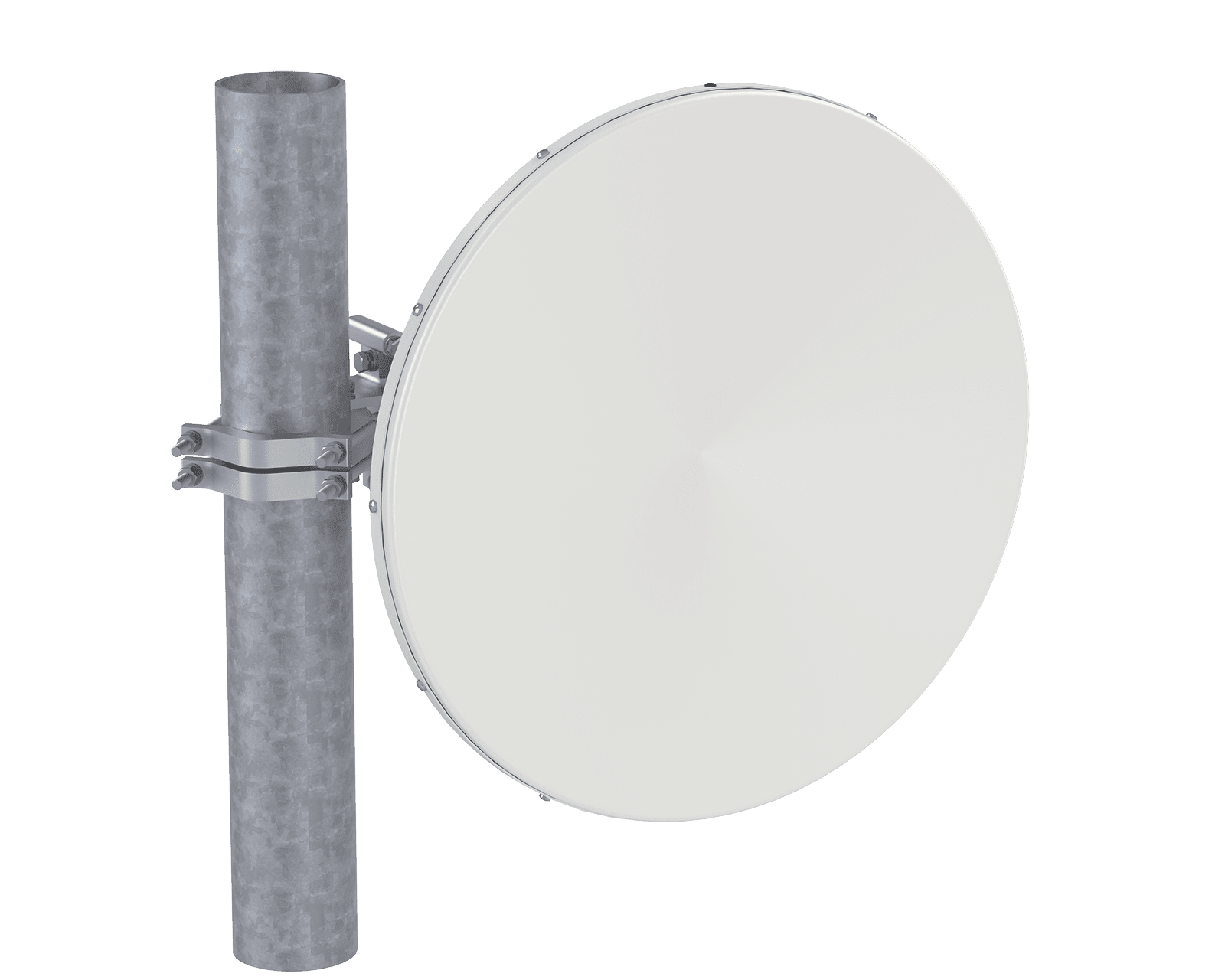

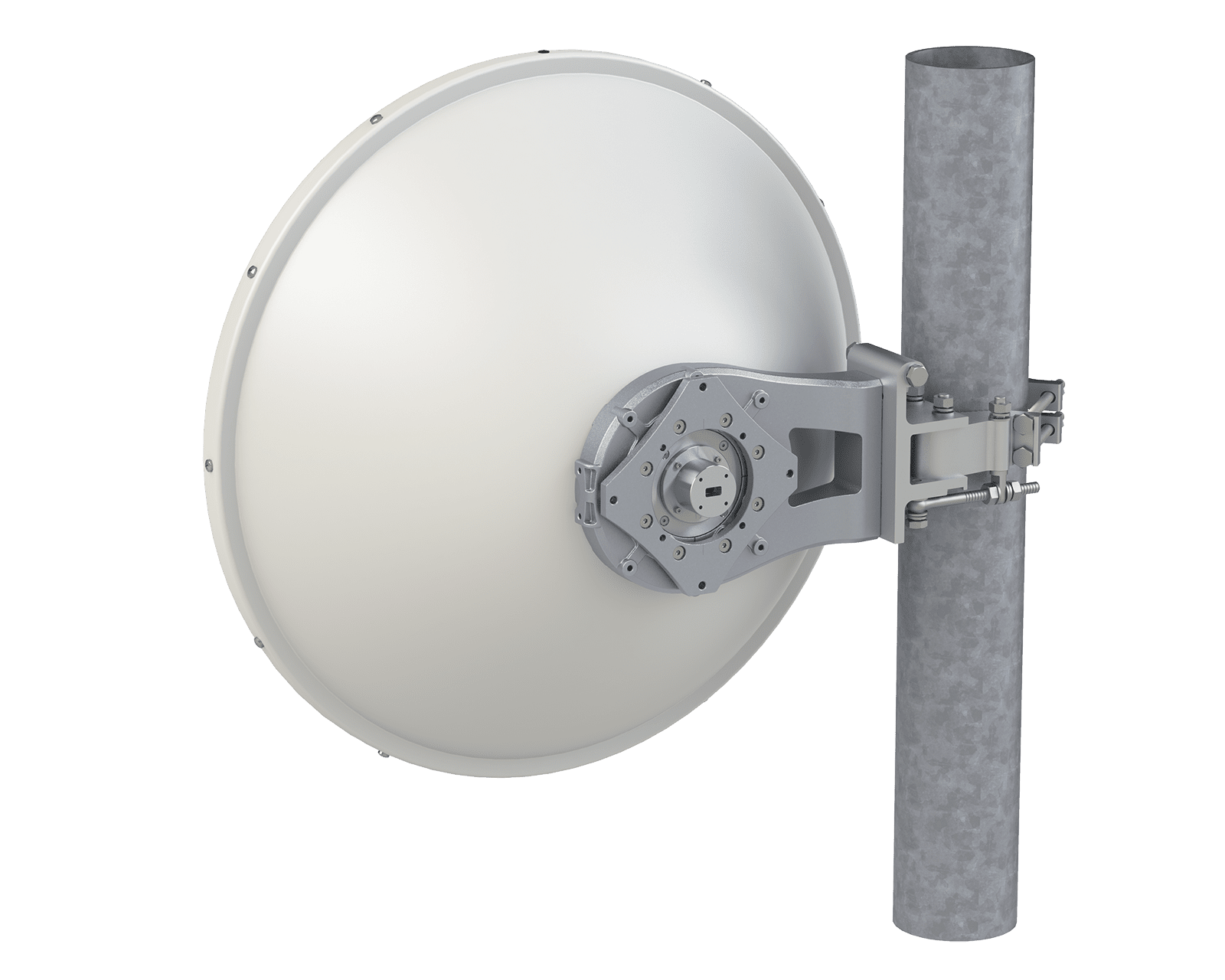

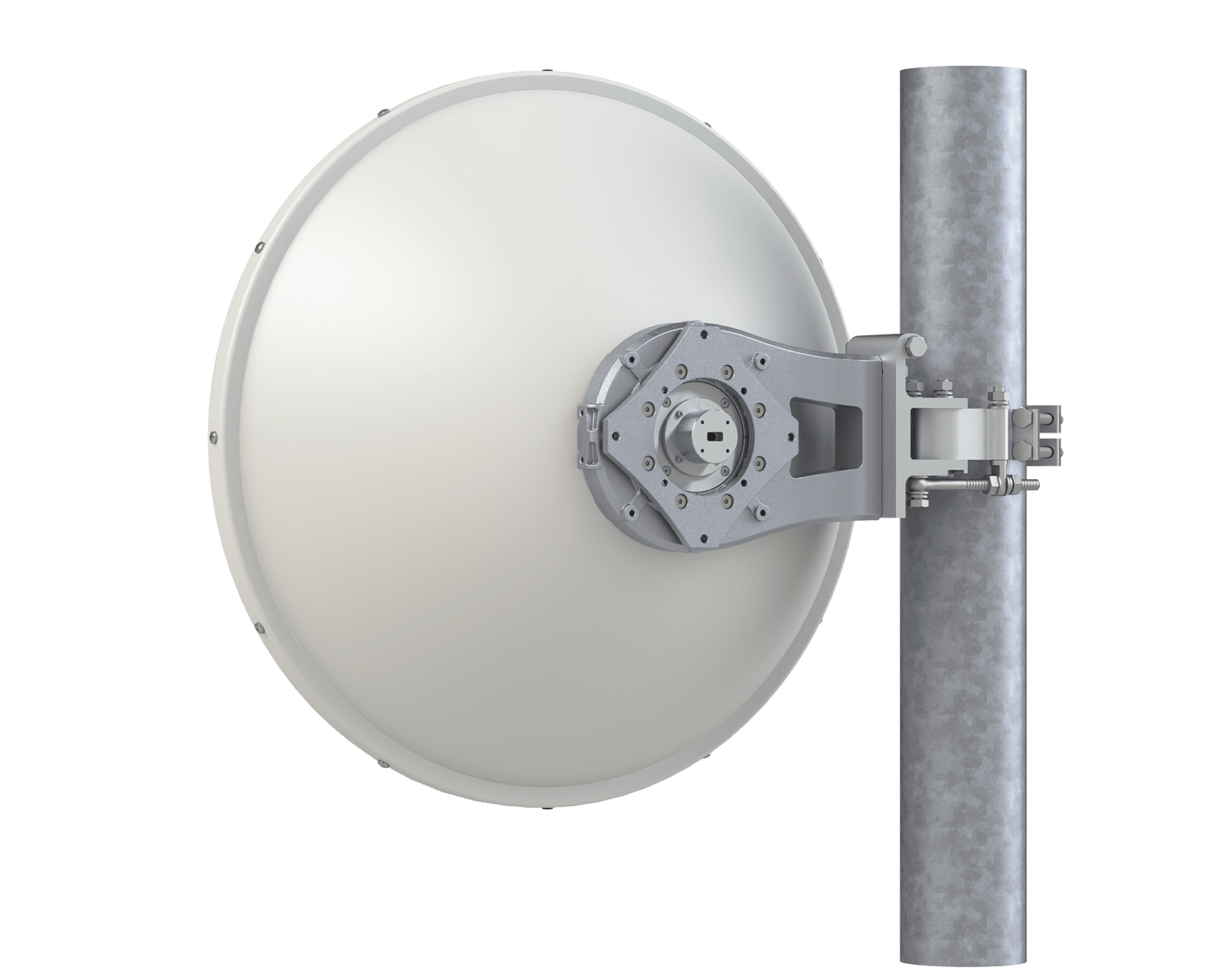

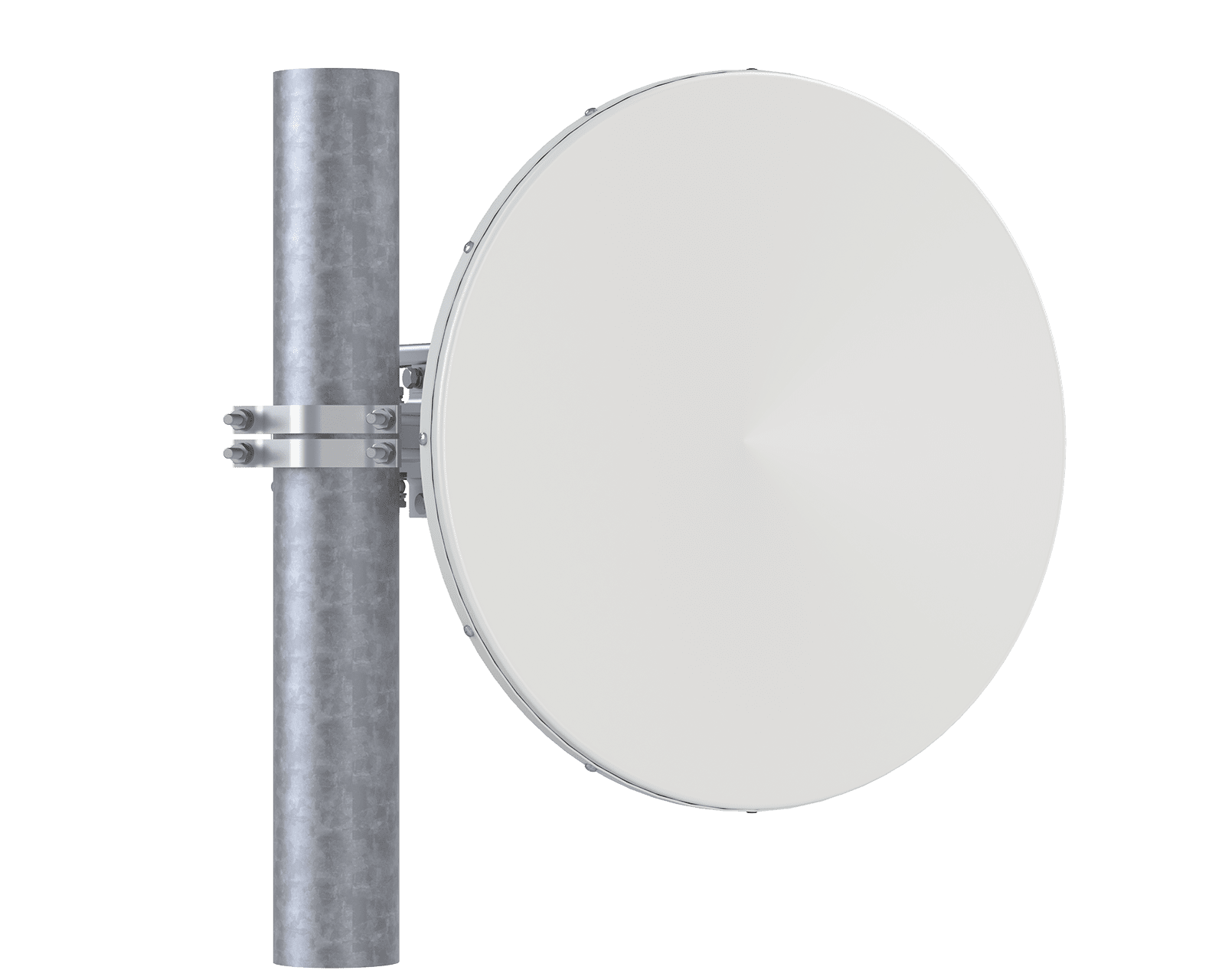

2ft | 0.6m High Performance Microwave Antenna
Dual polarized
17.700 – 19.700 GHz
Custom/Standard flange
White antenna, grey radome
0.6m High Performance Microwave Antenna
| Operating Frequency | 17.70-19.70 GHz |
| Gain, Low Band | 38.6 dBi |
| Gain, Mid Band | 39.0 dBi |
| Gain, High Band | 39.4 dBi |
| 3dB BW (Azimuth & Elevation) | 2.1 deg |
| VSWR (Return Loss) | 1.30 (-17.7 dB) |
| F/B Ratio | 67 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R2 Class3 | US FCC Part 101A |
| Radiation Pattern Envelope Number | RPE06-18 |
| Operating Temperature Range | -55°C to +70°C |
| Storage Temperature Range | -55°C to +70°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±15° |
| Elevation Adjustment Range | ±15° |
| Packed Dimension, Length | 710mm | 27.95in |
| Packed Dimension, Width | 710mm | 27.95in |
| Packed Dimension, Height | 415mm | 16.34in |
| Net Weight | 11.7 kg | 25.8 lb |
| Pole Diameter | 50-120 mm | 2-5 in |
| Side Struts, Included | 0 |
| Axial Force (FA) | 1281 N | 288 lbf |
| Side Force (FS) | 632 N | 142 lbf |
| Twisting Moment (MT) | 480 N.M | 354 lbft |
| Angle α for MT Max | 0° |
