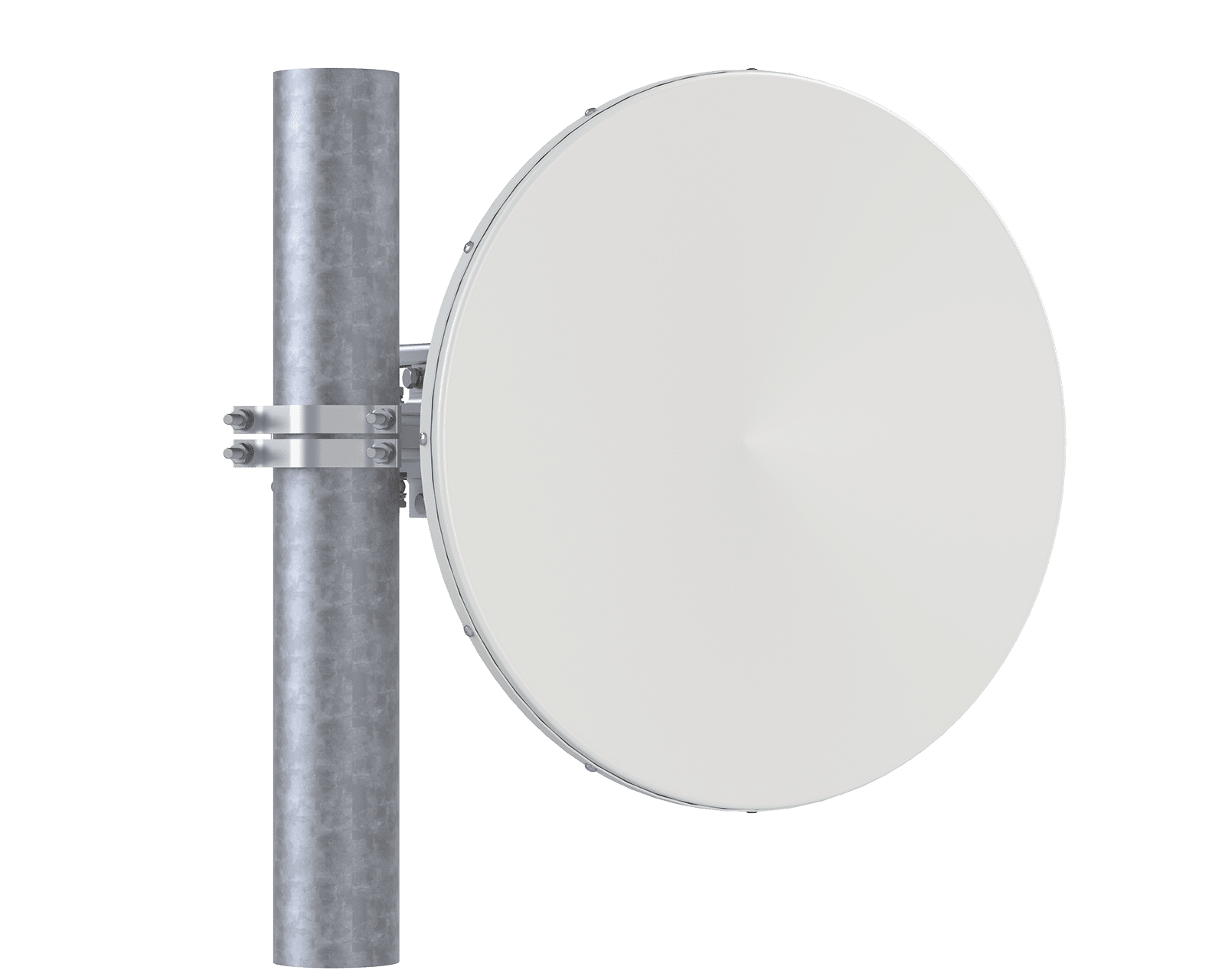

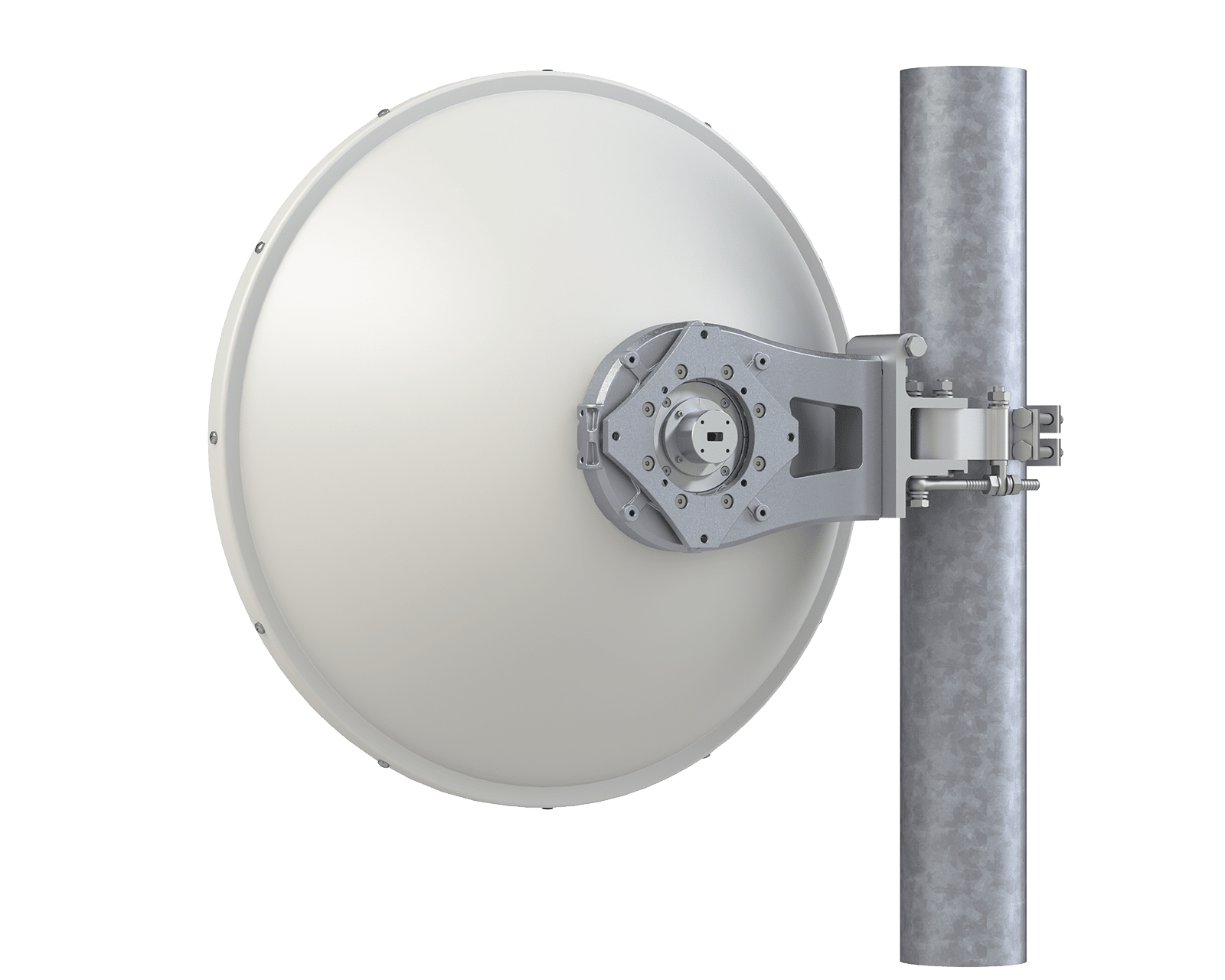

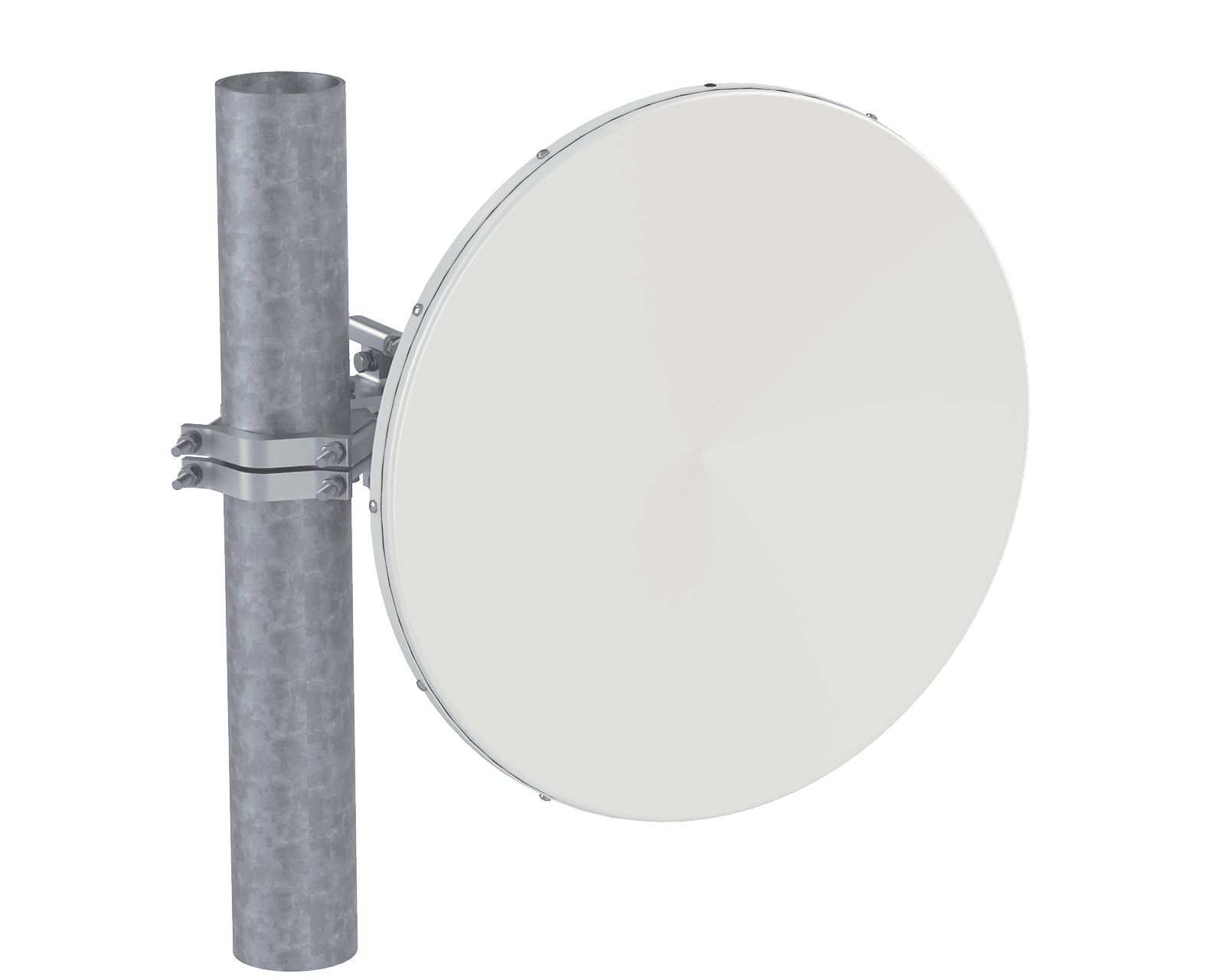

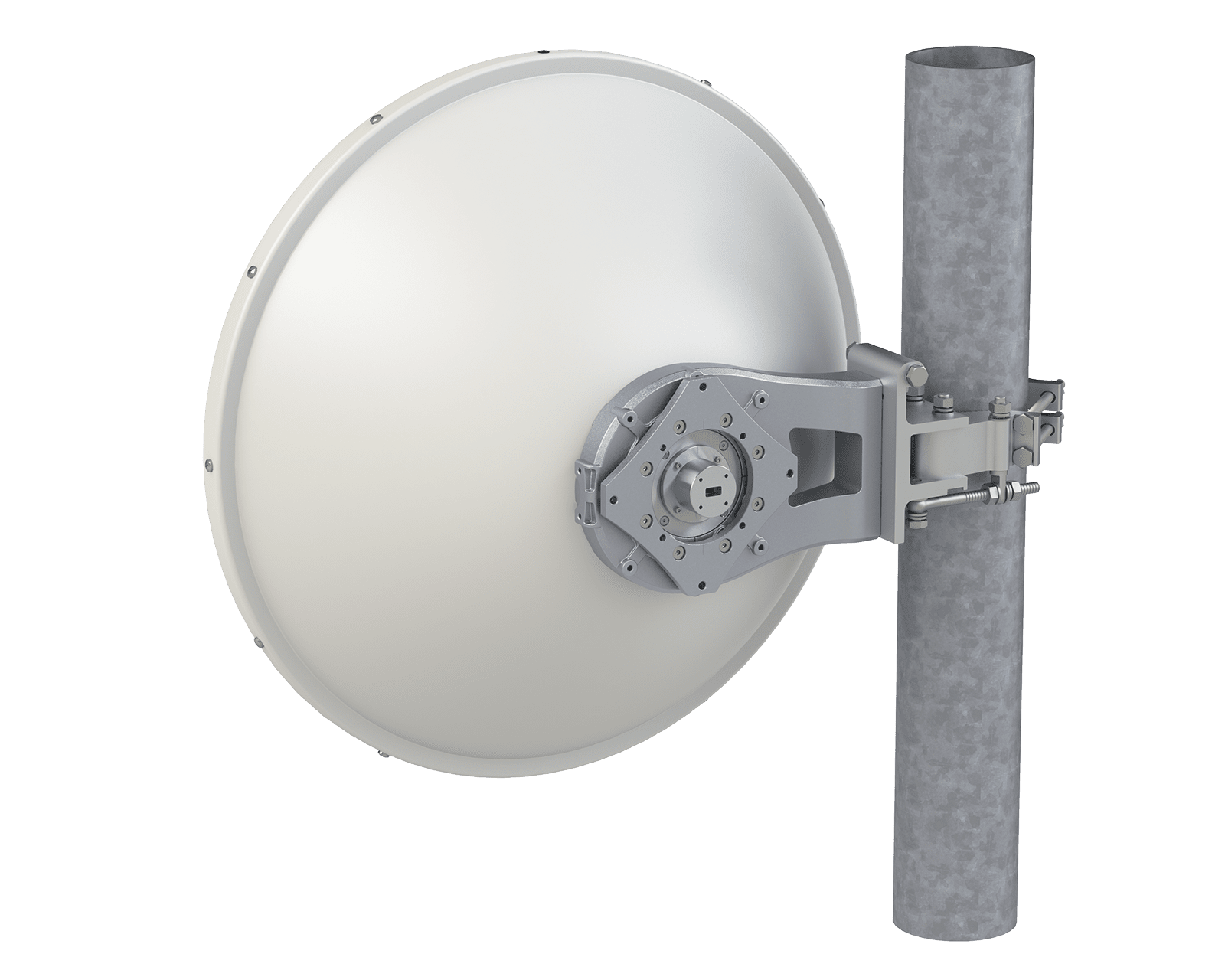

1ft | 0.3m High Performance Microwave Antenna
Dual polarized
27.500 – 29.500 GHz
Custom/Standard flange
White antenna, grey radome
0.3m High Performance Microwave Antenna
| Operating Frequency | 27.50-29.50 GHz |
| Gain, Low Band | 37.6 dBi |
| Gain, Mid Band | 38.1 dBi |
| Gain, High Band | 38.3 dBi |
| 3dB BW (Azimuth & Elevation) | 2.2 deg |
| VSWR (Return Loss) | 1.38 (-16 dB) |
| F/B Ratio | 64 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R4 Class3 |
| Radiation Pattern Envelope Number | RPE03-28 |
| Operating Temperature Range | -55°C to +70°C |
| Storage Temperature Range | -55°C to +70°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±15° |
| Elevation Adjustment Range | ±15° |
| Packed Dimension, Length | 450mm | 17.72in |
| Packed Dimension, Width | 255mm | 10.04in |
| Packed Dimension, Height | 465mm | 18.31in |
| Net Weight | 4.6 kg | 10.14 lb |
| Pole Diameter | 50-120 mm | 2-5 in |
| Side Struts, Included | 0 |
| Axial Force (FA) | 435 N | 98 lbf |
| Side Force (FS) | 214 N | 48 lbf |
| Twisting Moment (MT) | 126 N.M | 93 lbft |
| Angle α for MT Max | 0° |
