Antenna frequency: 698-960 + 4x(1695-2690)(twin beam) MHz
3dB azimuth beamwidth: 65 / 33 (°)
Gain: 16.0/18.9 (dBi)
Electrical downtilt: 2-12/2-10 (°)
Connector: 10 x 4.3-10 female
Dimension: 2090 x 448 x 188 (mm)
Status of product: general available
Dual Twin Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 698-960 + 4x(1695-2690)(twin beam) MHz |
| Gain | 16.0/18.9 dBi |
| 3dB Azimuth Beamwidth | 65 °/ 33 ° |
| Electrical Downtilt | 2-12 ° / 2-10 ° |
| 1st Upper Sidelobe Suppression | > 15 /> 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Inter - Cluster Isolation | > 28 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

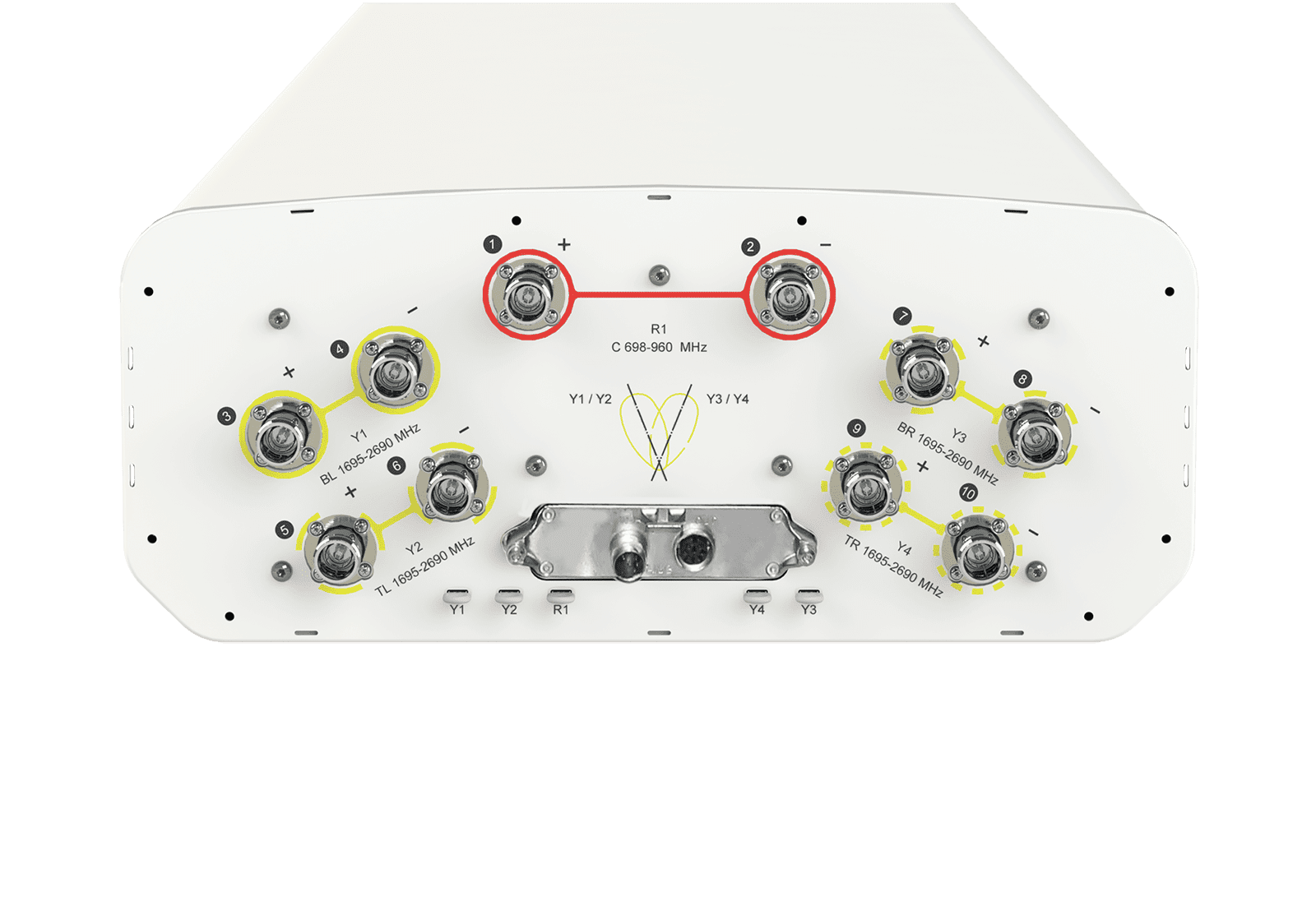

| Connector Type | 10 x 4.3-10 female |

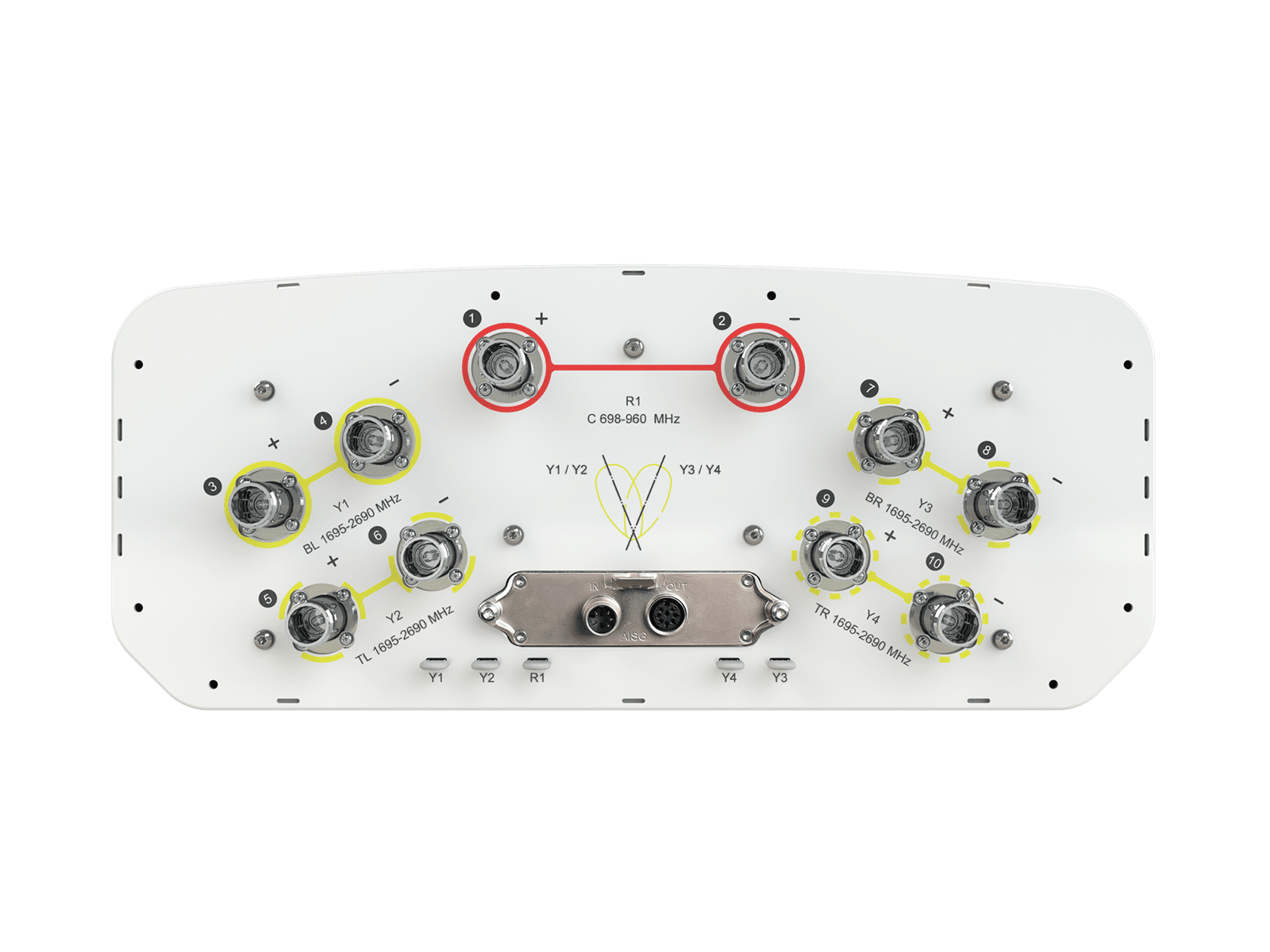

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2090 x 448 x 188 mm | 82.3 x 17.6 x 7.4 in |
| Survival Wind speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1003 N | 225 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |

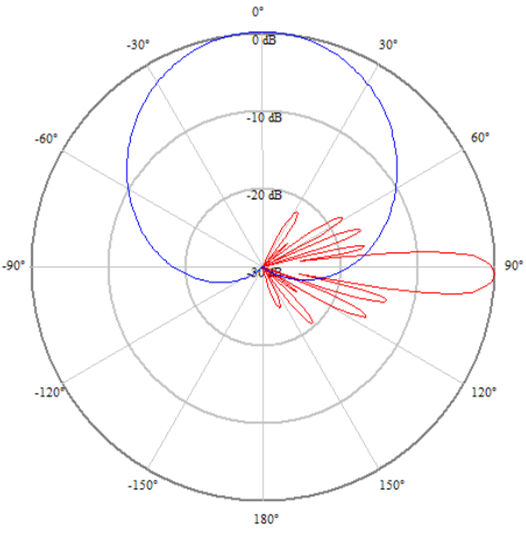

| 698-960 | 1695-2690 |
![]() |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | 85-3 | 7.3 kg / 16.1 lb | 0-10 |
