Antenna frequency: 9 x (1695-2690) MHz
3dB azimuth beamwidth: 7.5 °
Gain: 24.2 dBi
Electrical downtilt: Fixed 6 °
Connector: 18 x 4.3-10 female
Dimension: 900 x 1644 x 116 mm
Status of product: general available

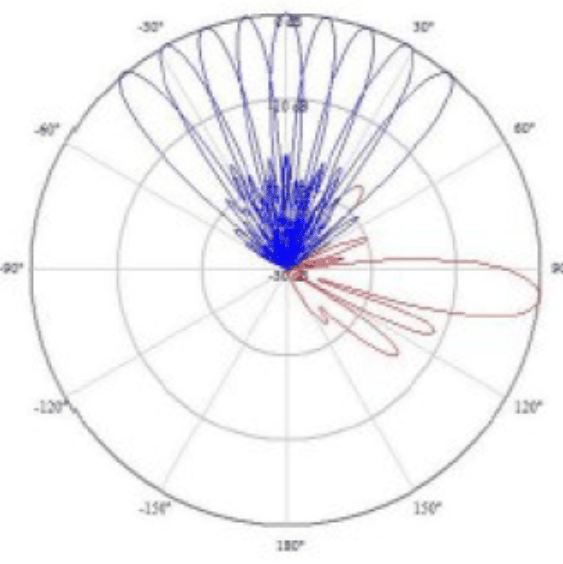

Nona Beam Antenna
Fixed Electrical Tilt
| Frequency | 9 x (1695-2690) MHz |
| Gain | 24.2 dBi |
| 3dB Azimuth Beamwidth | 7.5 ° |
| Electrical Downtilt | Fixed 6 ° |
| 1st Upper Sidelobe Suppression | > 15 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Inter - Cluster Isolation | > 15 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 18 x 4.3-10 female |

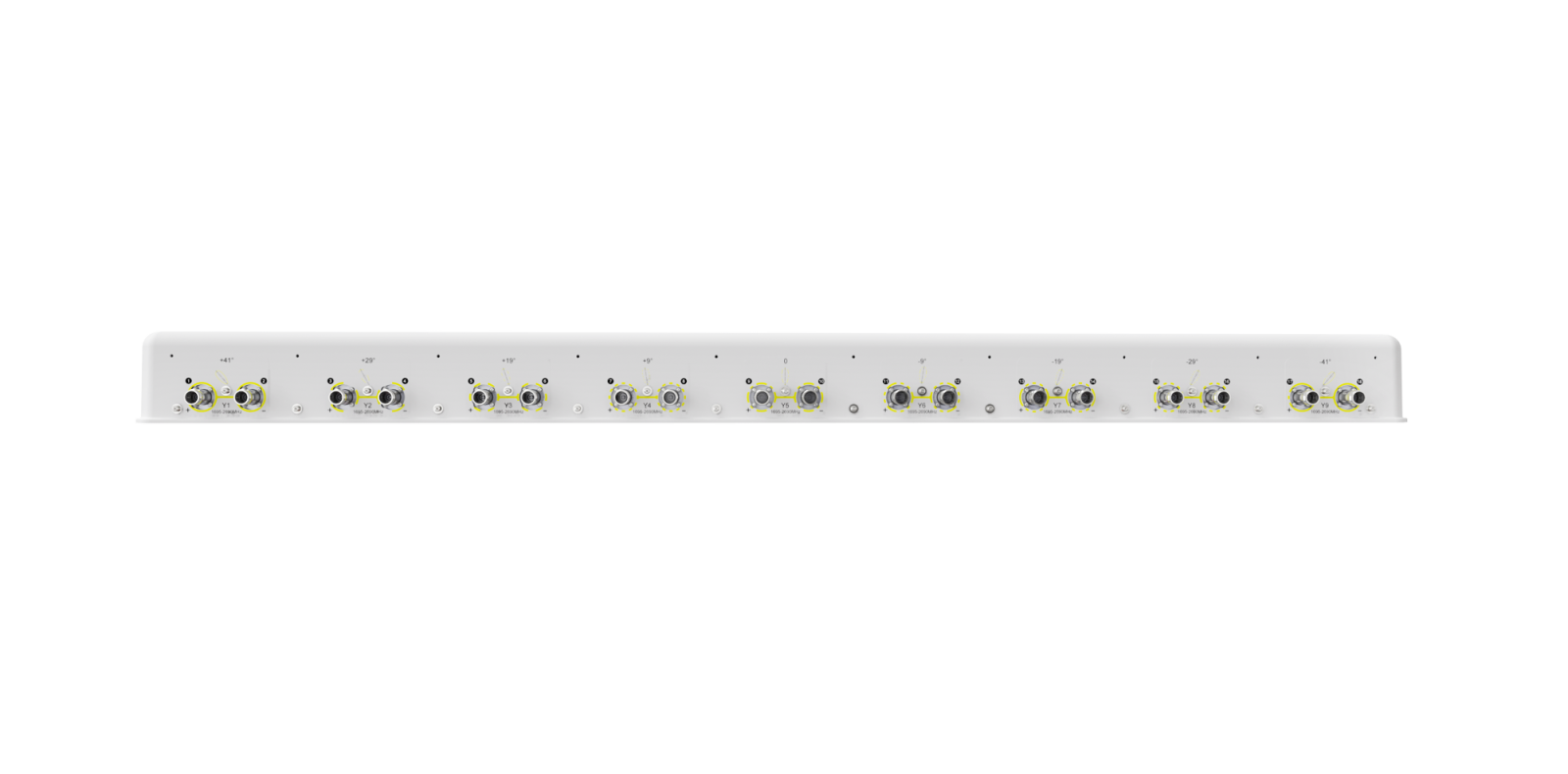

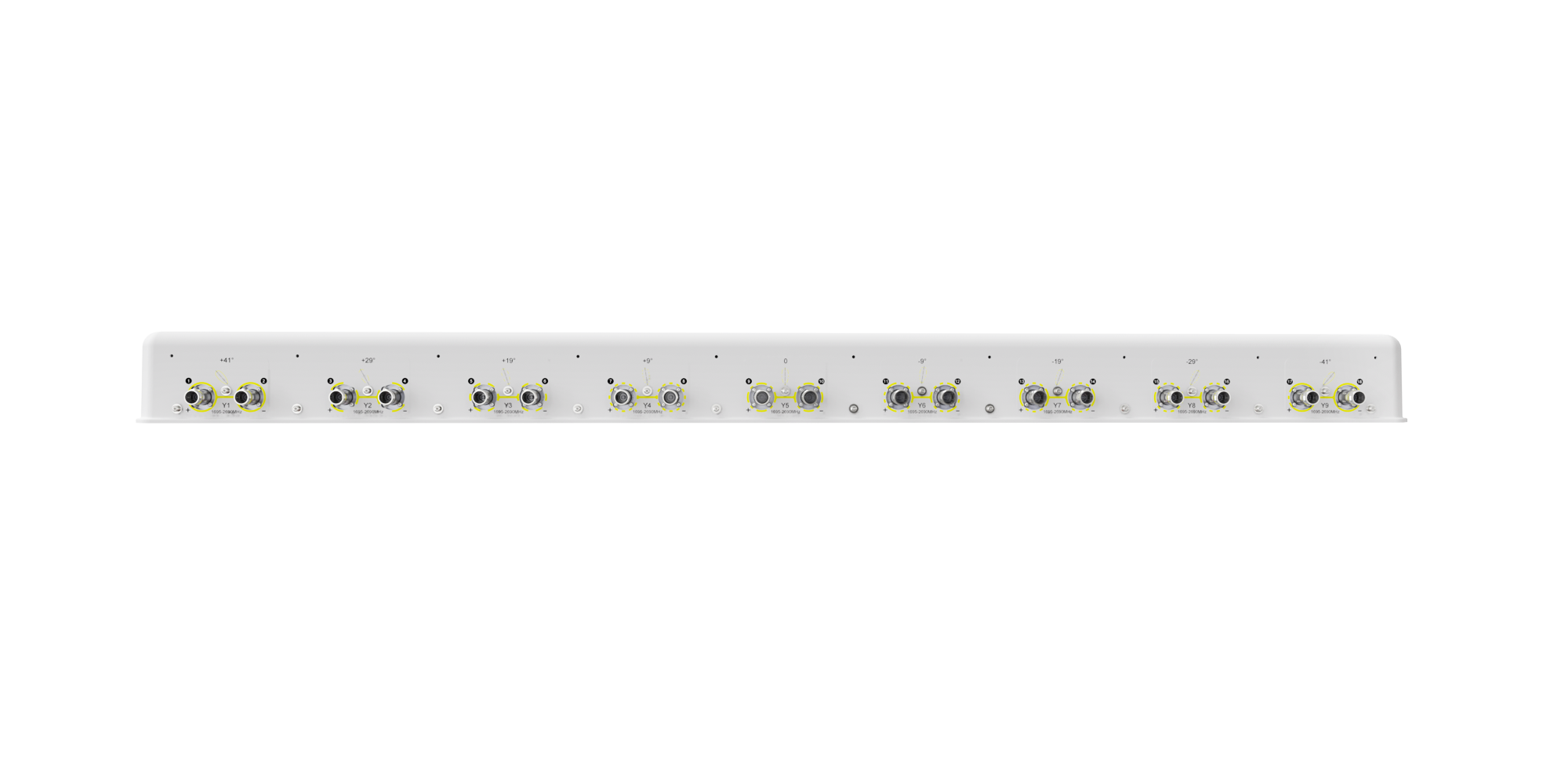

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 900 x 1644 x 116 mm | 5.4 x 64.7 x 4.6 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1900 N | 427 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| 1695-2690 |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | 2 x 85-1 | 2 x 4.5 kg / 9.9 lb | 0-10 |
