Antenna frequency: 1x(698-960) + 4x(1695-2690) + 4x(3300-3800) MHz
3dB azimuth beamwidth: 65/65/90 °
Gain: 15/16.3/15.9 dBi
Electrical downtilt: 2-12/2-12/2-12 °
Connector: 10 x 4.3-10 female, 1 x MQ4 1 x MQ5
Dimension: 1600 x 396 x 190 mm
Status of product: general available
FDD+TDD Beamforming
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 1x(698-960) + 4x(1695-2690) + 4x(3300-3800) MHz |
| Gain | 15/16.3/15.9 dBi |
| 3dB Azimuth Beamwidth | 65/65/90 ° |
| Electrical Downtilt | 2-12/2-12/2-12 ° |
| 1st Upper Sidelobe Suppression | > 15/> 15/> 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25/> 25/> 25 |
| Inter - Cluster Isolation | > 25/> 25/> 25 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

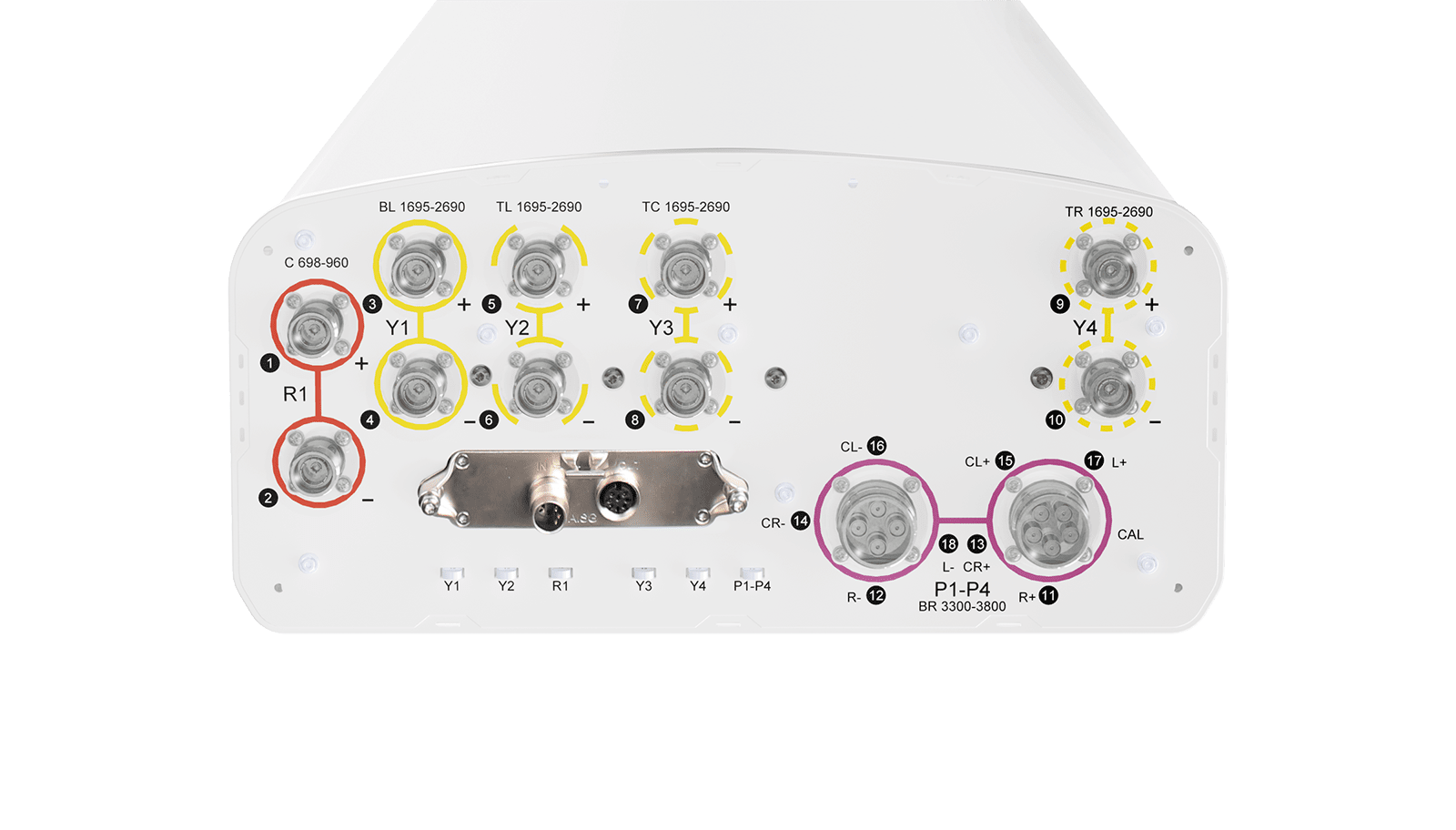

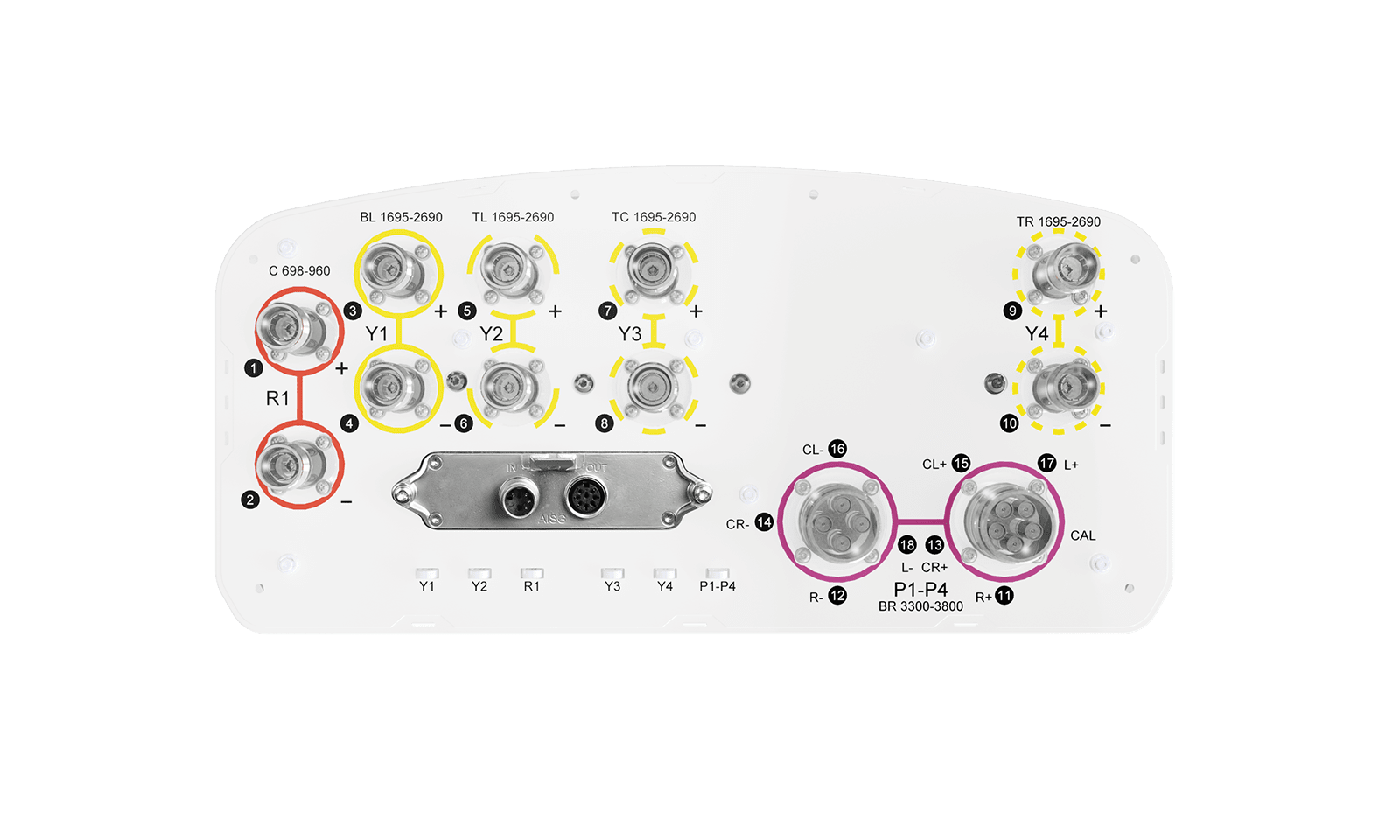

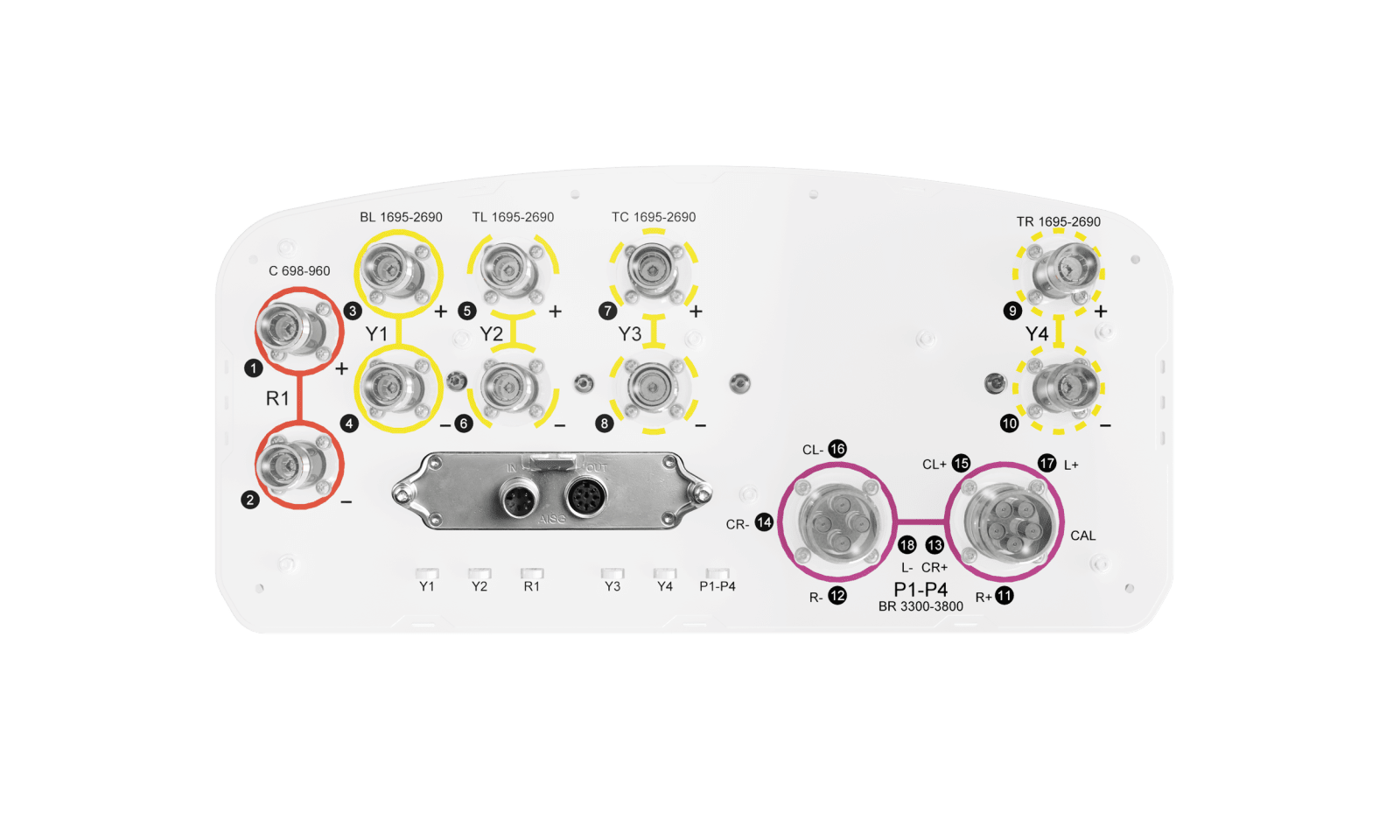

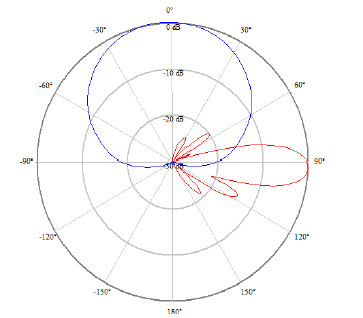

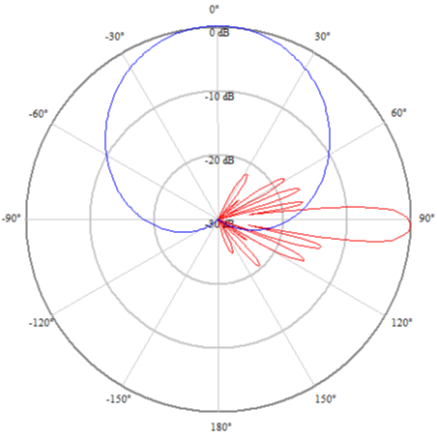

| Connector Type | 10 x 4.3-10 female, 1 x MQ4 1 x MQ5 |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 1600 x 396 x 190 mm | 63.0 x 15.6 x 7.5 in |
| Packing Size (H x W x D) | 1750 x 508 x 343 mm | 68.9 x 20.0 x 13.5 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 607 N | 136 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1695-2690 | ||
![]() |
![]() |

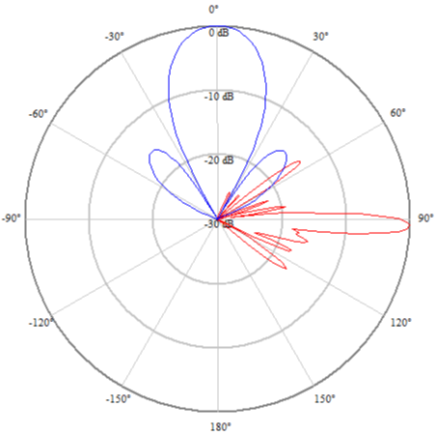

||
| 3300-3800 | |||

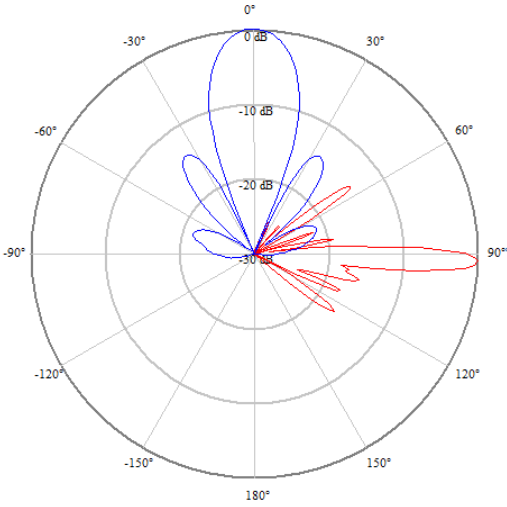

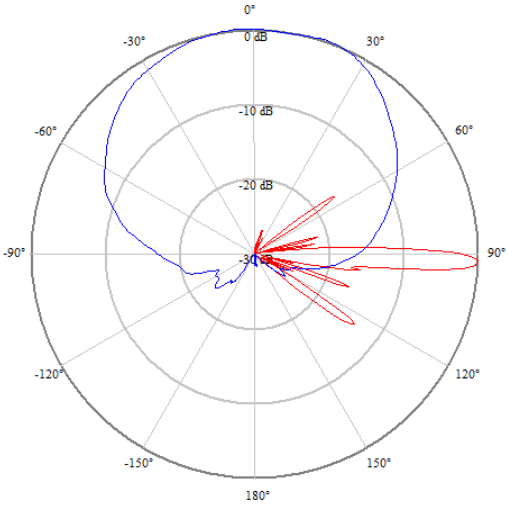

| Column Beam | Broadcast Beam | 30° Service Beam | 0° Service Beam |
![]() |
![]() |
![]() |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | RAPMK-L1 | 2.5kg / 5.5 lb | 0-12 |
