Antenna frequency: 2 x (698-960) + 4 x (1695-2690) + 4 x (2300-2690) + 4 x (3300-3800) MHz
3dB azimuth beamwidth: 65/65/90/90 °
Gain: 16.1/18.1/15.5/16.5 dBi
Electrical downtilt: 2-12/2-12/2-12/2-12 °
Connector: 12 x 4.3-10 Female 4 x Cluster
Dimension: 2690 x 498 x 197 mm
Status of product: general available
FDD+TDD Beamforming Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 2 x (698-960) + 4 x (1695-2690) + 4 x (2300-2690) + 4 x (3300-3800) MHz |
| Gain | 16.1/18.1/15.5/16.5 dBi |
| 3dB Azimuth Beamwidth | 65/65/90/90 ° |
| Electrical Downtilt | 2-12/2-12/2-12/2-12 ° |
| 1st Upper Sidelobe Suppression | > 16/> 16/> 16/> 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 /> 25 /> 25/> 25 |
| Inter - Cluster Isolation | > 26 /> 26 /> 20/> 20 |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

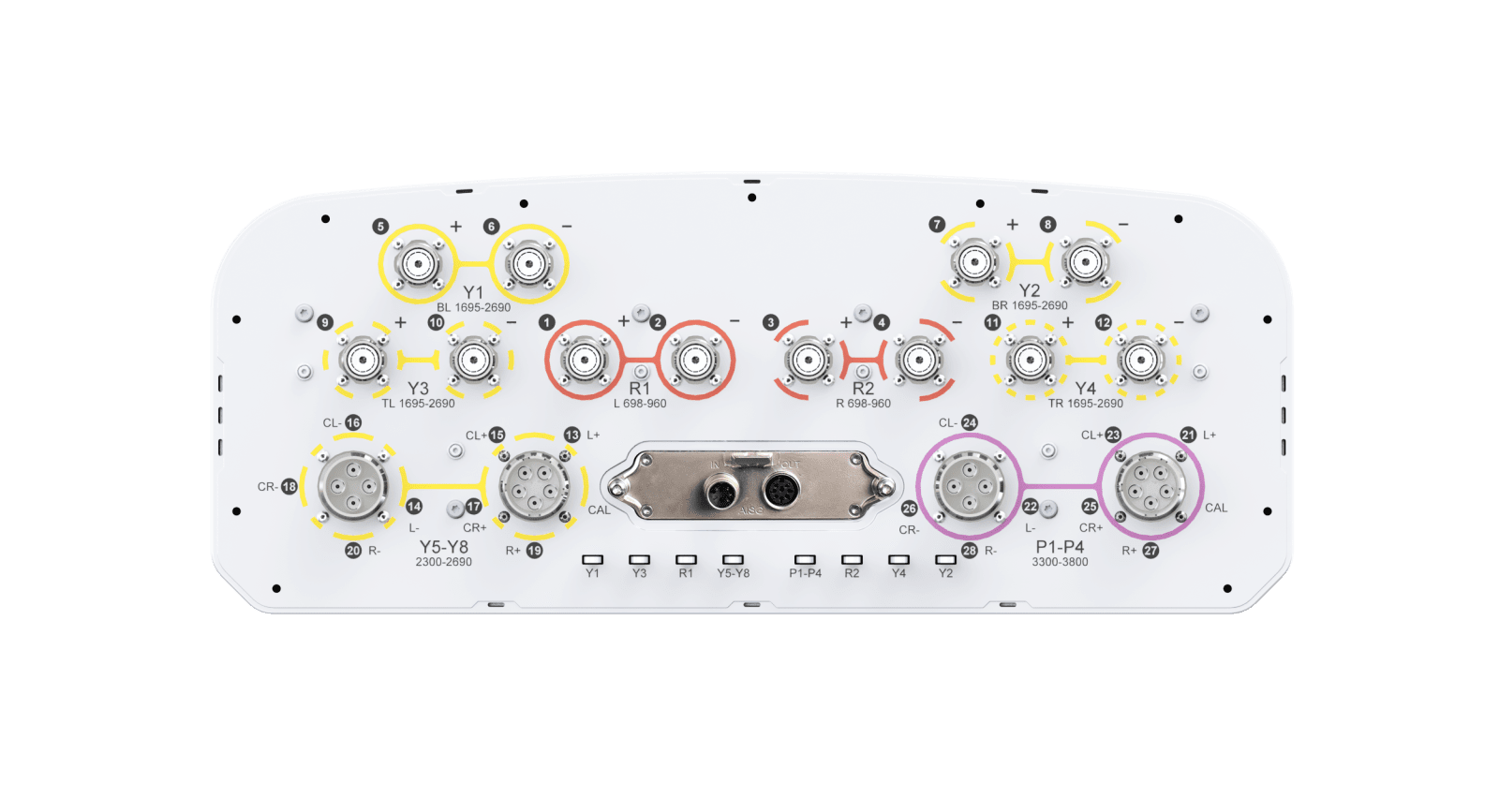

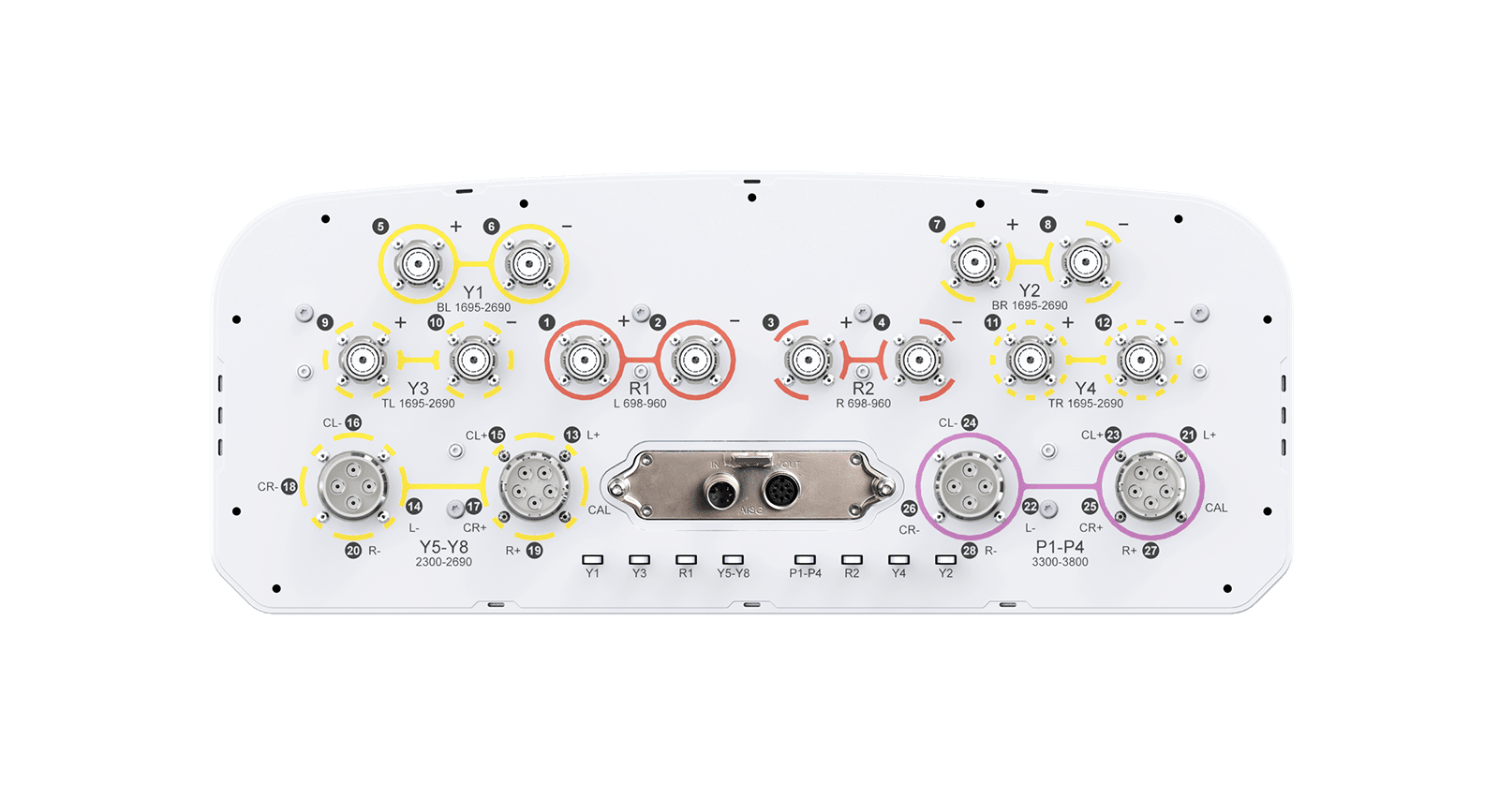

| Connector Type | 12 x 4.3-10 Female 4 x Cluster |

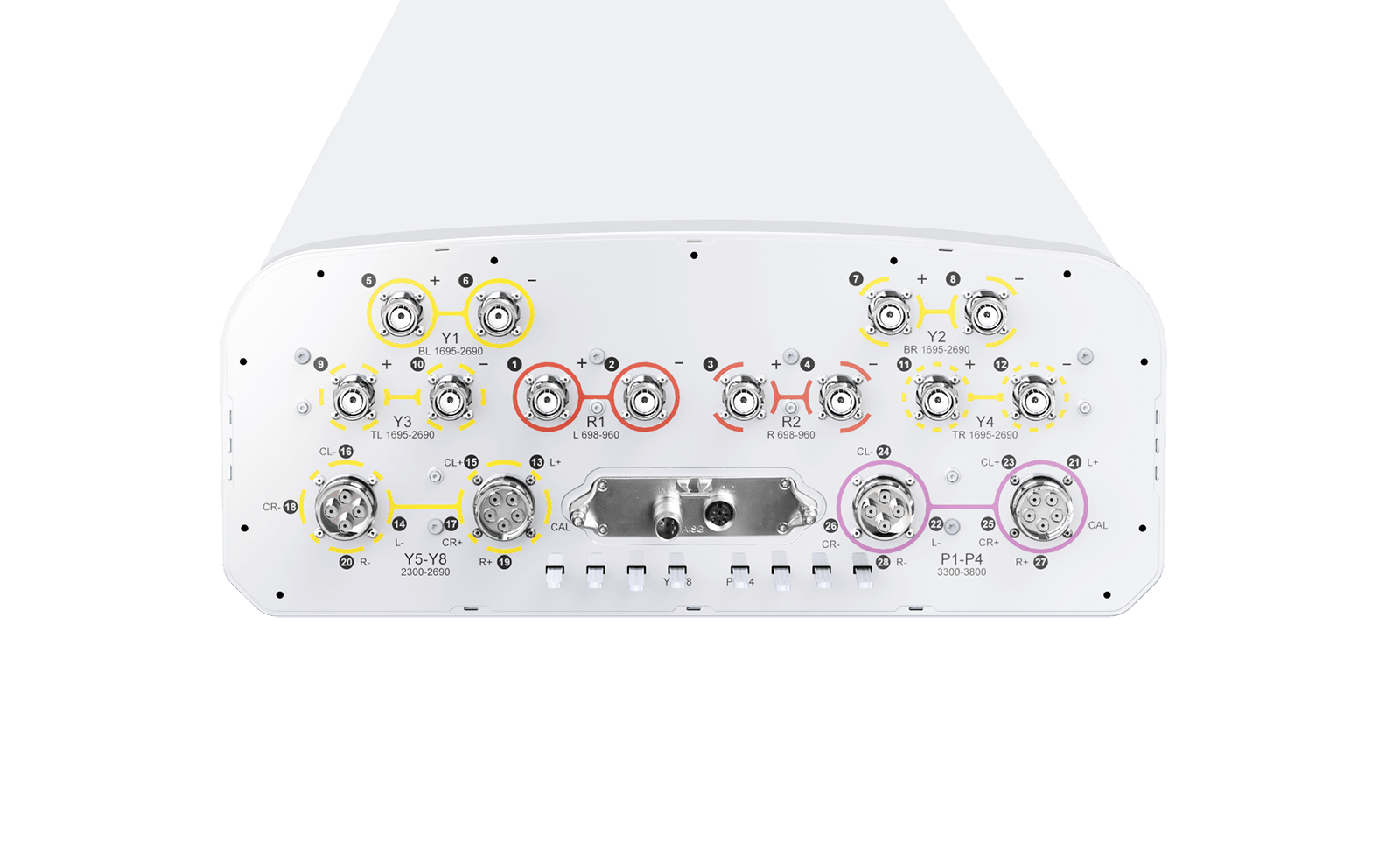

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2690 x 498 x 197 mm | 105.9 x 19.6 x 7.8 in |
| Packing Size (H x W x D) | 2845 x 620 x 345 mm | 112.0 x 24.4 x 13.6 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1263 N | 284 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1695-2690 | ||
![]() |
![]() |
||
| 2300-2690 | |||
| Column Beam | Broadcast Beam | 0° Service Beam | 30° Service Beam |
![]() |
![]() |
![]() |
![]() |
| 3300-3800 | |||
| Column Beam | Broadcast Beam | 30° Service Beam | |
![]() |
![]() |
![]() |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg / 8.4 lb | 0-10 |
