Advanced DSP control for high reliability and performance.
Zero switching time ensures uninterrupted power supply.
Wide input voltage range adapts to various grids.
Active PFC technology achieves power factor up to 0.99.
Flexible rack/tower installation with LCD interface.

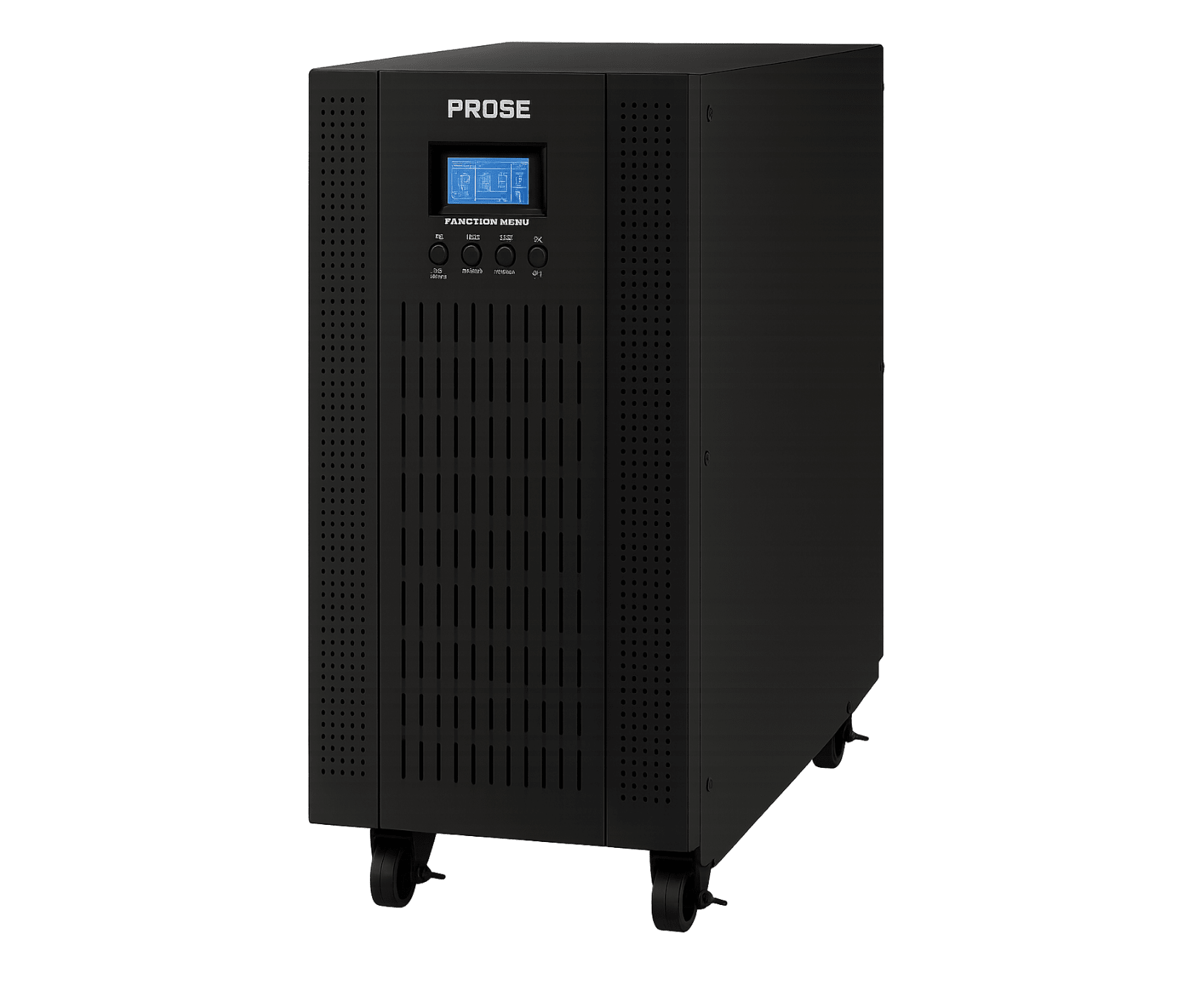

The PROSE A Series high-frequency online UPS is a new-generation power solution designed for small and medium-sized enterprises and critical environments.
Featuring advanced DSP digital control technology, it ensures superior performance, high reliability, and compact design with higher power density.
This UPS provides uninterrupted power with zero switching time, wide input voltage range, and intelligent fan speed control for noise reduction and extended lifespan. It supports flexible installation in rack or tower form, offers rich communication interfaces (RS232, USB, optional SNMP), and includes energy-saving features like active PFC with a power factor up to 0.99. Ideal for departmental servers, small LANs, workstations, industrial computers, and precision instruments, the A Series UPS guarantees stable and secure power for data rooms, financial systems, and industrial automation environments.
| UPS Type | T20K33HIA | T20K33HLA |
| Power Capacity | 20kVA/18kW | |
| Input Voltage | 3x400VAC | |
| Frequency | 46-54Hz or 56-64Hz | |
| Output Voltage | 3x400VAC | |
| Size (mm) | 592x250x826 | 592x250x576 |
|
Noise |
< 65dB at 1m |
|
| Battery Capacity | 12VDC/9Ah | It depends on external batteries |
| QTY | 16pcsx2set | |
| Charging Voltage | 218.4VDC ±1% | |
| Charing Current | 1A | |
| Temperature | 0-40℃ | |
| Humidity | 20-90% | |
| Weight (kg) | 146 | 35 |
| PN | Description | Weight |
| T20K33HLA |
Tower type online UPS, Input 3x400VAC, Output 3x400VAC,20KVA/18kW, without internal battery |
35kg |
| T20K33HLAN | Tower type online UPS, Input 3x400VAC, Output 3x400VAC,20KVA/18kW, without internal battery, with SNMP card | 35.3kg |
| T20K33HIA | Tower type online UPS, Input 3x400VAC, Output 3x400VAC,20KVA/18kW, without internal battery, with internal battery | 146kg |
| T20K33HIAN | Tower type online UPS, Input 3x400VAC, Output 3x400VAC,20KVA/18kW, without internal battery, with SNMP card | 146.3kg |
| SNMP-UPS-A01 | UPS A Series SNMP card. Suitable for T series rack-mounted, tower double-conversion type, tower type UPS. | 300g |
