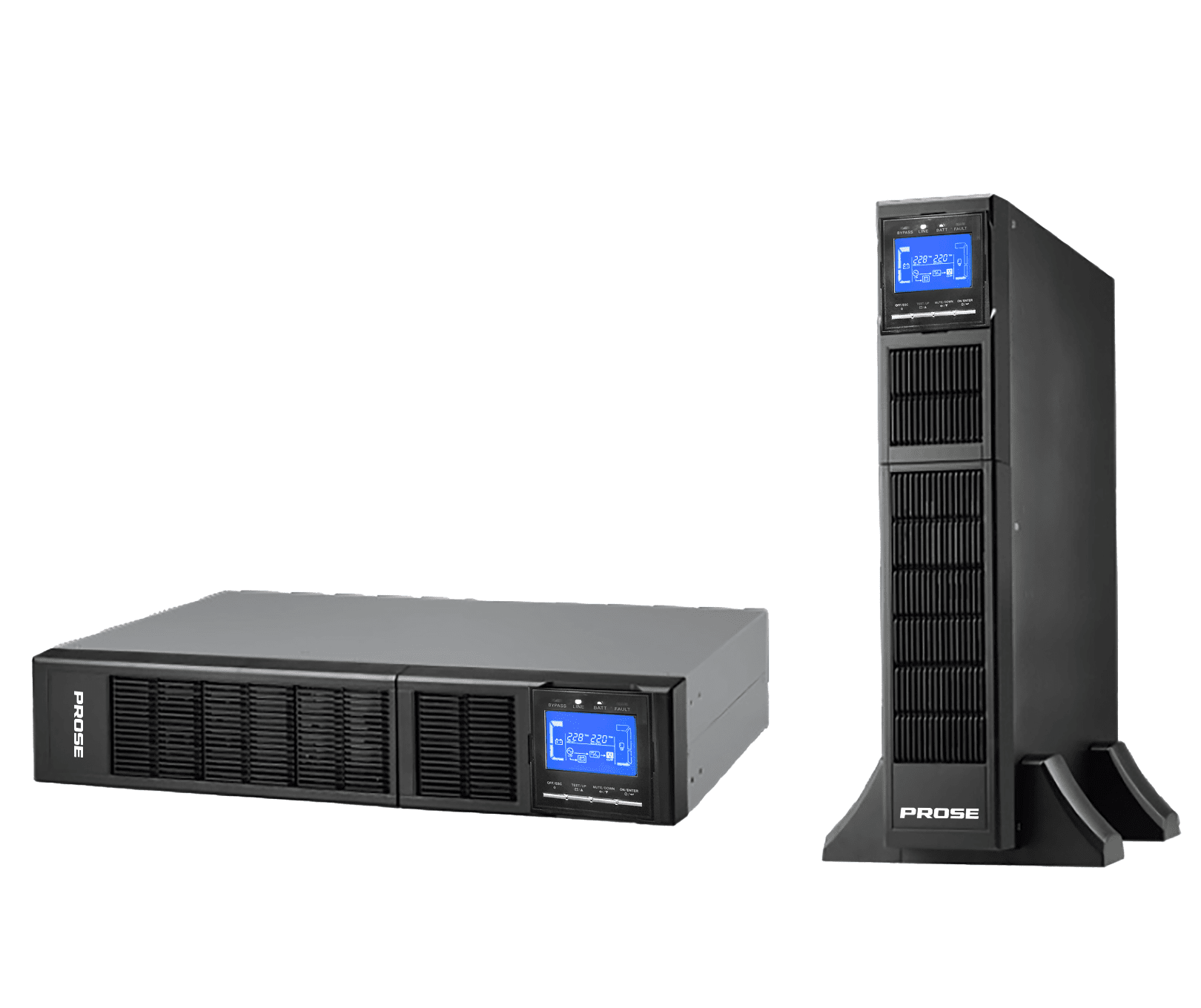

The PROSE rack/tower dual-form UPS adopts the mainstream online structure, featuring zero-delay switching between utility power and bypass, stable output voltage, and the flexibility to choose the installation mode.
The direct conversion between the two forms is quick and convenient.
This series can provide single-phase in/single-phase out models.
High-reliability power supply: Utilizing online double-conversion technology;
Strong load adaptability: Featuring an extra-wide input voltage and frequency range;
Flexible configuration and scalability
| UPS Type | RT6K11HLA | |
| Power Capacity | 6kVA/6kW | |
| Input Voltage | 208-240VAC @ 100% load (208/220/230/240VAC) | |
| Frequency | 40-70Hz | |
| Output Voltage | 220/230/240VAC±1% | |
| Size (mm) | 397x145x220 | 397 X 145 X 220 |
|
Noise |
< 50dB at 1m |
|
| Battery Capacity | It depends on external batteries | |
| QTY | 16-20pcs | |
| Charging Voltage | 218.4VDC ±1% | |
| Charing Current | 2A (default), 1A/2A/4A/6A/8A Adjustable | |
| Temperature | 0-40℃ | |
| Humidity | 20-90% | |
| Weight (kg) | 11 | |
| PN | Description | Weight |
| RT6K11LA | Rack-Mounted/Tower type online UPS, Input 208~240V, Output 208~240VAC,10KVA/10KW, 2U, without internal battery | 11kg |
| RT6K11LAN | Rack-Mounted/Tower type online UPS, Input 208~240V, Output 208~240VAC,10KVA/10KW, 2U, without internal battery, with SNMP card | 11.3kg |
.jpg)

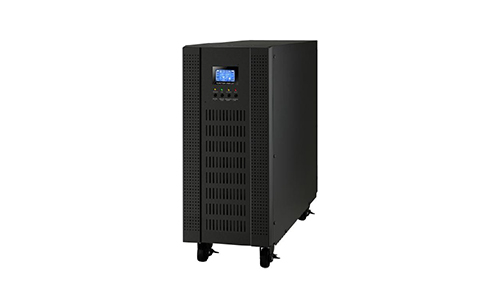

20KVA Tower Type UPS UPS, Long-run Type
.jpg)

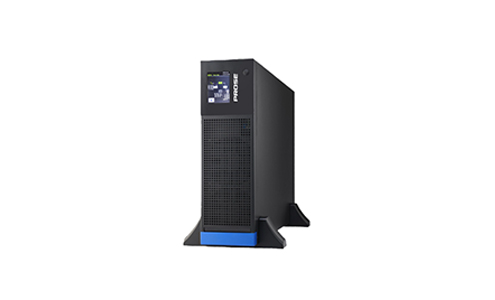

40KVA Rack-Mounted Tower Type Online UPS
