Low VSWR, low insertion loss
Low PIM, high reliability
High power handling
Compact design for easy installation
Customized connector is available
Optional 5G frequency band

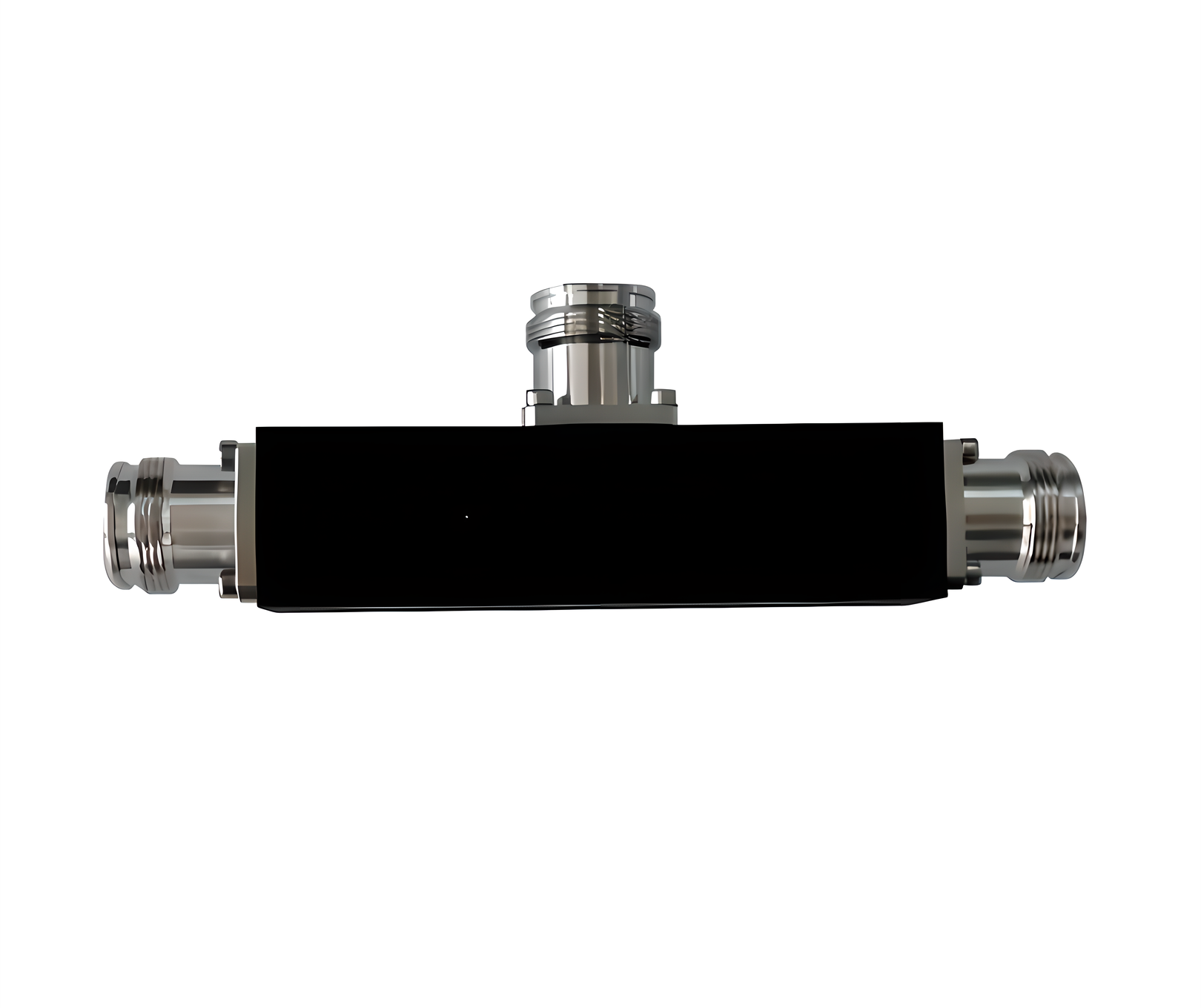

Directional coupler is a three port passive device mainly used in signal coverage scenarios in distributed antenna systems. Directional couplers can achieve unequal distribution of signals, and with the help of optional coupling degrees, they make the signal distribution of communication systems more flexible and controllable.
| Frequency | 380-2700 MHz |
| Return Loss / VSWR | ≤-18 dB/1.3 |
| Coupling Value | Refer to the datasheet |
| Distribution Loss | Refer to the datasheet |
| Power Handling | 300 W |
| Intermodulation (3rd Order) | ≤-163 dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | IP65 |
| Dimension | 107 x 25 x 25 (mm) |
| Weight | 0.85 kg |
| Connectors Type | DIN female |
| Packing | 1Pcs in box |
.png)
RF Tapper, 694-2700MHz, various coupling value, N female

698-4200MHz Tapper
.png)

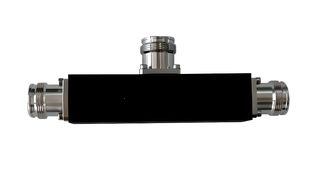

RF Tapper, 350-6000MHz, various coupling value, 4.3-10 female
.png)

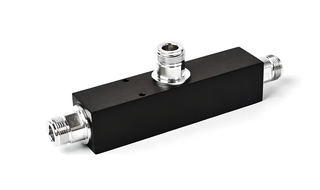

RF Tapper, 380-4200MHz, various coupling value, N female
