Antenna frequency: 698-894 + 2 x (1695-2690)+ 2 x (3300-4200) MHz
3dB azimuth beamwidth: 65 (°)
Gain: 11.7/15.8/14.1 (dBi)
Electrical downtilt: 2-12/2-12/2-12 (°)
Connector: 10 x 4.3-10 female
Dimension: 760 x 350 x 200 (mm)
Status of product: general available
Small Cells Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 698-894 + 2 x (1695-2690)+ 2 x (3300-4200) MHz |
| Gain | 11.7/15.8/14.1 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 2-12/2-12/2-12 ° |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 /> 25/> 24 dB |
| Inter - Cluster Isolation | > 24 /> 24/> 24 dB |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

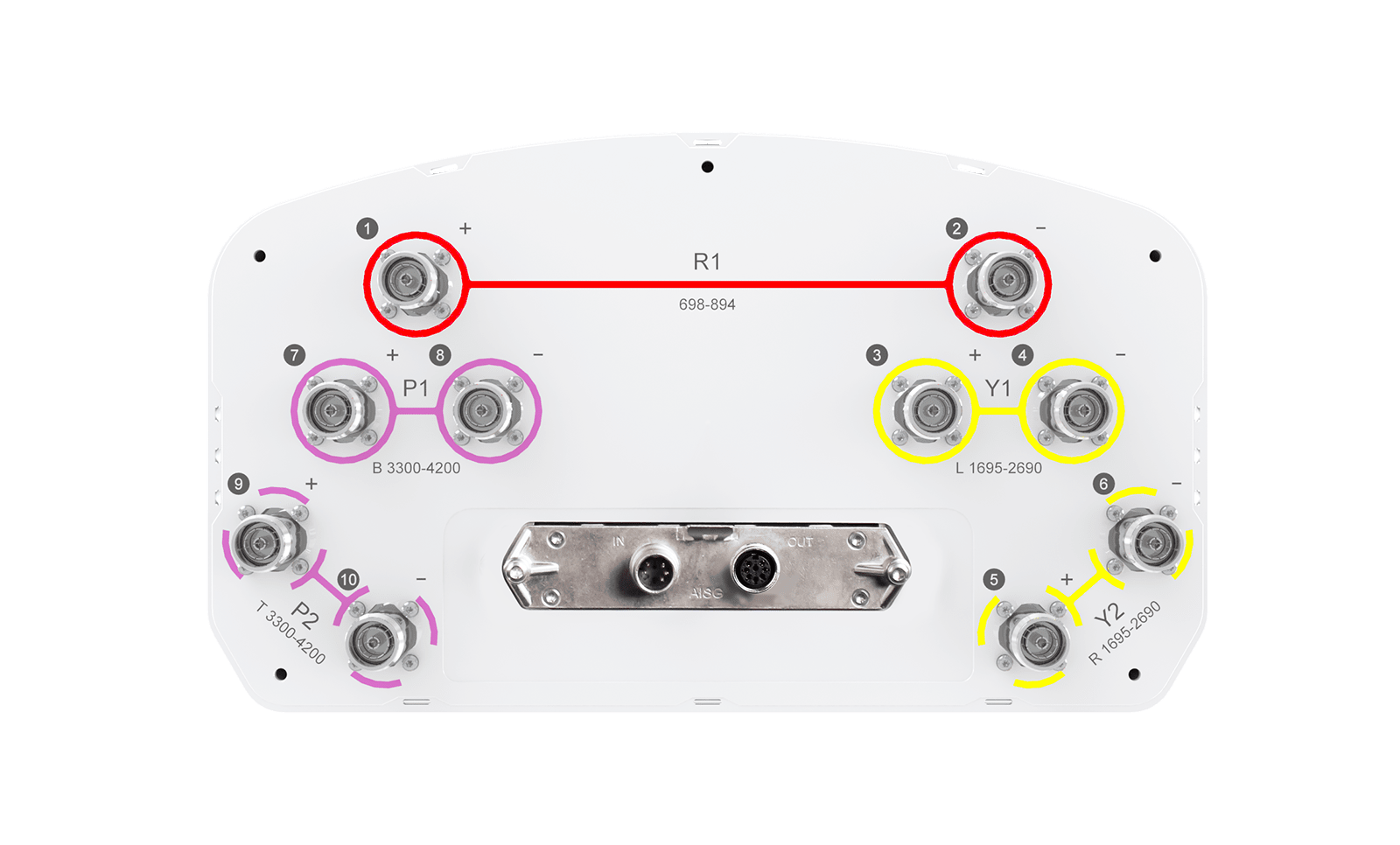

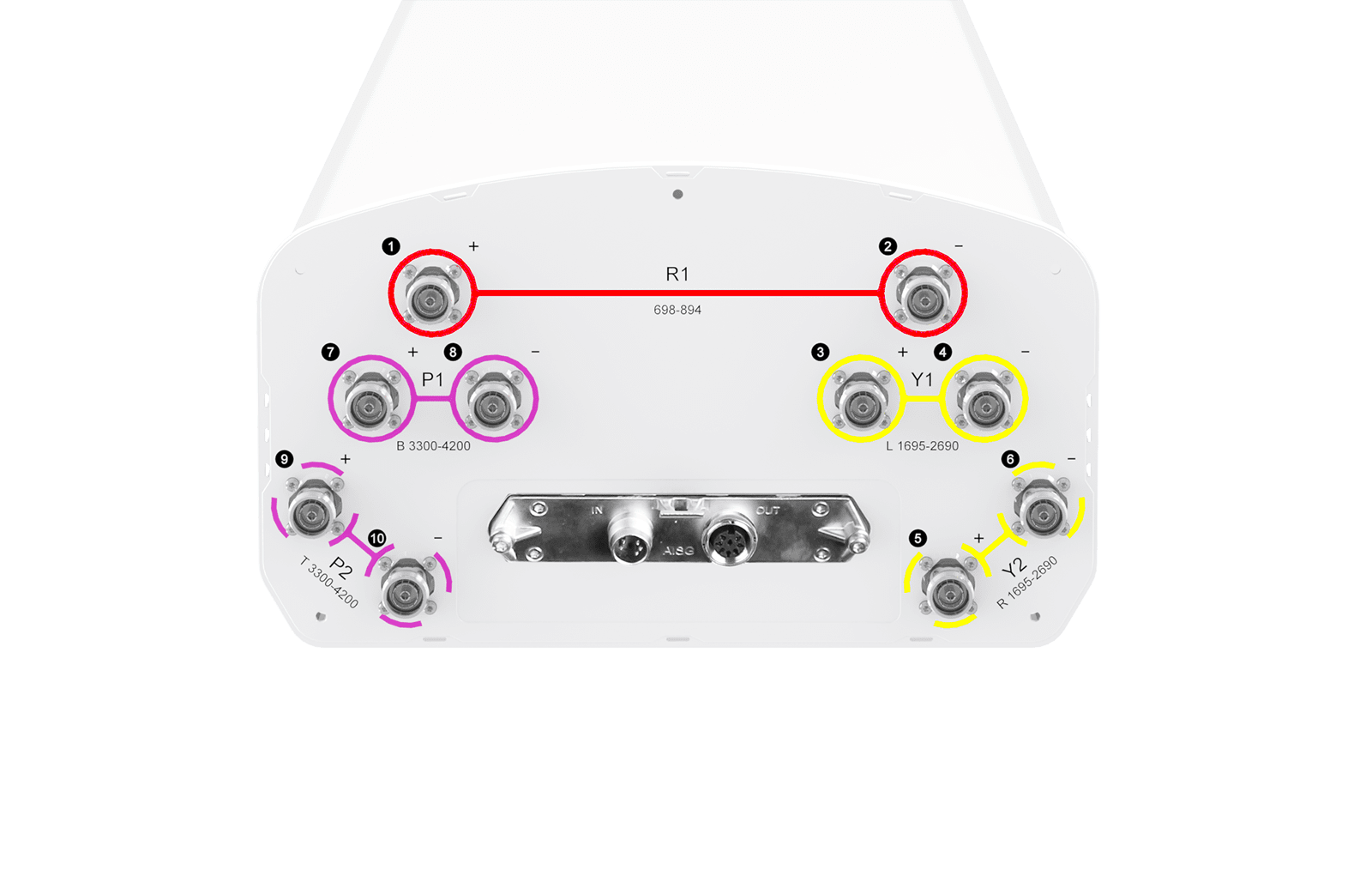

| Connector Type | 10 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 760 x 350 x 200 mm ∣ 29.9 x 13.8 x 7.9 in |
| Packing Size (H x W x D) | 895 x 435 x 350 mm ∣ 35.2 x 17.1 x 13.8 in |
| Survival Wind Speed | 241 km/h ∣ 150 mph |
| Wind Load @150 km/h (Max) | 234 N ∣ 53 lbf |
| Mast Diameter Supported | 50 - 110 mm ∣ 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C ∣ -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-894 | 1695-2690 | 3300-4200 |
![]() |
![]() |
![]() |
![]() |
| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | RAPMK-L1 | 2.4 kg / 5.3 lb | 0-12 |
