Applicable to all scenarios, ideal for C&I, residential and ground projects
Low voltage design boosts string power, cuts BOS and LCOE by 1% to 5%
Half-cut tech effectively lowers hot spot risks
Certified great resistance to salt, ammonia, sand, PID, LID and LeTID
Features low temperature coefficient of -0.29%/°C
A monofacial dual-glass photovoltaic module employs a glass-pane encapsulation on both the front and rear sides. It is characterized by front-side only power generation, and is distinguished by its enhanced mechanical strength, superior resistance to environmental degradation, and an extended operational lifetime.
|
Cell Type |
N-type mono-crystalline |
| Cells Qty. | 132 |

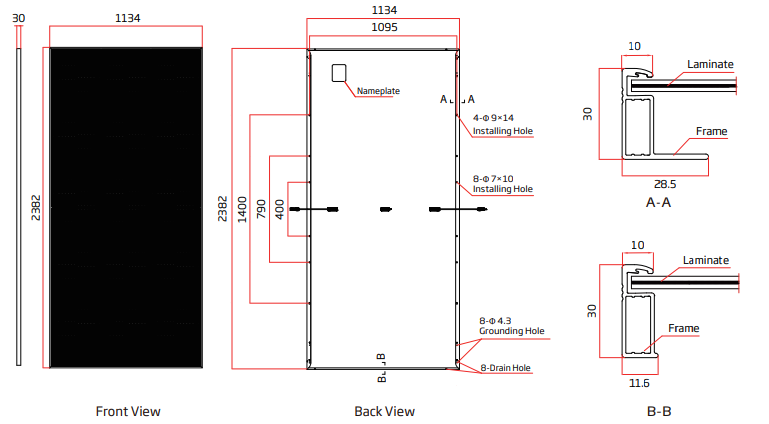

| Dimensions | 2382 * 1134 * 30 mm |
| Weight | 30.0 kg |
| Front Glass Thickness | 2.0 mm (0.08 inches), AR Coating Heat Strengthened Glass |
| Back Glass Thickness | 1.6 mm (0.06 inches), Heat Strengthened Glass |
| Frame | 30 mm (1.18 inches) Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm², 350 / 280 mm or customized length |
| PR-TSM-SP1MDM | 600 | 605 | 610 | 615 | 620 | 625 | 630 |
| Specifications (STC) (STC: Irradiance 1000 W/m² , Cell Temperature 25 °C, AM = 1.5) | |||||||
| Peak Power Watts-PMAX | 600 Wp | 605 Wp | 610 Wp | 615 Wp | 620 Wp | 625 Wp | 630 Wp |
| Maximum Power Voltage-VMPP | 40.3 V | 40.5 V | 40.8 V | 41.1 V | 41.4 V | 41.7 V | 42.0 V |
| Maximum Power Current-IMPP | 14.91 A | 14.94 A | 14.96 A | 14.98 A | 14.99 A | 15.00 A | 15.01 A |
| Open Circuit Voltage-VOC | 48.4 V | 48.7 V | 49.0 V | 49.3 V | 49.6 V | 49.9 V | 50.2 V |
| Short Circuit Current-ISC | 15.80 A | 15.83 A | 15.86 A | 15.89 A | 15.91 A | 15.92 A | 15.93 A |
| Module Efficiency η m | 22.2 % | 22.4 % | 22.6 % | 22.8 % | 23.0 % | 23.1 % | 23.3 % |
| Power Selection | 0 - 5 W | ||||||
| Specifications (NOCT) (NOCT: Irradiance at 800 W/m2, Ambient Temperature 20 °C, Wind Speed 1 m/s) | |||||||
| Peak Power Watts-PMAX | 459 Wp | 462 Wp | 466 Wp | 470 Wp | 474 Wp | 478 Wp | 482 Wp |
| Maximum Power Voltage-VMPP | 37.9 V | 38.1 V | 38.3 V | 38.6 V | 38.8 V | 39.1 V | 39.4 V |
| Maximum Power Current-IMPP | 12.11 A | 12.13 A | 12.16 A | 12.19 A | 12.20 A | 12.21 A | 12.22 A |
| Open Circuit Voltage-VOC | 46.0 V | 46.2 V | 46.5 V | 46.8 V | 47.1 V | 47.3 V | 47.7 V |
| Short Circuit Current-ISC | 12.73 A | 12.75 A | 12.78 A | 12.80 A | 12.82 A | 12.83 A | 12.84 A |
| Temperature Coefficients Of Pmax | -0.29 % / °C | |||||
| Temperature Coefficients Of Voc | -0.24 % / °C | |||||
| Temperature Coefficients Of Isc | 0.04 % / °C | |||||
| Operating Temperature | -40 to 85 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 35 A |
|
Packing Detail |
Modules per box: 36 pieces, Modules per 40'container: 720 pieces |
