First-year degradation 1.00%, annual degradation ≤0.4%
Adopts N-type and half-cell design
Realizes dual-sided power generation
Equipped with anti-PID guarantee
Superior temperature coefficient performance
Excellent low irradiance response

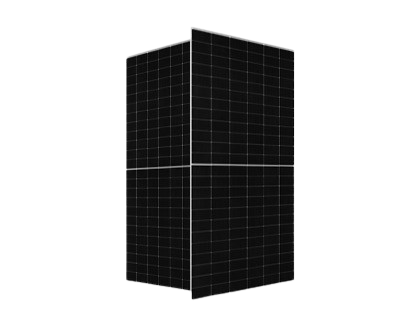

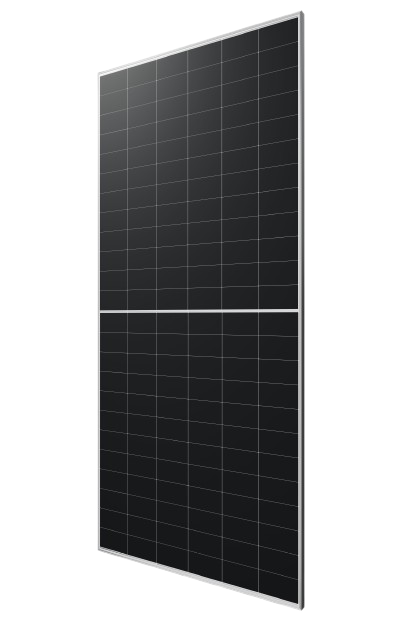

This N-type dual-glass bifacial solar panel features low attenuation and 10%-30% higher output, enjoys 30-year weather resistance, ideal for various PV projects to boost efficiency and cut costs.
|
Cell Type |
N- type Mono-crystalline |
| No. of Cells | 156 (78 * 2) |

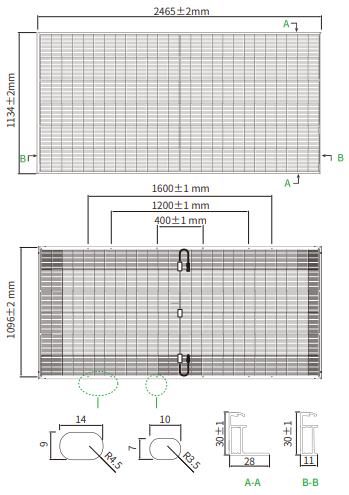

| Dimensions | 2465 * 1134 * 30 mm |
| Weight | 34.0 kg |
| Front Glass Thickness | 2.0 mm, Anti-reflection Coating |
| Back Glass Thickness | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (+): 400 mm , (-): 200 mm or Customized Length |
| PR-JK-SP1MDB | 625 | 630 | 635 | 640 | 645 | 650 |
| Specifications (STC) (STC: Irradiance 1000 W/m² , Cell Temperature 25 °C, AM = 1.5) | ||||||
| Maximum Power - Pmax | 625 Wp | 630 Wp | 635 Wp | 640 Wp | 645 Wp | 650 Wp |
| Maximum Power Voltage - Vmp |
47.54 V |
47.70 V | 47.86 V | 48.02 V | 48.17 V | 48.33 V |
| Maximum Power Current - Imp | 13.15 A | 13.21 A | 13.27 A | 13.33 A | 13.39 A | 13.45 A |
| Open-circuit Voltage - Voc | 56.95 V | 57.08 V | 57.21 V | 57.34 V | 57.47 V | 57.60 V |
| Short-circuit Current - Isc (A) | 13.80 A | 13.86 A | 13.92 A | 13.98 A | 14.04 A | 14.10 A |
| Module Efficiency STC | 22.36 % | 22.54 % | 22.72 % | 22.90 % | 23.07 % | 23.25 % |
| Power Tolerance | 0 - 3 % | |||||
| Specifications (BNPI) (BNPI: Irradiance: front 1000 W/m² , rear 135 W/m² , Cell Temperature 25°C, AM = 1.5) | ||||||
| Maximum Power - Pmax | 688 Wp | 693 Wp | 699 Wp | 704 Wp | 710 Wp | 716 Wp |
| Maximum Power Voltage - Vmp | 47.57 V | 47.73 V | 47.91 V | 48.06 V | 48.23 V | 48.40 V |
| Maximum Power Current - Imp | 14.46 A | 14.52 A | 14.59 A | 14.65 A | 14.72 A | 14.79 A |
| Open-Circuit Voltage - Voc | 57.00 V | 57.14 V | 57.28 V | 57.42 V | 57.56 V | 57.70 V |
| Short-Circuit Current - Isc | 15.19 A | 15.27 A | 15.35 A | 15.43 A | 15.51 A | 15.59 A |
| Temperature Coefficients of Pmax | -0.29 % / °C | |||||
| Temperature Coefficients of Voc | -0.25 % / °C | |||||
| Temperature Coefficients of Isc | 0.045 % / °C | |||||
| Operating Temperature | -40 to 70 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating () | 30 A |
| Bifaciality Coefficent | φVoc: 98 ± 5 %, φIsc: 80 ± 5 %, φPmax: 80 ± 5 % |
|
Pallet Dimention |
2525 * 1140 * 1251 mm |
|
Packing Detail (Two pallets = One stack) |
36 pcs / pallets, 72 pcs / stack, 576 pcs / 40'HQ Container |
