Conform to MC4 & EN50548/A1:2013
IP67 waterproof, UV resistant
High voltage endurance
Adapt to harsh environments
Stable auto-lock for easy connection

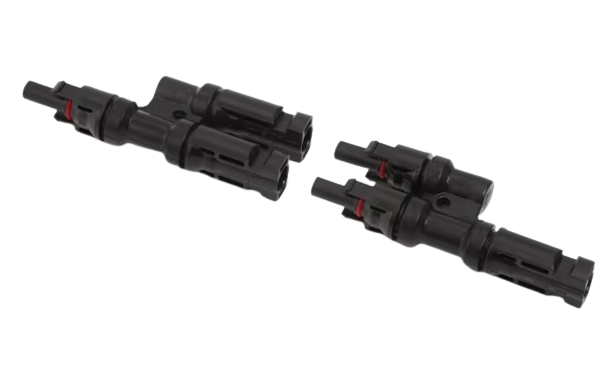

This T-type MC4 connector features standard plug-and-play design with T-shaped branching structure available in various split types for diverse wiring needs. Made of heat and UV resistant plastic with tinned copper contacts, it ensures reliable outdoor service.
|
Rating Voltage |
1500 VDC (TUV) |
| Rating Curren | 50 A |
| Connect Resistance Of Plug | 0.5 mΩ |
|
Contact Material |
Copper, tinned |
| Insulation Material | PPO |
| Connector System | MC4 connecting |
| Contact System | MC MULILAN |
| Type Of Terminal | Crimping |
| Insertion Force/With Draw Force | 50 / 50 N |
| Locking System Plug Connector | Plug-in (nur / only MC4) |
|
Working Temperature |
-40 to 90 ℃ (IEC) |
| Degree Of Protection | IP67 |
| Flame Class | UL94-V0 / UL94-HB |
| Safety Class | Class II |
.png)
MC4 power connector male / female, suitable for photovoltaic cables with a maximum cross-sectional area of 6mm², 50A, A type

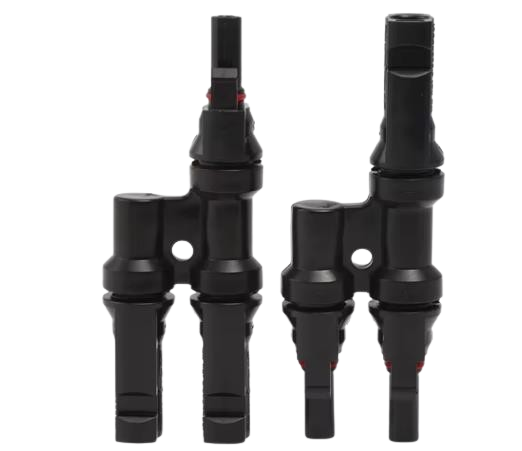

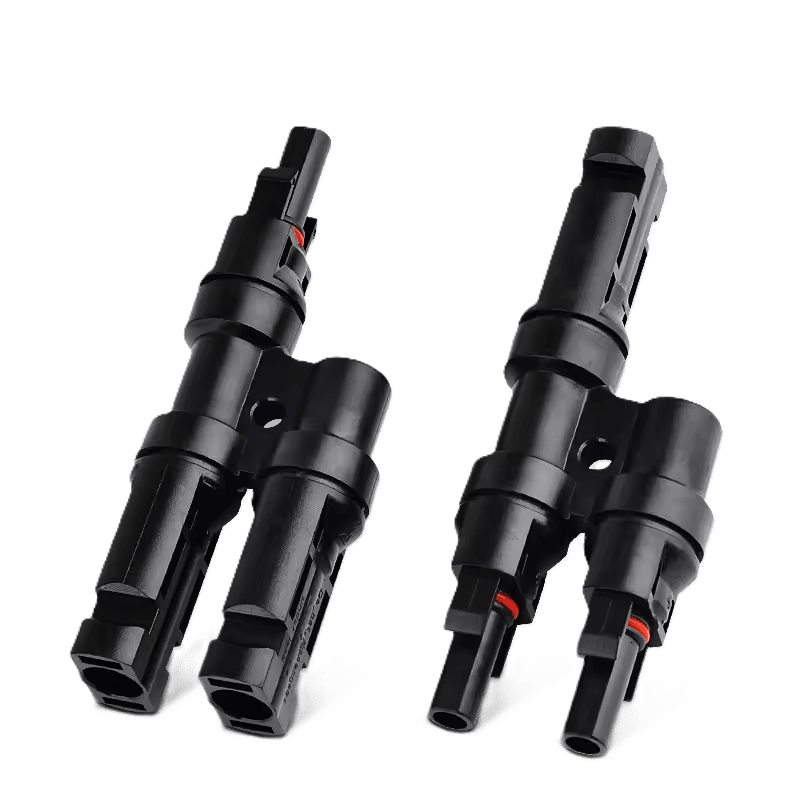

2 pins to 1 pin MC4 power connector male/female, for photovoltaic cable 4-10mm², 50A, Y type

MC4 power connector male / female, suitable for photovoltaic cables with a maximum cross-sectional area of 6mm², 30A, B type
