MC4 compliant, IP68 waterproof and UV resistant, high voltage resistance
Stable auto-lock and S-insert design for firm easy connection
Suitable for all harsh outdoor weather conditions
Anti-unlock clip enhances safety performance

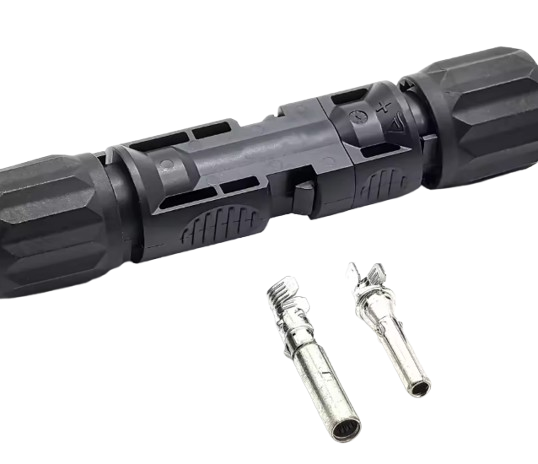

PROSE MC4 connectors ensure efficient power transmission, feature IP68 waterproofing for stable use from -40°C to 90°C, and come with safe easy-lock structure.
|
Rating Voltage |
1500 VDC (TUV) |
| Rating Current | 30 A |
| Connect Resistance Of Plug | 0.5 mΩ |
|

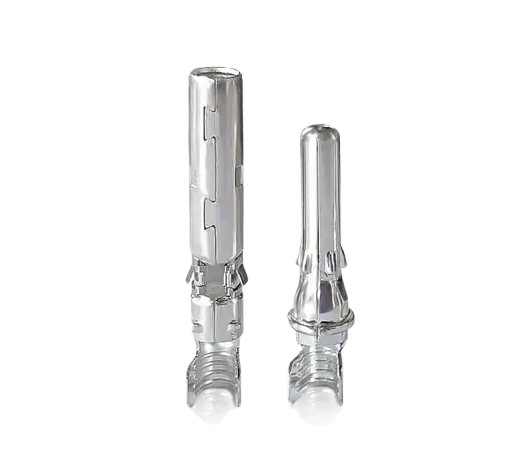

Contact Material |
Copper, tinned |
| Insulation Material | PPO |
| Connector System | MC4 connecting |
| Contact System | MC MULILAN |
| Type Of Terminal | Crimping |
| Insertion Force/With Draw Force | 50 / 50 N |
| Locking System Plug Connector | Snap-in (nur / only MC4) |
|
Working Temperature |
-40 to 90 ℃ (IEC) |
| Degree Of Protection | IP68 |
| Flame Class | UL94-V0 / UL94-HB |
| Safety Class | Class II |

2 pins to 1 pin MC4 power connector male/female, for photovoltaic cable 2.5/4/6mm², 50A, T type
.png)
MC4 power connector male / female, suitable for photovoltaic cables with a maximum cross-sectional area of 6mm², 50A, A type

2 pins to 1 pin MC4 power connector male/female, for photovoltaic cable 4-10mm², 50A, Y type
