MC4 compliant, IP68 waterproof, UV resistant and high voltage resistant
Perfect for various harsh weather environments
Auto-lock system enables easy plug and disconnect
S-insert structure achieves firm stable connection
Anti-unlock clip effectively boosts use safety
PROSE MC4 connectors deliver stable efficiency with low contact resistance, support -40°C to 90°C wide temperature use under IP68 waterproof grade, and adopt safe auto-lock design for easy installation and anti-loose protection.
|
Rating Voltage |
1500 VDC (EN50521:2008 + A1:2012) |
| Rating Current | 50 A |
| Connect Resistance of Plug | 0.5 mΩ |
|
Contact Material |

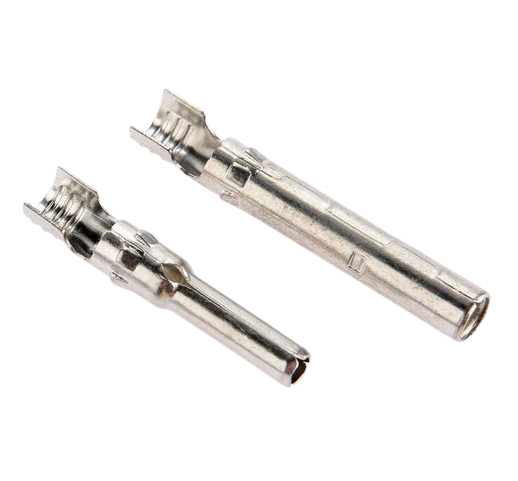

Copper, tinned |
| Insulation Material | PPO |
| Connector System | MC4 connecting |
| Contact System | MC MULILAN |
| Type of Terminal | Crimping |
| Insertion Force/With Draw Force | 50 / 50 N |
| Locking System Plug Connector | Snap-in (nur / only MC4) |
|
Working Temperature |
-40 to 90 ℃ |
| Degree Of Protection | IP68 |
| Flame Class | UL94-V0 / UL94-HB |
| Safety Class | Class II |

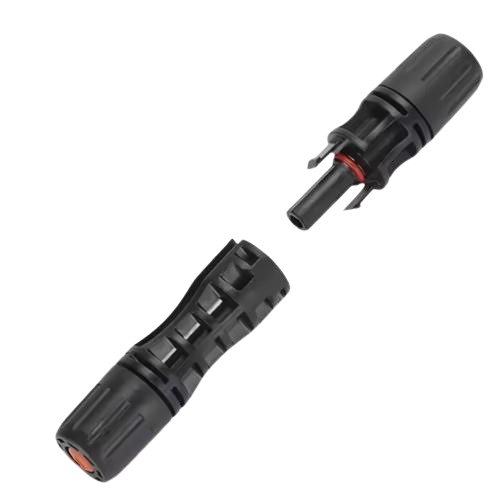

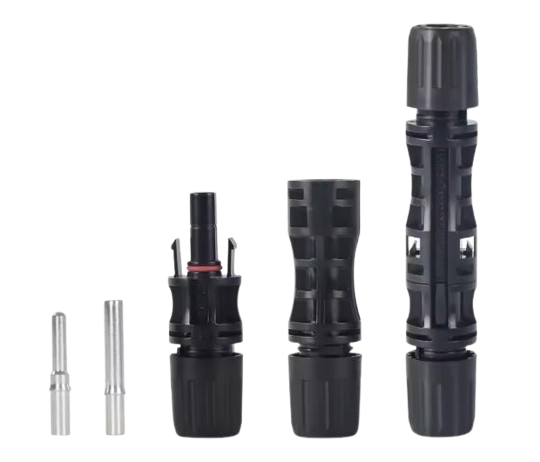

MC4 power connector male / female, suitable for photovoltaic cables with a maximum cross-sectional area of 6mm², 30A, B type

2 pins to 1 pin MC4 power connector male/female, for photovoltaic cable 2.5/4/6mm², 50A, T type

2 pins to 1 pin MC4 power connector male/female, for photovoltaic cable 4-10mm², 50A, Y type
