Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

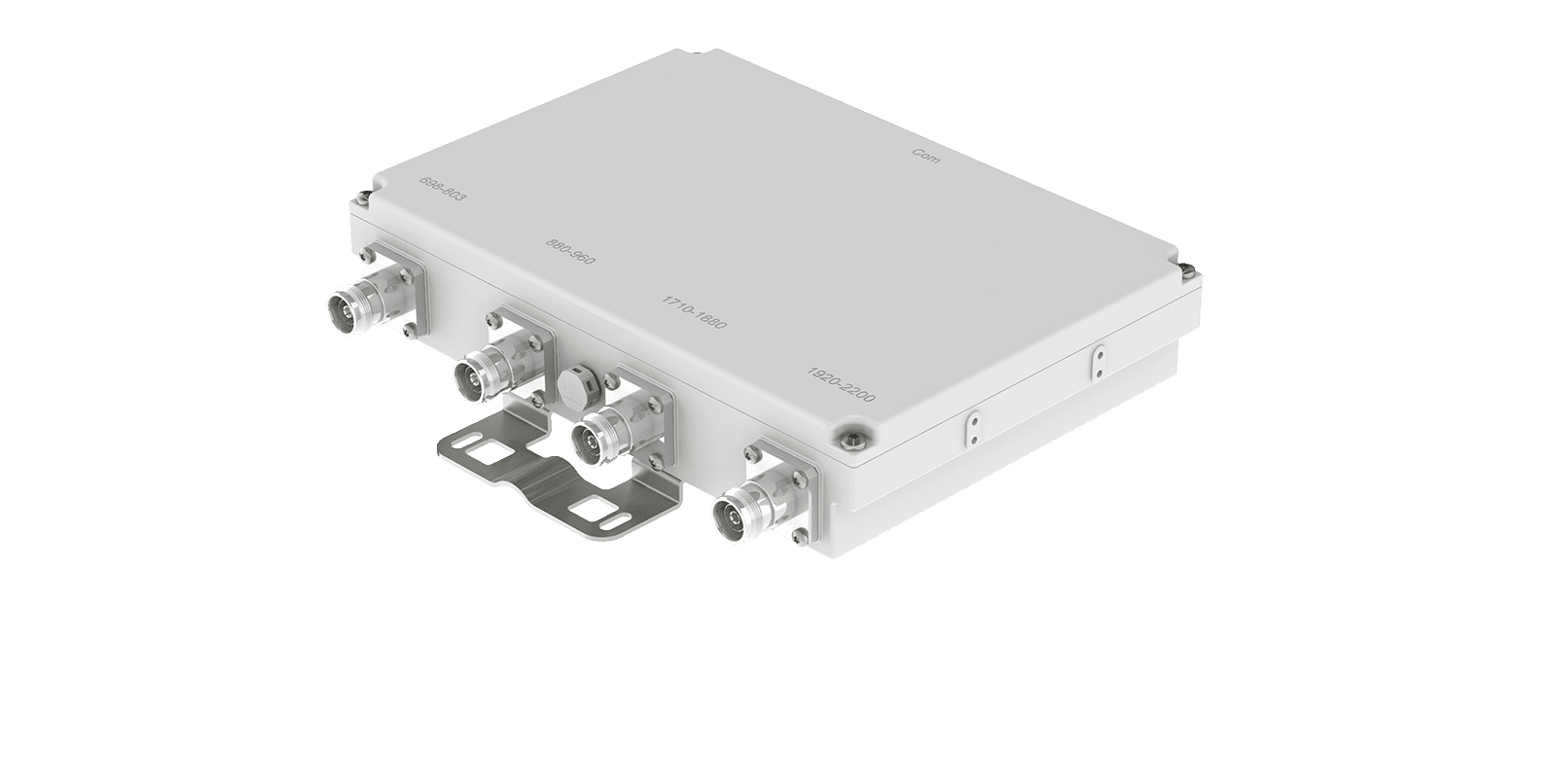

CB-4-YZDU-64F-A12, a single-unit combiner engineered for balanced RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable signal merging within macro base stations and wireless network infrastructure. A compact, streamlined design simplifies installation, while custom band flexibility and AISG / DC bypass capability support adaptable deployment across varied network configurations.
|
Frequency |
CH1: 698-803MHz |
| CH2: 880-960MHz | |
| CH3: 1710-1880MHz | |
| CH4: 1920-2200MHz | |
| Return Loss | ≤-19dB |
| Insertion Loss | ≤0.3dB |
| Isolation | ≥50dB |
| Power Handling | 300W |
| DC Characteristic | DC bypass all ports |
| Intermodulation | ≤-155dBc @ 2 x 20W |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

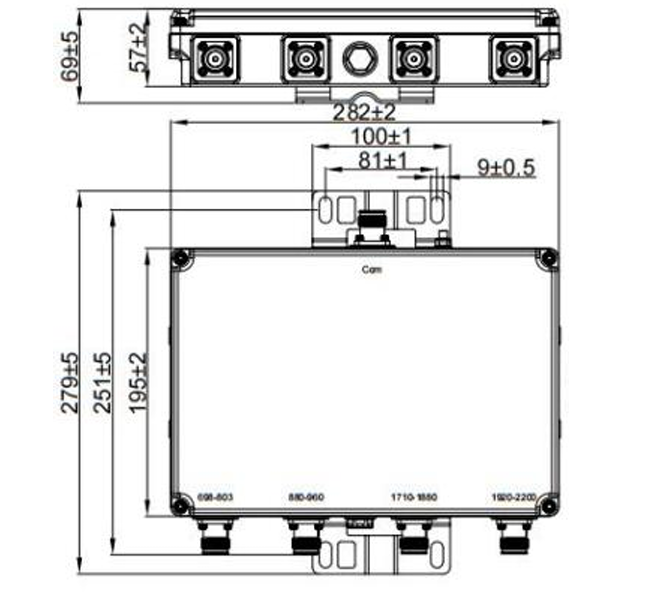

| Dimension | 279 x 282 x 69(mm, excluding brackets and connectors) |
| Weight | ≤4.0kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |

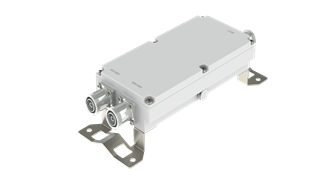

Combiner with frequency bands of 690-960MHz and 1710-2700 MHz

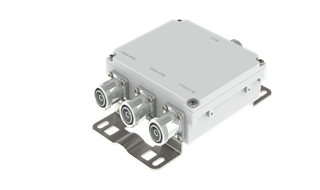

Combiner with frequency bands of 1710-2170 MHz, 2300-2700 MHz, and 3300-4000 MHz

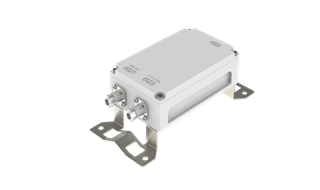

Combiner with frequency bands of 300-500 MHz and 698-960 MHz

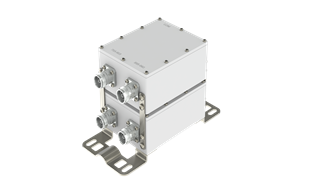

Double unit combiner with frequency bands of 703-803MHz and 895-960MHz
