Compact, low weight
Low PIM
High reliability
Simple installation

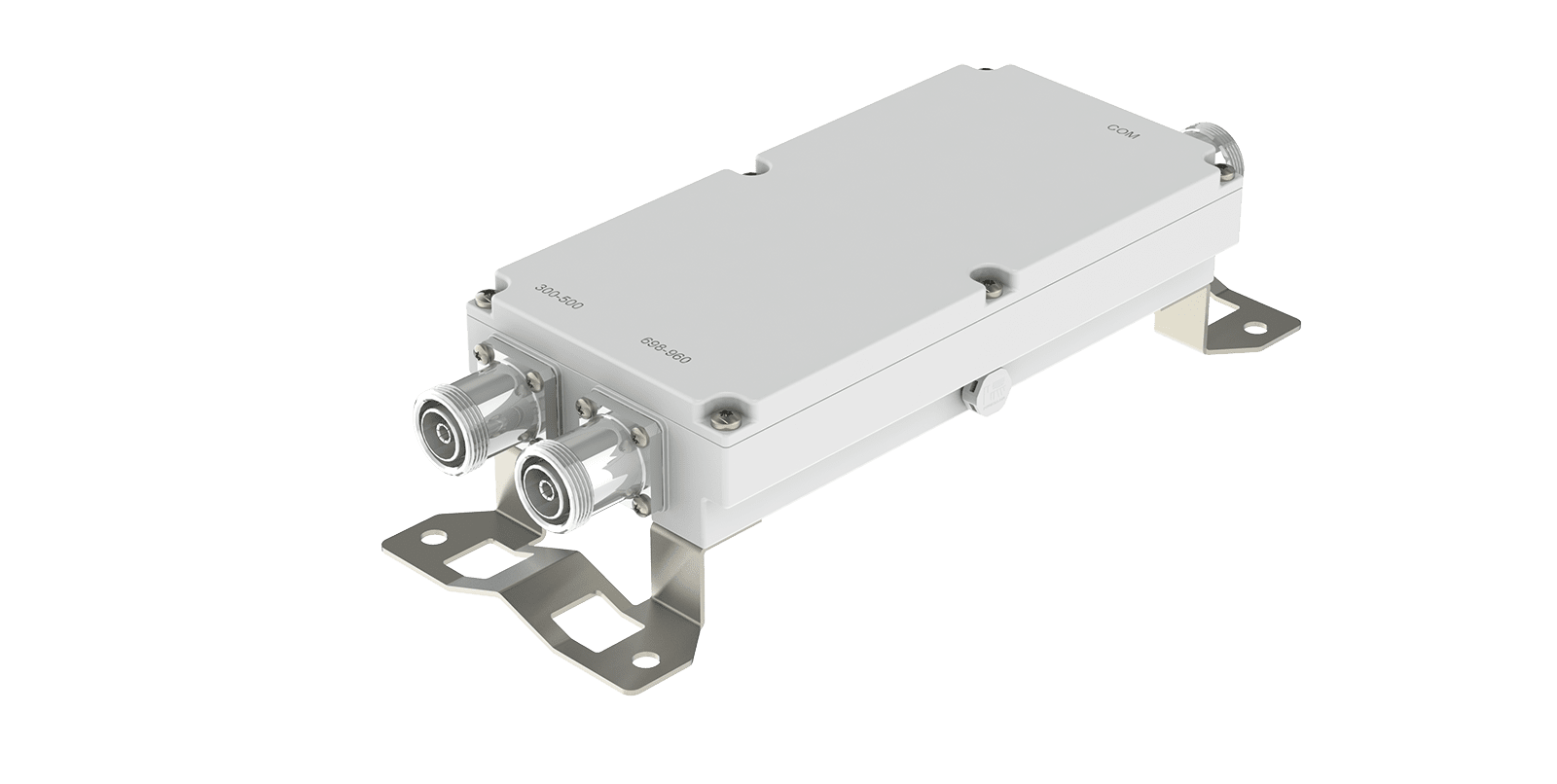

CB-2-KL-DF-A01, a dual-band combiner covering 300–500 MHz and 698–960 MHz, engineered for wide-spectrum RF signal integration, featuring low PIM, compact and lightweight construction, and high reliability to support stable operation across ultra-low and low frequency bands in macro base stations and wireless network infrastructure. A compact, installation-efficient design enables simplified deployment and optimized site utilization.
|
Frequency |
CH1: 300-500MHz |
| CH2: 698-960MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | 0.8dB typical |
| Isolation | ≥50dB |
| Power Handling | 200W average per port |
| Intermodulation (3rd order) | ≤-153dBc@ 2 x 20 W |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 5kA,8/20us |
| Applications | IP67 |
| Dimension | Approximate 247.2x123x49 (mm, excluding brackets and connectors) |
| Weight | Approximate 2.5kg |
| Connectors Type | DIN female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
