Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

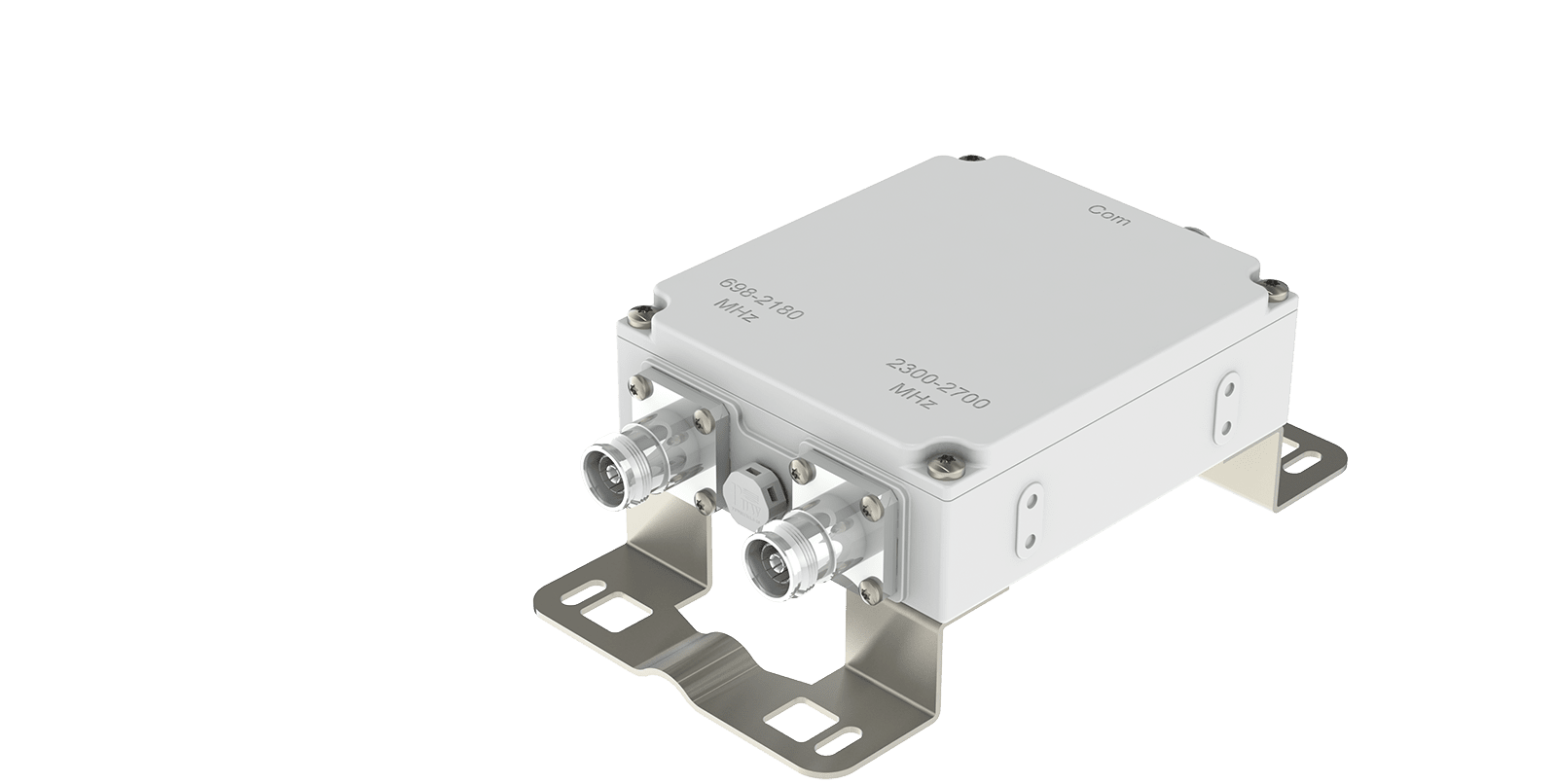

CB-2-FM-64F-A16, a single-unit dual-band combiner covering 698–2180 MHz and 2300–2700 MHz, developed for wideband RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable performance across extended frequency ranges in macro base stations and wireless network infrastructure. A compact, integration-optimized design enables efficient installation, while custom band capability and 5G-ready compatibility support evolving network requirements.
|
Frequency |
CH1: 698-2180MHz |
| CH2: 2300-2700MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 250W average per port ;2000W(Peak) |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -40°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 8kA,8/20us |
| Applications | IP67 |
| Dimension | 142x121x47(mm, excluding brackets and connectors) |
| Weight | ≤1.1kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
