Antenna frequency: 1×(698-862)+1×(880-960)+1×(698-960)+4×(1695-2690)MHz
3dB azimuth beamwidth: 65 °
Gain: 15.5/16.9 dBi
Electrical downtilt: 2-12/2-12 °
Connector: 14 x 4.3-10 female
Dimension: 2100 x 448 x 188 mm
Status of product: general available
Panel Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 1×(698-862)+1×(880-960)+1×(698-960)+4×(1695-2690) MHz |
| Gain | 15.5/16.9 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 2-12 ° |
| 1st Upper Sidelobe Suppression | > 16/> 17 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Inter - Cluster Isolation | > 26 |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

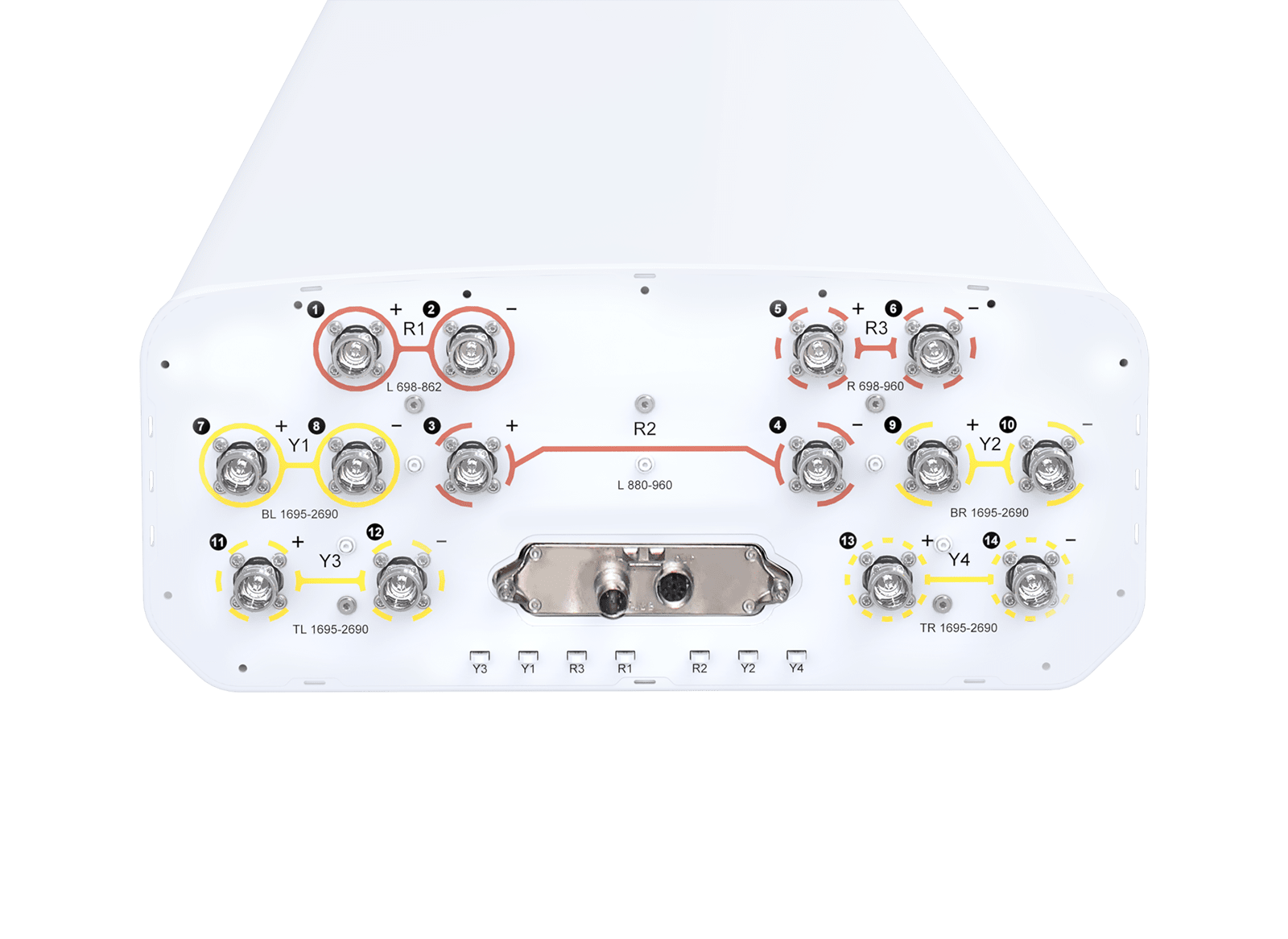

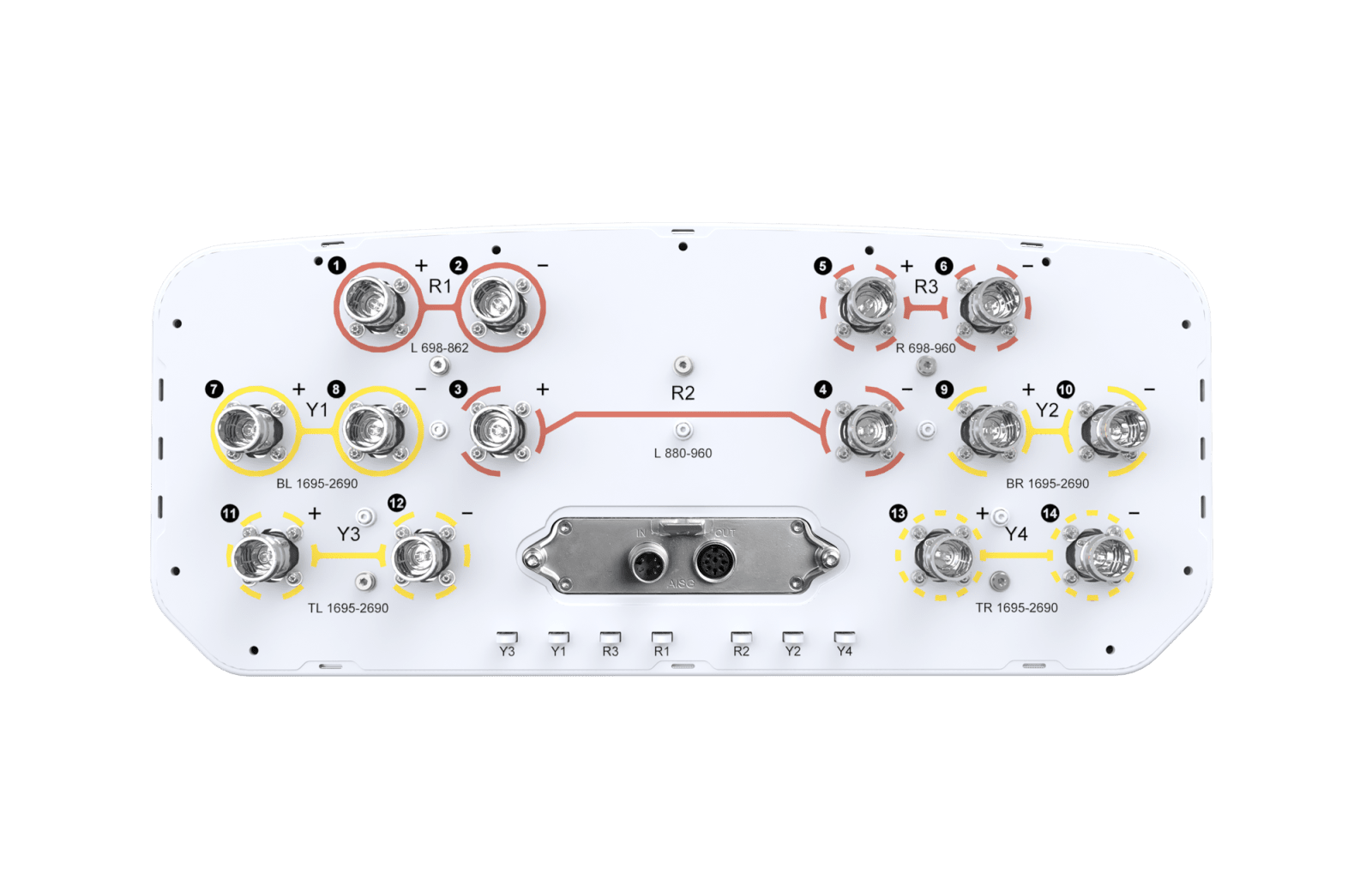

| Connector Type | 14 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2100 x 448 x 188 mm | 82.7 x 17.6 x 7.4 in |
| Packing Size (H x W x D) | 2250 x 551 x 361 mm | 88.6 x 21.7 x 14.2 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1008 N | 227 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1695-2690 |
![]() |
![]() |
