Antenna frequency: 3300-3800 + 3800-4200 MHz
3dB azimuth beamwidth (°): 65
Gain(dBi): 18.2/18.3
Electrical downtilt (°): 0-10
Connector: 4 x 4.3-10 female
Dimension(mm): 998 x 180 x 115
Status of product: general available
Panel Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 2×(3300-4200) |
| Gain | 18.3 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 0-10 ° |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 26 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

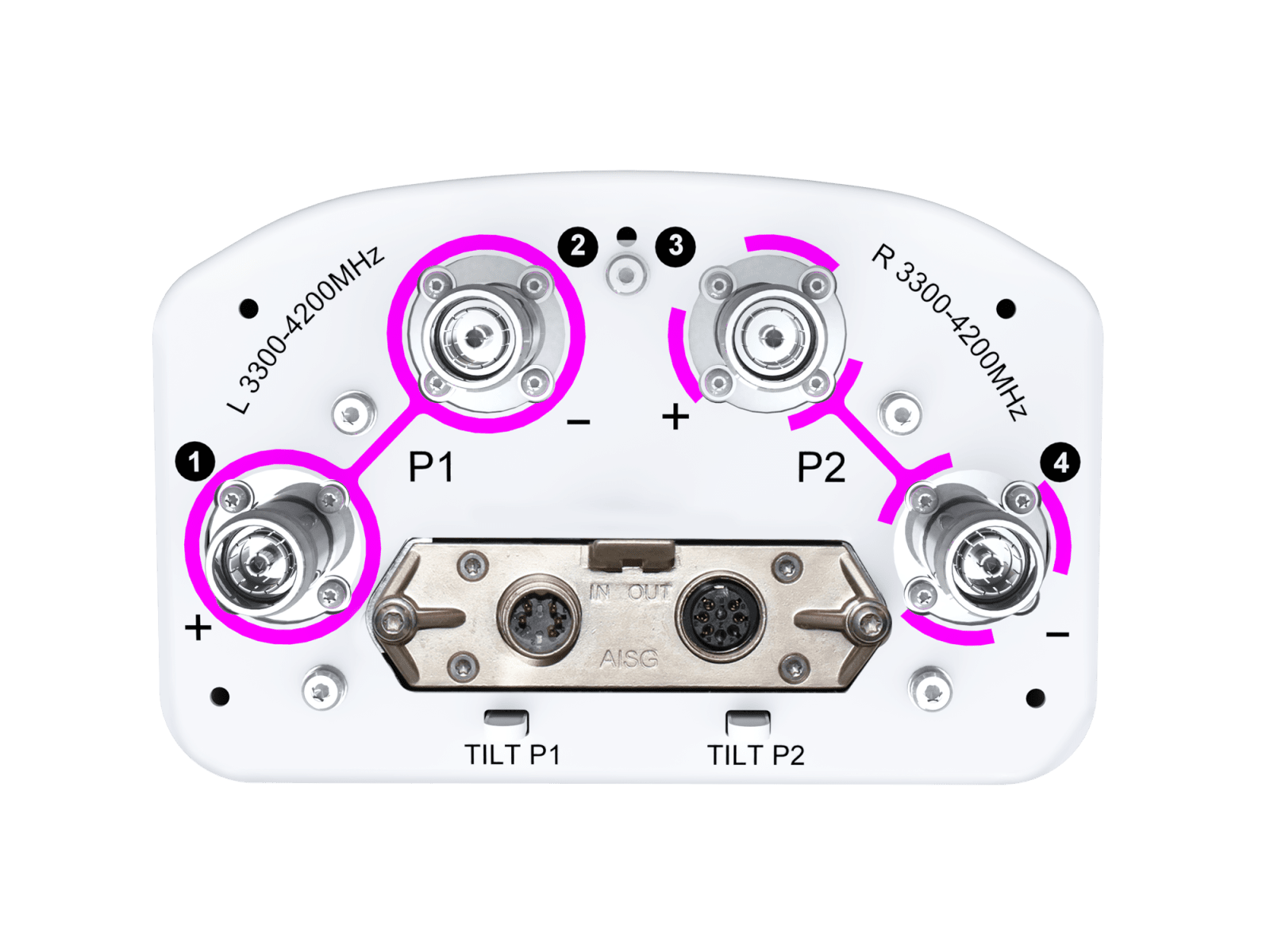

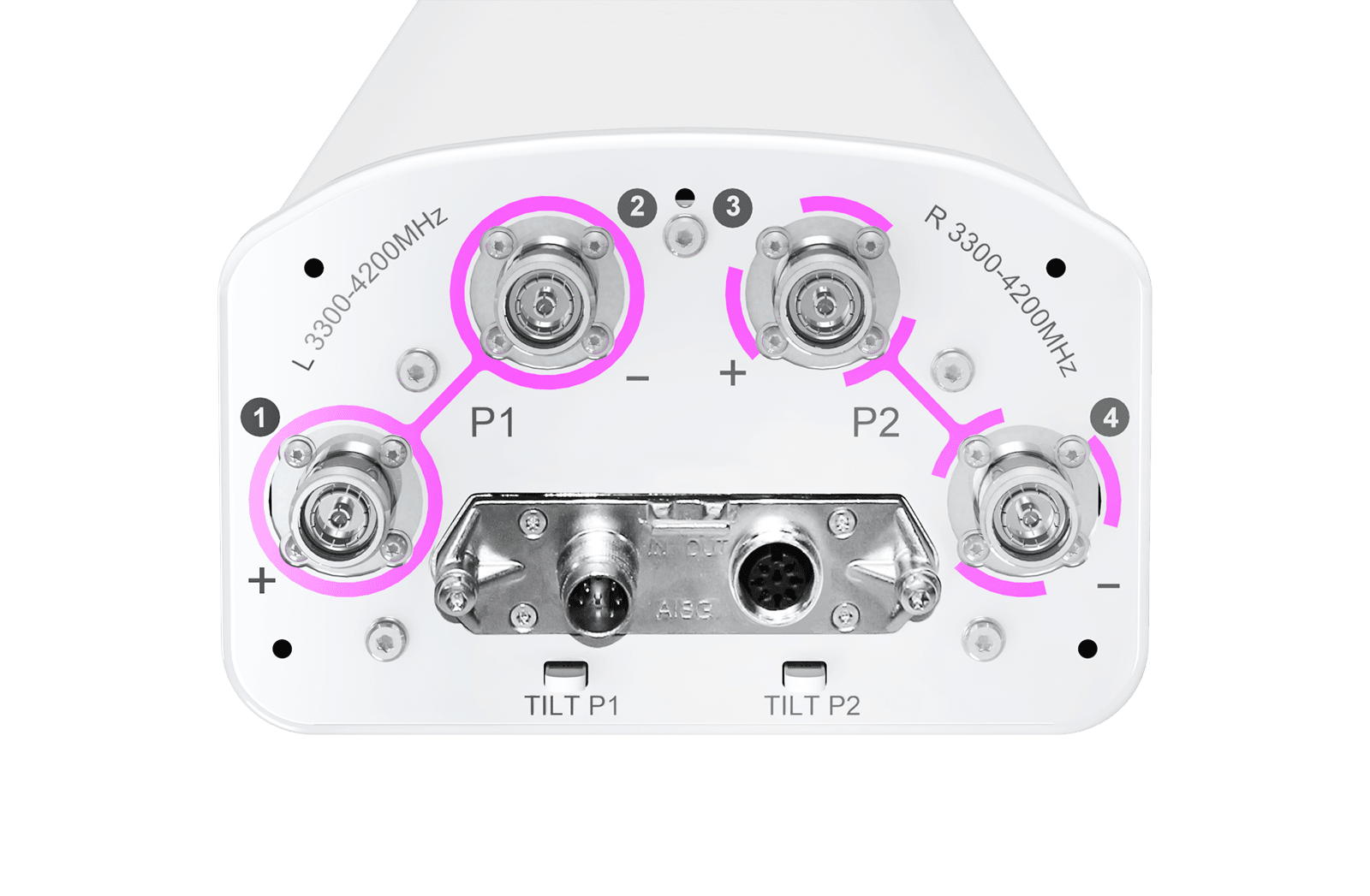

| Connector Type | 4 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | ASA |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 998 x 180 x 115 mm | 39.3 x 7.1 x 4.5 in |
| Packing Size (H x W x D) | 1148 x 308 x 216 mm | 45.2 x 12.1 x 8.5 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 157 N | 35 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 3300-4200 |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | 70-1 | 6.5 kg / 14.3 lb | 0-10 |
