Antenna frequency: 12 x (1695-2690) MHz
3dB azimuth beamwidth: 10 °
Gain: 22.0 dBi
Electrical downtilt: Fixed 6 °

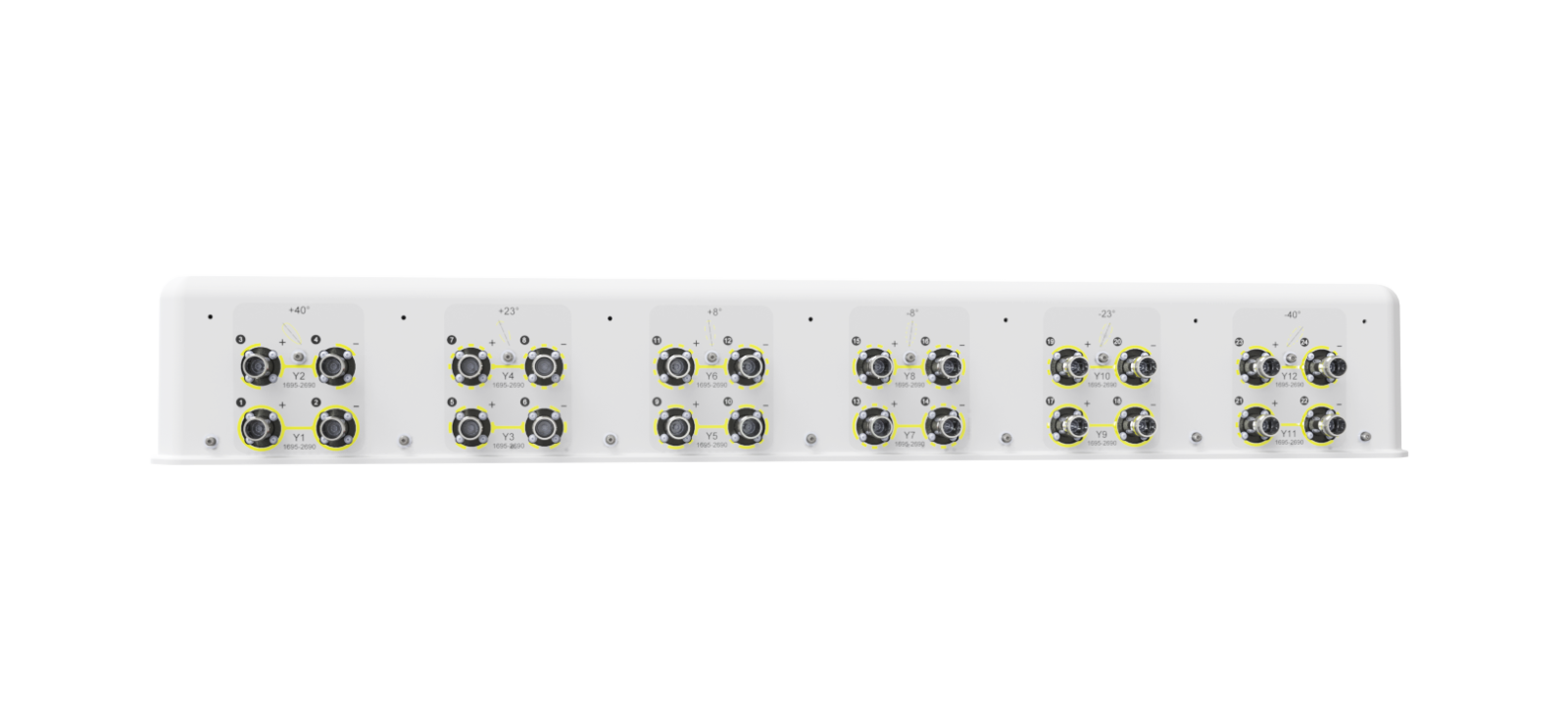

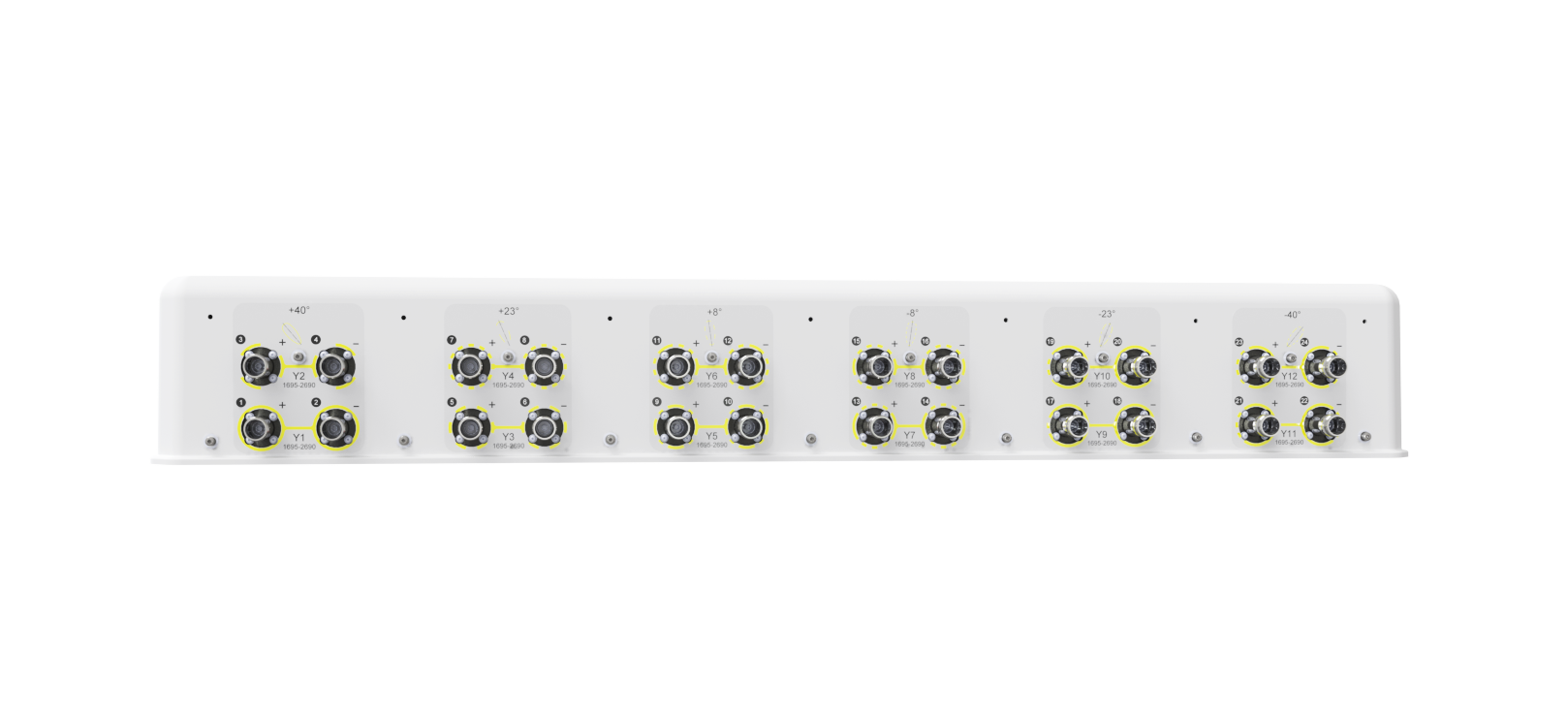

Connector: 24 x 4.3-10 female
Dimension: 1031 x 1097 x 156 mm
Status of product: general available

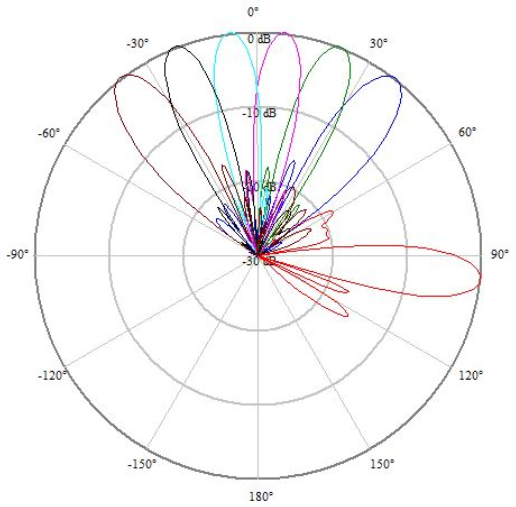

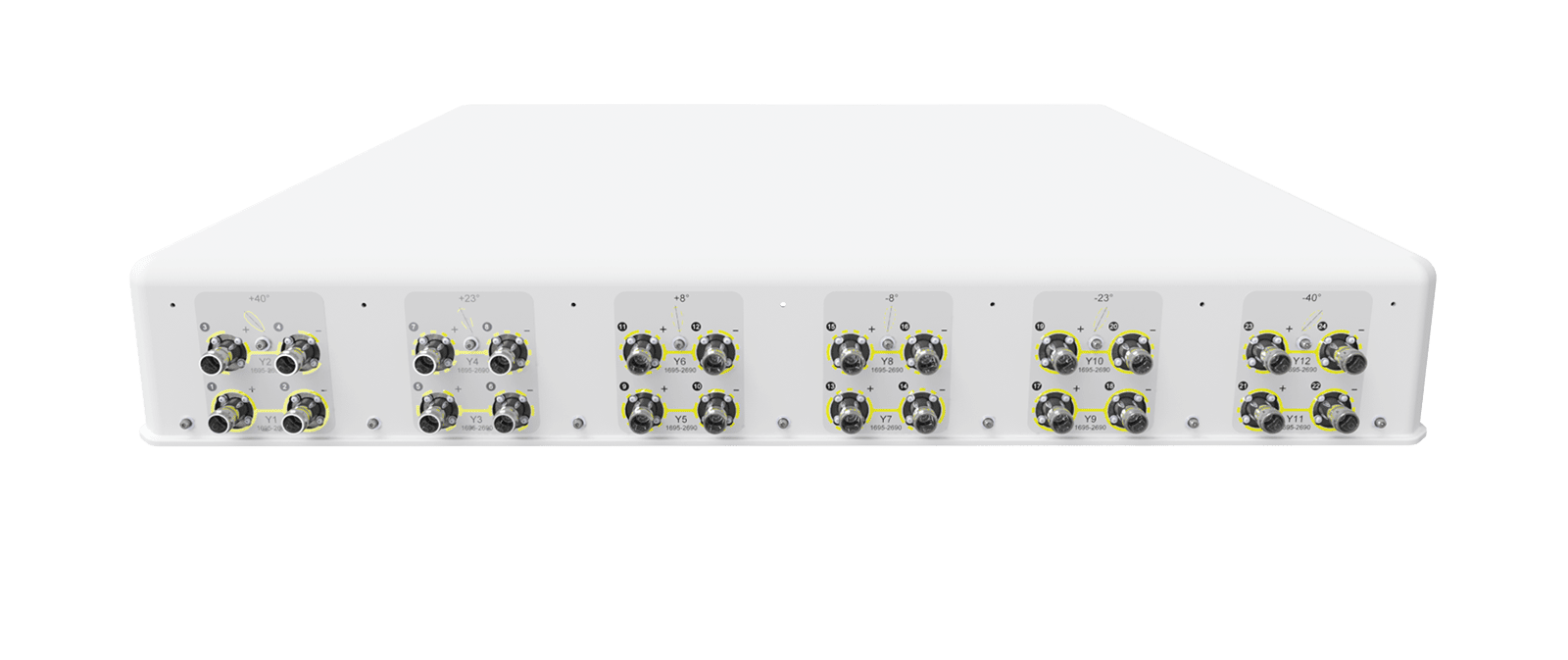

Dual Hexagon Beam Antenna
Fixed Electrical Tilt
| Frequency | 12 × (1695-2690) MHz |
| Gain | 22.0 dBi |
| 3dB Azimuth Beamwidth | 10 ° |
| Electrical Downtilt | Fixed 6 ° |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Beam Isolation | > 15 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 24 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 1031 x 1097 x 156 mm | 40.6 x 43.2 x 6.1 in |
| Packing Size (H x W x D) | 11230 x 1235 x 303 mm | 48.4 x 48.6 x 11.9 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1428 N | 321 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| 1695-2690 |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg | 0-12 |

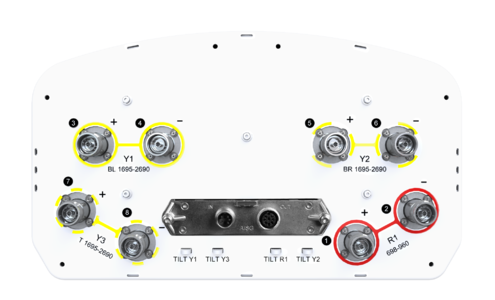

Antenna frequency: 698-960 + 3 x (1695-2690)MHz
.png)

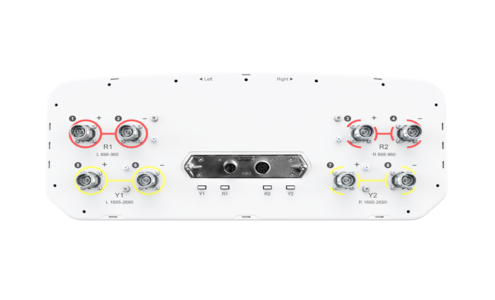

Antenna frequency: 2×(698-960) + 2×(1695-2690) MHz

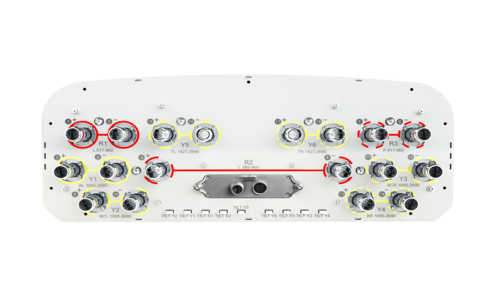

Antenna frequency:(617-862) +(880-960) +(617-960) + 2 x (1427-2690) + 4 x (1695-2690) MHz
