Operating frequency up to 4GHz
Good VSWR and PIM performance
RoHS compliance and halogen free
Outdoor application, UV resistance

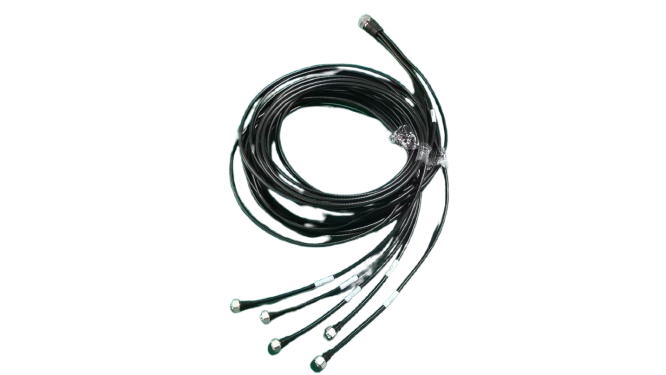

PROSE cluster jumper adopts a unified integrated harness structure, effectively improving wiring efficiency and system stability, and achieving neat layout and high-density interconnection in communication equipment rooms and base stations.
With excellent impedance consistency, low insertion loss and reliable shielding performance, these products can provide stable and high-quality signal transmission for communication systems and various intensive connection scenarios.
| Connector1 |
MQ5 male |
|
| Connector2 | 4.3-10 male | |
| Cable | 1/3" super flexible, PE | |
| Bending Protection | Molding | |
| Label | Wrap sticker, waterproof | |
| Characteristics Impedance |
50 Ω |
||
| Frequency | 0 - 4 GHz | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Dielectric Withstanding Voltage | 1000 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | 0.26*L+ 0.20dB @3GHz | ||
| 0.30*L+ 0.22dB @4GHz | |||
| VSWR | DC-3.0GHz | ≤1.15 | |
| 3.0-4.0GHz | ≤1.20 | ||
| Intermodulation, 3rd Order, @1800MHz, 2x43dBm | ≤-155 dBc | ||
| Cable Tensile Resistance |
≥450 N |
||
| Min.Bending Radius | 45 mm, multiple times | ||
| Torque Proof Recommend | MQ5 Connector | 25 to 30 N.m | |
| 4.3-10 Connector | 5 to 8 N.m | ||
| Working Temperature |
-40 to +85 ℃ |
|
| IP Protection | IP68 | |
| RoHS | Compliance | |
|
Frequency (MHz)
|
Attenuation (dB/
|
|
800
|
0.131 |
| 890 | 0.139 |
|
1000
|
0.147 |
|
1800
|
0.199 |
|
2000
|
0.210 |
|
2200
|
0.220 |
|
2500
|
0.236 |
|
2600
|
0.241 |
|
3000
|
0.259 |
|
3500
|
0.281 |
|
4000
|
0.305 |
.png)
RF Jumper 1/2" Flexible, DIN Male Angled to N Male Straight, Heavy Duty, CPR B2ca-s1a,d0,a1
.png)

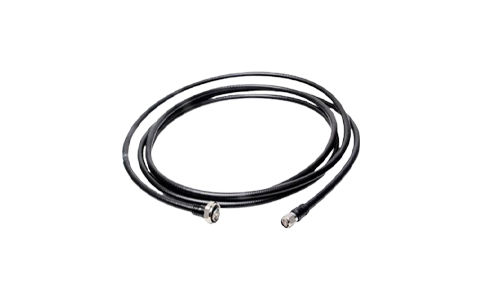

RF Jumper 1/2" Super Flexible, 4.3-10 Male Straight to 4.3-10 Male Straight, Heavy Duty, CPR B2ca-s1a,d0,a1
