Operating frequency up to 4GHz
Good VSWR and PIM performance
RoHS compliance and halogen free
Weatherproof Boot, Birdprof Shell Pre-assembled
Outdoor application, UV resistance

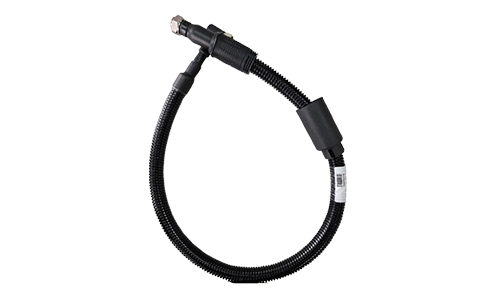

PROSE birdproof RF jumper with external corrugated pipe features excellent electrical performance, low intermodulation, stable impedance, low insertion loss, outstanding waterproof & dustproof performance, and effective anti-pecking, weatherproof & compression-resistant protection, effectively ensuring efficient and reliable signal transmission.
Widely used in harsh outdoor environments for communication systems and broadcast and television systems, it can provide safe and stable connection support for various RF cables, equipment and antenna feeder systems.
| Connector1 |
DIN male |
|
| Connector2 | DIN male | |
| Cable | 1/2" super flexible, PE | |
| Weatherproof Boot | Silicone rubber boot | |
| Birdproof Shell | PA66 pipe | |
| Bending Protection | Molding | |
| Label | Wrap sticker, waterproof | |
| Characteristics Impedance |
50 Ω |
||
| Frequency | 0 - 4 GHz | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Dielectric Withstanding Voltage | 2500 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | Cable attenuation + Connection loss (0.1*√F GHz) dB | ||
| Return Loss | DC-1.0GHz | ≤-28 dB | |
| 1.0-2.2GHz | ≤-26 dB | ||
| 2.2-3.0GHz | ≤-23 dB | ||
| 3.0-3.8GHz | ≤-22 dB | ||
| Intermodulation, 3rd Order, @900MHz, 2x43dBm | ≤-160 dBc | ||
| Cable Tensile Resistance |
≥450 N |
||
| Min.Bending Radius | 35 mm | ||
| Torque Proof Recommend | DIN Connector | 25 to 30 N.m | |
| Working Temperature |
-40 to +85 ℃ |
|
| IP Protection | IP68 | |
| RoHS | Compliance | |
|
Frequency (MHz)
|
Attenuation (dB/
|
|
450
|
7.59
|
|
800
|
10.40
|
|
900
|
11.20
|
|
1000
|
11.80
|
|
1800
|
16.00
|
|
2000
|
17.20
|
|
2200
|
18.20
|
|
2500
|
19.50
|
|
2700
|
20.50
|
|
3000
|
21.90
|
|
3500
|
22.97
|
|
3600
|
23.81
|
|
3800
|
24.46
|
|
4000
|
25.20
|
