Operating frequency up to 4GHz
Good VSWR and PIM performance
RoHS compliance and halogen free
Weatherproof boot pre-assembled
Outdoor application, UV resistance
PROSE RF jumper with waterproof boot features excellent electrical performance, low intermodulation, stable impedance, low insertion loss, and outstanding waterproof & dustproof performance, effectively ensuring efficient and reliable signal transmission.
Widely used in outdoor communication systems and base stations, it can provide safe and stable connection support for various RF cables, equipment and antenna feeder systems.

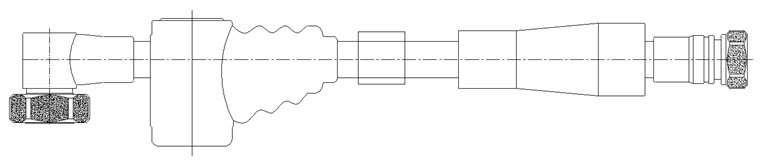

| Connector1 | DIN male angled | |
| Connector2 | 4.3-10 male | |
| Cable | 1/2" flexible cable, PE | |
| Weatherproof Boot | Silicone rubber boot | |
| Bending Protection | Molding | |
| Label | Wrap sticker, waterproof | |
| Characteristics Impedance | 50 Ω | ||
| Frequency | 0-4 GHz | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Dielectric Withstanding Voltage | 2500 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | Cable attenuation + Connection loss (0.1*√F GHz) dB | ||
| Return Loss | DC-1.0GHz | ≤-28 dB | |
| 1.0-2.2GHz | ≤-26 dB | ||
| 2.2-3.0GHz | ≤-23 dB | ||
| 3.0-3.8GHz | ≤-22 dB | ||
| Intermodulation, 3rd Order, @900MHz, 2x43dBm | ≤-160 dBc | ||
| Cable Tensile Resistance | ≥450 N | ||
| Min.Bending Radius, single | 70 mm | ||
| Torque Proof Recommend | DIN Connector | 25 to 30 N.m | |
| 4.3-10 Connector | 5 to 8 N.m | ||
| Working Temperature | -40 to +85 ℃ | |
| IP Protection | IP68 | |
| RoHS | Compliance | |
|
Frequency (MHz)
|
Attenuation (dB/100m)
|
|
450
|
4.70
|
|
800
|
6.35
|
|
900
|
6.75
|
|
1000
|
7.20
|
|
1800
|
9.90
|
|
2000
|
10.50
|
|
2200
|
11.10
|
|
2500
|
11.95
|
|
2700
|
12.47
|
|
3000
|
13.20
|
|
3500
|
14.65
|
|
3600
|
14.80
|
|
3800
|
15.32
|
|
4000
|
15.76
|
