Operating frequency up to 4GHz
Good VSWR and PIM performance
RoHS compliance and halogen free
Indoor application, flame retardant, CPR B2ca-s1a,d0,a1
PROSE RF jumper features excellent electrical performance, low intermodulation, stable impedance and low insertion loss, effectively ensuring efficient and reliable signal transmission.
Widely used for connection between RF equipment and antenna feeder systems, it can provide stable and convenient signal connection for communication and broadcast systems.

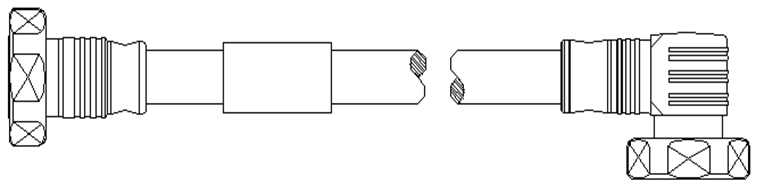

| Connector1 | DIN male | |
| Connector2 | DIN male angled | |
| Cable | 1/2" super flexible cable, FRNC/LSZH CPR B2ca-s1a,d0,a1 | |
| Bending Protection | Molding | |
| Label | Wrap sticker, waterproof | |
| Characteristics Impedance | 50 Ω | ||
| Frequency | 0 - 4 GHz | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Dielectric Withstanding Voltage | 2500 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | Cable attenuation + Connection loss (0.1*√F GHz) dB | ||
| Return Loss | DC - 1.0GHz | ≤-28 dB | |
| 1.0 - 2.2GHz | ≤-26 dB | ||
| 2.2 - 3.0GHz | ≤-23 dB | ||
| 3.0 - 3.8GHz | ≤-22 dB | ||
| Intermodulation, 3rd Order, @700MHz/1800MHz/2600MHz, 2x43dBm | ≤-160 dBc | ||
| Cable Tensile Resistance | ≥750 N | ||
| Min.Bending Radius, single | 25 mm | ||
| Torque Proof Recommend | DIN Connector | 25 to 30 N.m | |
| Working Temperature | -40 to +85 ℃ | |
| IP Protection | IP68 | |
| RoHS | Compliance | |
|
Frequency (MHz)
|
Attenuation (dB/100m), typical
|
|
450
|
7.59
|
|
800
|
10.40
|
|
900
|
11.20
|
|
1000
|
11.80
|
|
1800
|
16.00
|
|
2000
|
17.20
|
|
2200
|
18.20
|
|
2500
|
19.50
|
|
2700
|
20.50
|
|
3000
|
21.90
|
|
3500
|
22.97
|
|
3600
|
23.81
|
|
3800
|
24.46
|
|
4000
|
25.20
|
