Frequency up to 2.7GHz
Good VSWR and PIM performance
Easy to installation to different cables
PROSE RF connector adopts precision machining and reliable impedance matching design, effectively improving connection stability and signal transmission quality.
Widely used in communication systems, broadcast and television systems, it can provide safe and stable connection support for various RF cables, equipment and antenna feeder systems.
| Characteristics Impedance | 50 Ω | ||
| Frequency | 0 - 2.7 GHz | ||
| Insulation Resistance | ≥5 GΩ | ||
| Dielectric Withstanding Voltage | 2500 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | 0.05*√F GHz dB | ||
| Return Loss | DC - 1.0GHz | ≤-30 dB | |
| 1.0 - 2.2GHz | ≤-28 dB | ||
| 2.2 - 2.7GHz | ≤-26 dB | ||
| DTF | DC - 1.0GHz | ≤-35 dB | |
| 1.0 - 2.7GHz | ≤-32 dB | ||
| Intermodulation, 3rd Order, @900MHz&1800MHz, 2x43dBm | ≤-160 dBc | ||

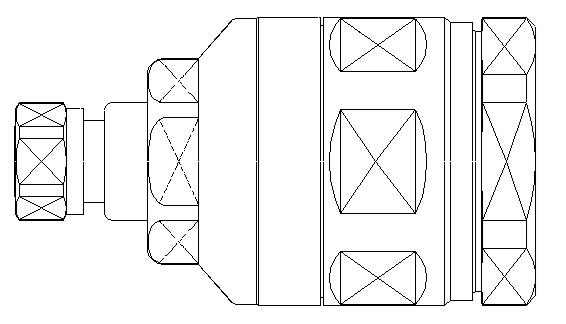

| Interface | 4.3-10 male | |
| Suitable Cable | 1-5/8" coaxial cable | |
| Mating Cycles | ≥100 times | |
| Coupling Nut Retention | ≥450 N | |
| Connector Torque Proof Recommend | 5 to 8 N.m | |
| Working Temperature | -45°C to +85°C | |
| Weather standard | IEC 60068 40/085/21 | |
| Thermal shock | IEC 60068-2-14-Na | |
| Vibration | IEC 60068-2-6-Fc | |
| Shock | IEC 60068-2-27 | |
| IP Protection | IP68, mated pair | |
| RoHS | Compliant | |

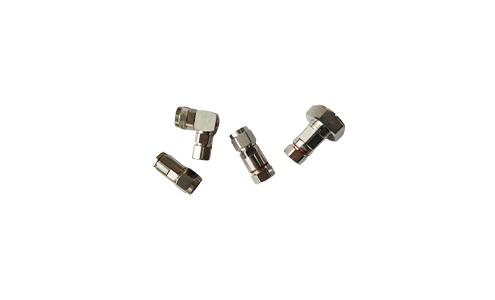

RF Coaxial Connector
