50Ω impedance
Field installation
Good VSWR and PIM performance

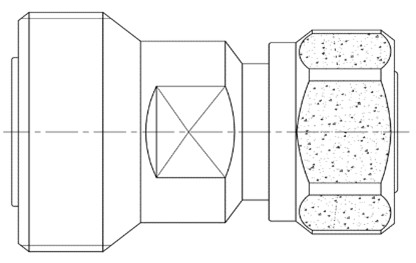

PROSE RF adapters enable stable conversion and connection between different types of RF interfaces, featuring low insertion loss, good impedance matching and reliable performance, widely used in communication system equipment interconnection and signal transmission.
| Characteristics Impedance | 50 Ω | ||
| Frequency | 0 - 4 GHz | ||
| Insulation Resistance | ≥5 GΩ | ||
| Dielectric Withstanding Voltage | 2500 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | 0.1*√F GHz dB | ||
| Return Loss | DC - 1.0GHz | ≤-30 dB | |
| 1.0 - 2.2GHz | ≤-28 dB | ||
| 2.2 - 2.7GHz | ≤-26 dB | ||
| 2.7 - 3.8GHz | ≤-24 dB | ||
| Intermodulation, 3rd Order, @900MHz, 2x43dBm | ≤-160 dBc | ||
| Interface | DIN female | |
| 4.3-10 male | ||
| Mating Cycles | ≥500 times @DIN | |
| ≥100 times @4.3-10 | ||
| Connector Torque Proof Recommend | 25NM @DIN | |
| 5NM @4.3-10 | ||
| Working Temperature | -45°C to +85°C | |
| IP Protection | IP68, mated pair | |
| RoHS | Compliant | |
_495x300(17).jpg)
RF Coaxial Connector For Coaxial Leaky Cable
_495x300(3).jpg)
RF Coaxial Connector
_495x300(29).jpg)

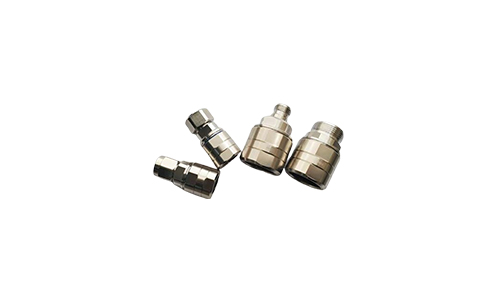

RF Coaxial Connector
