Frequency up to 3.8GHz
Good VSWR and PIM performance
Field installation
PROSE RF connector for leaky cable adopts professional structural design and reliable impedance matching, effectively ensuring stable connection and signal transmission performance of leaky cable systems.
Widely used in tunnels, subways, underground spaces and blind coverage areas in residential areas, it can provide safe and stable connection support for leaky cable systems.
| Characteristics Impedance | 50 Ω | ||
| Frequency | 0 - 3.8 GHz | ||
| Insulation Resistance | ≥5 GΩ | ||
| Dielectric Withstanding Voltage | 4000 V mrs | ||
| Operating Voltage | 500 V mrs | ||
| Insertion Loss | ≤0.12dB @ DC-3.8 GHz | ||
| VSWR | DC - 1.0GHz | ≤1.10 | |
| 1.0 - 2.7GHz | ≤1.15 | ||
| 2.7 - 3.8GHz | ≤1.20 | ||
| Intermodulation, 3rd Order, @1800MHz, 2x43dBm | ≤-158 dBc | ||

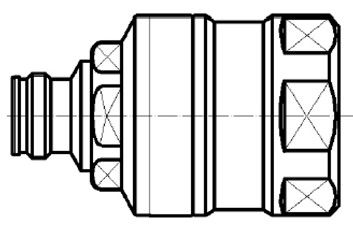

| Interface | 4.3-10 female | |
| Suitable Cable | 1-1/4" coaxial leaky cable | |
| Mating Cycles | ≥500 times | |
| Connector Torque Proof Recommend | 5 to 8 N.m | |
| Working Temperature | -45°C to +85°C | |
| Shock Test Method | MIL STD 202, method 213, condition D | |
| Vibration Test Method | MIL STD 202, method 204, condition A | |
| RoHS | Compliant | |
_495x300(28).jpg)

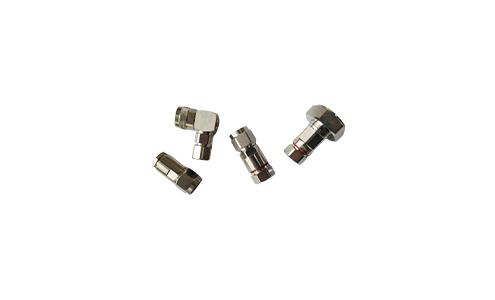

RF Coaxial Connector
.jpg)
RF Coaxial Connector
_495x300(15).jpg)

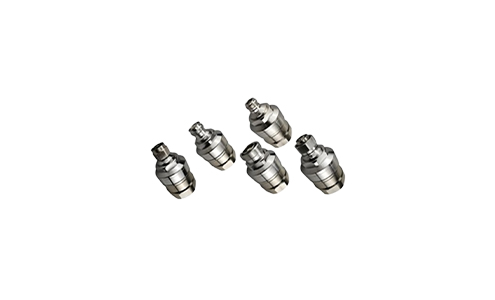

RF Coaxial Connector For Coaxial Leaky Cable
_495x300(27).jpg)

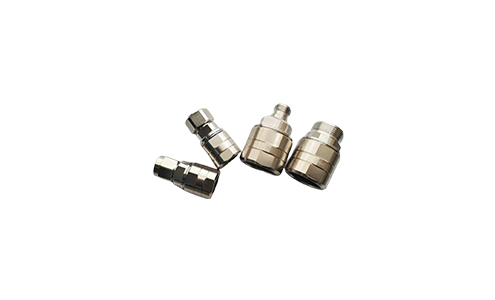

RF Coaxial Connector
