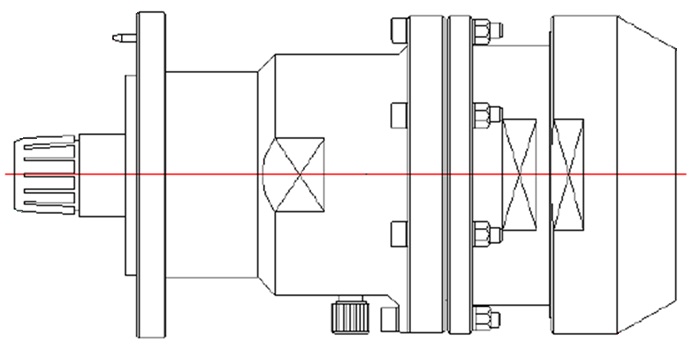

EIA connector for air-insulation coaxial cable
With coupling element
Field installation
PROSE RF connectors for air dielectric cables feature stable impedance matching, low insertion loss and reliable connection. Designed for air-insulated feeders, they ensure efficient signal transmission in broadcast and communication systems.
|
Nominal Characteristic Impedance
|
50 Ω
|
|
|
Insulation Resistance
|
≥10000 MΩ
|
|
|
Voltage Withstanding
|
10000 V
|
|
|
VSWR
|
DC - 800MHz |
≤1.05
|
| Durability, (Mating Cycles) | ≥500 | |
| Separating Force | ≤100 N | |
| Operating Temperature | -40°C to +85°C | |
| Relative Humidity | 90% to 95% (temperature 40°C±2°C) | |
| Atmospheric Pressure | 70kpa to 106kpa | |
_495x300(5).jpg)

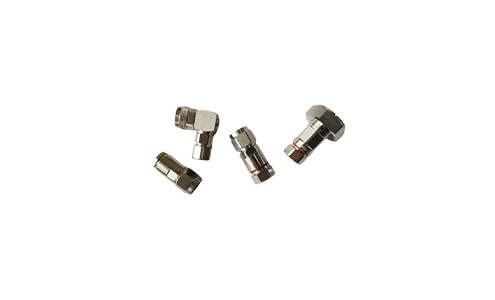

RF Coaxial Connector
.jpg)

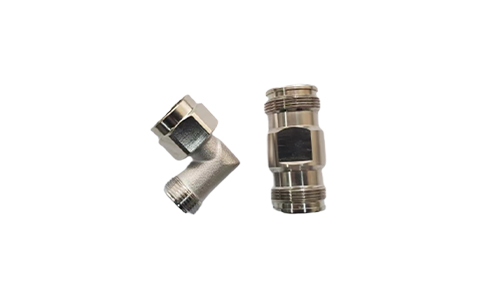

RF Adapter
.jpg)

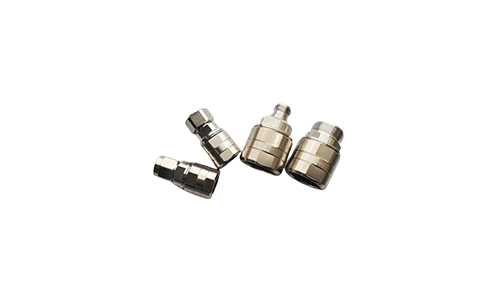

RF Coaxial Connector
