Operating frequency range: DC~1000MHz
Without coupling element
Field installation
PROSE EIA adapter features excellent electrical performance, low intermodulation, stable impedance and low insertion loss, effectively ensuring efficient and reliable signal transmission.
Widely used in outdoor communication systems, broadcast and television systems, it can provide safe and stable connection support for various RF cables, equipment and antenna feeder systems.
|
Nominal Characteristic Impedance
|
50 Ω
|
|
|
Insulation Resistance
|
≥10000 MΩ
|
|
|
Voltage Withstanding, 50Hz/1min
|
2000 V
|
|
|
VSWR
|
DC - 1000MHz |
≤1.05
|
| Durability, (Mating Cycles) | ≥100 | |
| Operating Temperature | -40°C to +85°C | |
| Relative Humidity | 90% to 95% (temperature 40°C±2°C) | |
| Atmospheric Pressure | 70kpa to 106kpa | |
.jpg)

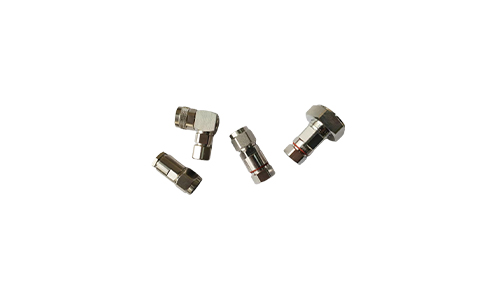

RF Coaxial Connector
.jpg)
RF Coaxial Connector
_495x300.jpg)

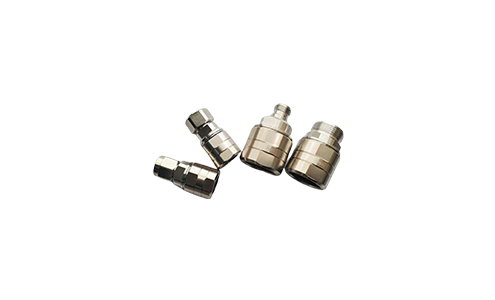

RF Coaxial Connector
_495x300(3).jpg)

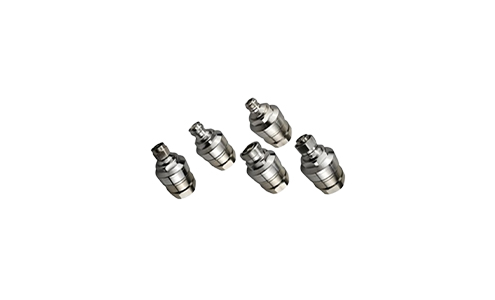

RF Coaxial Connector For Coaxial Leaky Cable
