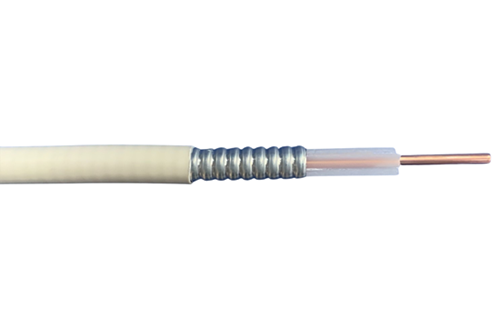

1/2" plenum rated coaxial cable
Corrugated aluminum outer conductor
White PVC jacket
This product can be used in the plenum space of a building
Operating frequency: DC to 6000 MHz
PROSE CMP-rated air insulation coaxial cable meets strict Plenum safety standards, featuring excellent flame-retardant, low-smoke and non-toxic properties, effectively ensuring high safety for indoor wiring.
Widely used in indoor DAS, data centers, building ventilation spaces and other high-safety environments, it is able to provide stable and reliable signal transmission for indoor communication systems.
| Inner Conductor Material | Copper-Clad Aluminum Wire | |
| Dielectric Material | PE spline | |
| Outer Conductor Material | Corrugated Aluminum | |
| Jacket Material | White PVC Compound | |
| Nominal Size | 1/2" | |
| Inner Conductor OD. | Ø 4.8 mm | |
| Dielectric OD. | Ø 11.7 mm | |
| Outer Conductor OD. | Ø 13.85 mm | |
| Jacket OD. | Ø 15.7 mm | |
| Reference standard | IEC 61196-1 | |
| Impedance | 50±2 Ω | |
| Mutual Capacitance (reference) | 75.45 pF/m | |
| Velocity | 88 % | |
| Operating Frequency | 1 - 8800 MHz | |
| Peak Power Rating | 40 kW | |
| Dielectric Strength (1 minute) | 4000 V (No crack) | |
| Jacket Spark Test Voltage | 5 kV | |
| Inductance | 0.19 μH/m | |
| Insulation Resistance | ≥ 10000 MΩ·km | |
| Min. Bending Radius (single) | 70 mm | |
| Min. Bending Radius (repeated) | 127 mm | |
| Number of Bends, Minimum | 15 | |
| Max Tensile Force | 79 kg | |
| Flat Plate Crush Resistance | 1.429 kg/mm | |
| Bending Moment | 6.779 N.m | |
| Approx. Weight | 200 kg/km | |
| Operating Temperature Range | -20°C to +80°C | |
| Installation Temperature Range | -5°C to +60°C | |
| Storage Temperature Range | -20°C to +80°C | |
| RoHS | Compliance | |
| Fire resistance test method | CMP,ETL,UL444,NFPA 262 | |
| Attenuation, Ambient Temperature | 20°C | |
| Average Power, Ambient Temperature | 40°C | |
| Average Power, Inner Conductor Temperature | 100°C | |
| VSWR (Return Loss) | 700 ~ 894 MHz | ≤1.20 (-20.8dB) | |
| 806 ~ 960 MHz | ≤1.20 (-20.8dB) | ||
| 1700 ~ 2700 MHz | ≤1.20 (-20.8dB) | ||
| 3300 ~ 4200 MHz | ≤1.25 (-19.1dB) | ||
| 5700 ~ 5900 MHz | ≤1.36 (-16.3dB) | ||
|
Frequency (MHz)
|
Typical Attenuation (dB/100m)
|
Average Power (kW)
|
|
450
|
5.134
|
1.49
|
|
700
|
6.583
|
1.16
|
|
800
|
7.105
|
1.07
|
|
894
|
7.574
|
1.01
|
|
960
|
7.892
|
0.97
|
|
1000
|
8.081
|
0.94
|
|
1500
|
10.256
|
0.74
|
|
1800
|
11.439
|
0.67
|
|
2000
|
12.192
|
0.63
|
|
2200
|
12.920
|
0.59
|
|
2500
|
13.975
|
0.55
|
|
2700
|
14.656
|
0.52
|
|
3000
|
15.649
|
0.49
|
|
3400
|
16.928
|
0.45
|
|
3800
|
18.164
|
0.42
|
|
4000
|
18.768
|
0.41
|
|
5000
|
21.671
|
0.35
|
|
6000
|
24.420
|
0.31
|
|
1. Typical attenuation at 20°C cable temperature. Maximum value + 5%.
2. Average power rating at 40°C (104°F) ambient temperature.
|
||
.jpg)

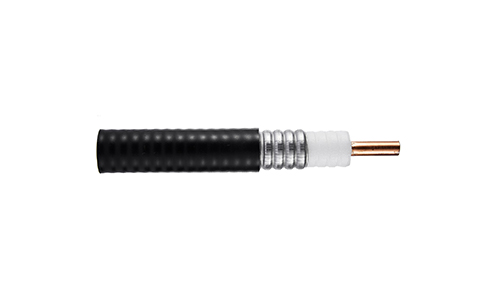

Feeder Cable 7/8", Low Loss, Aluminum Outer Conductor, FRNC/LSZH Jacket
.jpg)
Feeder Cable 1/4", Super Flexible, Copper Outer Conductor, PE Jacket
_495x300(3).jpg)

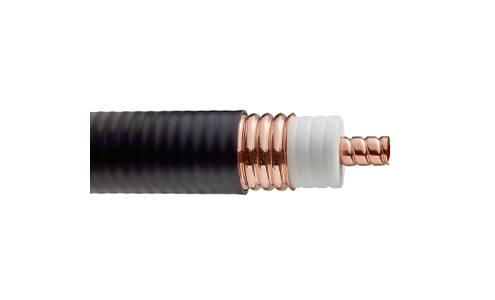

Feeder Cable 1-1/4", Low Loss, Copper Outer Conductor, FRNC/LSZH Jacket
.jpg)

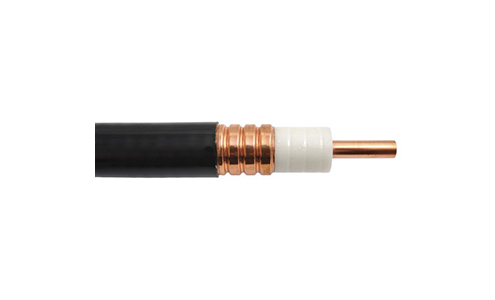

Feeder Cable 7/8", Copper Outer Conductor, FRNC/LSZH Jacket, Heavy Duty, IEC 60332-3-24
